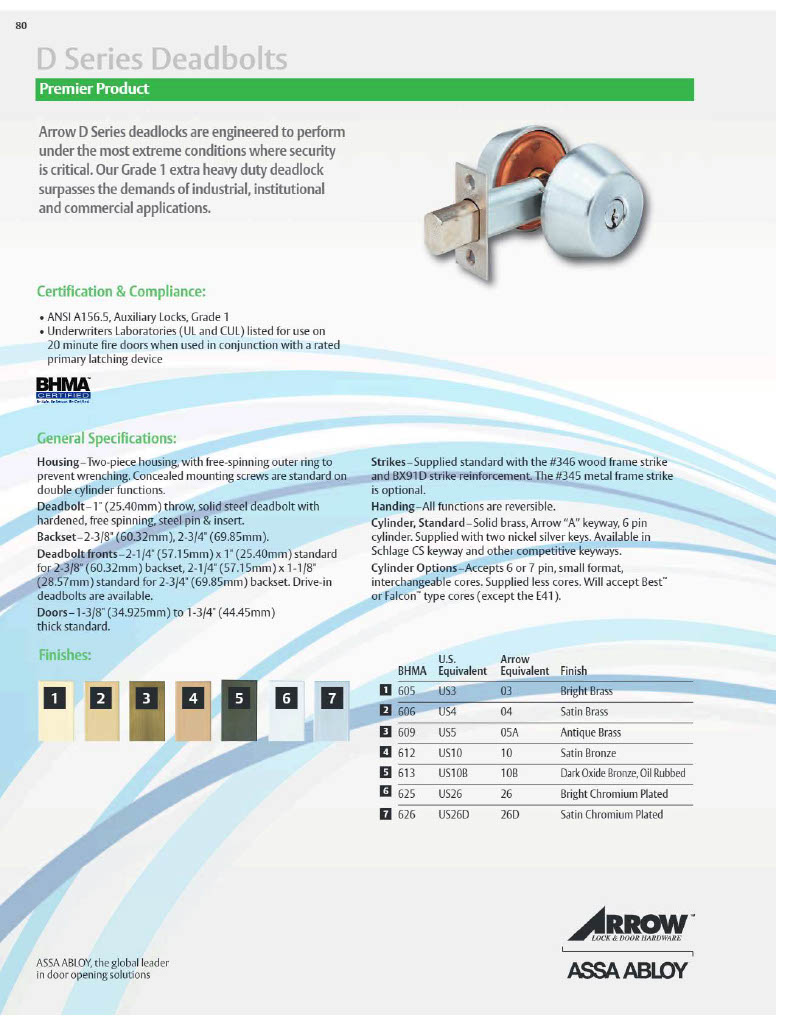

Product Details
Arrow D63 Cylinder x Blank Deadbolt*-ANSI-*E0161

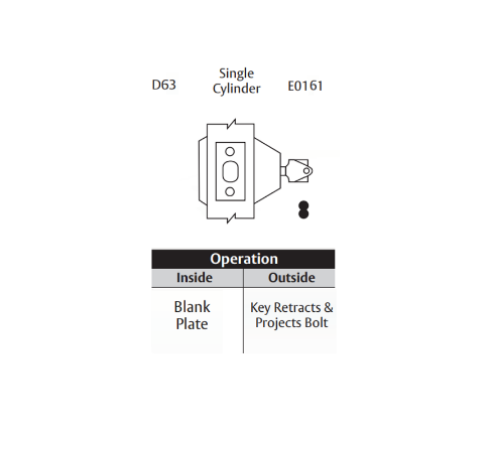

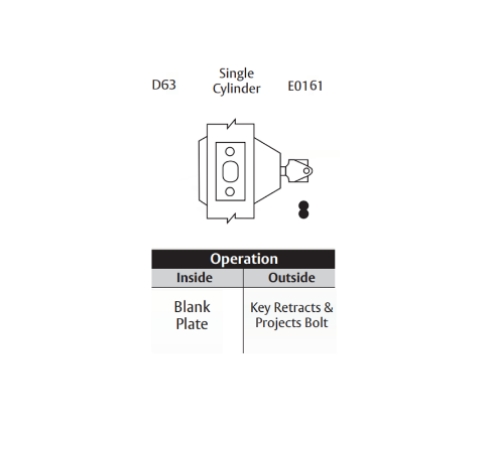

Throw or retract bolt by key one side, blank plate opposite side.
Housing:Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions.
Deadbolt:1" (25.40 mm), solid steel deadbolt throw with hardened steel pin.
Backset:2-3/8" (60.32 mm), 2-3/4" (69.85 mm).
Deadbolt fronts:2-1/4" (57.15 mm) x 1" (25.40 mm) standard for 2-3/8" (60.32 mm) backset, 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm) standard for 2-3/4" (69.85 mm) backset. Drive-in deadbolts are available.
Doors:1-3/8" (34.925 mm) to 1-3/4" (44.45 mm) thick standard.
Strikes:Supplied standard with two strikes. #345security strike for steel frame. #346security strike for wood frame.
Handing:All functions are reversible.
Cylinder, Standard:Solid brass, ArrowAkeyway, drilled for 6 pins, pinned to 5. Supplied with two keys.
Cylinder Options:Accepts 6 or 7 pin interchangeable cores. Supplied less cores. Will accept Bestor Falcontype cores. ASSA high security cylinders are available.
Finish:
03 - Bright Brass (US3)
04 - Satin Brass (US4)
05A - Antique Brass (US5)
10 - Satin Bronze (US10)
10B - Dark Oxide Bronze, Oil Rubbed (US10B)
26 - Bright Chromium Plated (US26)
26D - Satin Chromium Plated (US26D)
Model:D633, D634, D635A, D6310, D6310B, D6326, D6326D, D63IC3, D63IC4, D63IC5A, D63IC10, D63IC10B, D63IC26, D63IC26D.
