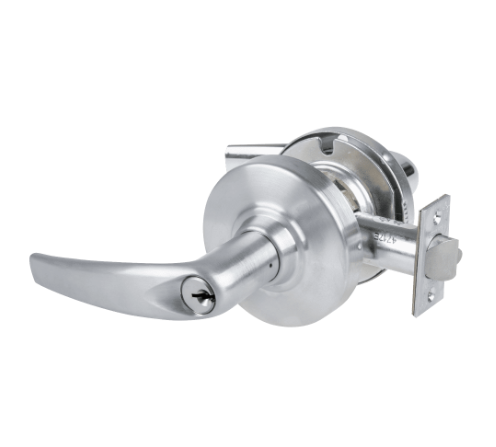

Schlage ND98 Grade 1 Classroom Security Lock, Non-Handed

Schlage ND98 - Vandlgard Classroom Security Lock

Classroom Security Lock -Vandlgard

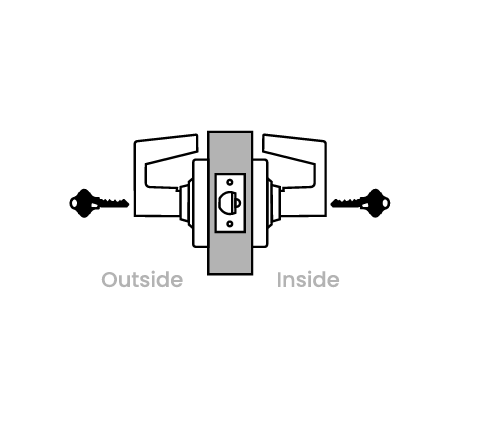

Lever with key cylinder both sides; deadlatch

In unlocked state latch is retracted by either lever

Outside lever is made inoperative by rotating key in either lever 180 degrees counterclockwise and returning to start position; Vandlgard allows outside lever to rotate freely when locked

Unlock outside lever by rotating key 180 degrees clockwise in either lever and returning to start position

Inside lever always free for immediate egress

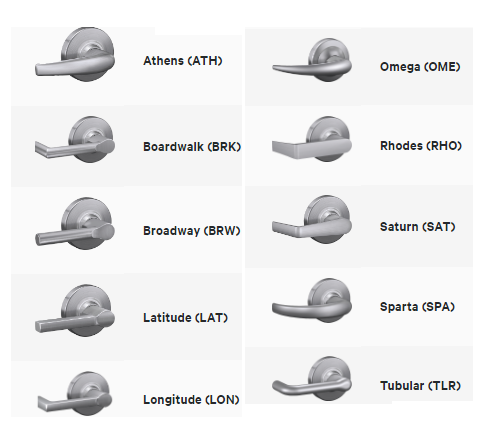

Lever Styles:Athens (ATH), Rhodes (RHO), Tubular (TLR), Sparta (SPA), Omega (OME).

Finishes:605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.   Keying:6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.    The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset:2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt:Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).   Strikes:ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike

ND98PD -6-Pin conventional (standard)

ND98LD -Conventional - Less Cylinder

ND98BD -Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND98JD -Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Model:Schlage, ND98, ND98PDATH, ND98PDRHO ND98PDTLR, ND98PDSPA, ND98PDOME, ND98PDATH626, ND98PDRHO626, ND98PDTLR626, ND98PDSPA626, ND98PDOME626,

ND98BDATH, ND98BDRHO ND98BDTLR, ND98BDSPA, ND98BDOME, ND98BDATH626, ND98BDRHO626, ND98BDTLR626, ND98BDSPA626, ND98BDOME626,ND98JDATH, ND98JDRHO ND98JDTLR, ND98JDSPA, ND98JDOME, ND98JDATH626, ND98JDRHO626, ND98JDTLR626, ND98JDSPA626, ND98JDOME626,ND98LDATH, ND98LDRHO ND98LDTLR, ND98LDSPA, ND98LDOME, ND98LDATH626, ND98LDRHO626, ND98LDTLR626, ND98LDSPA626, ND98LDOME626

ATH, RHO, TLR, SPA, OME, 605, 606, 612, 613, 619, 625, 626.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
