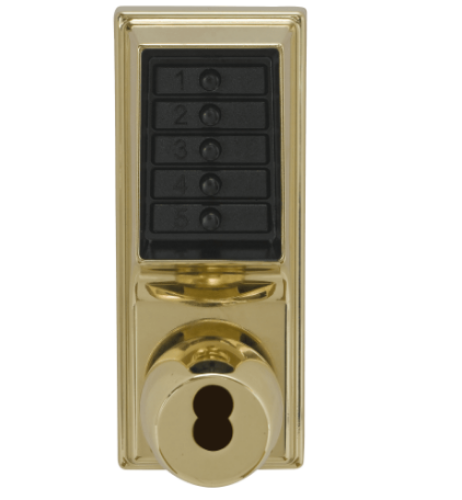

Dormakaba Simplex 1021S-03 Pushbutton Lock - Bright Brass - Schlage

Dormakaba *Simplex 1021S Pushbutton Lock, with Key Override,preparedfor*"Schlage" Core

**Cylindrical keyless Lock with Knob, Combination Entry and Key Override. Accepts Schlage Large Format IC Core, Core not included.

Features Include:

Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs

Vandal resistant, solid metal pushbuttons

Factory-handed for left hand doors; easily field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

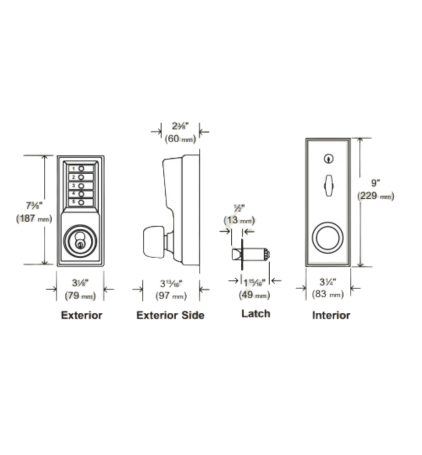

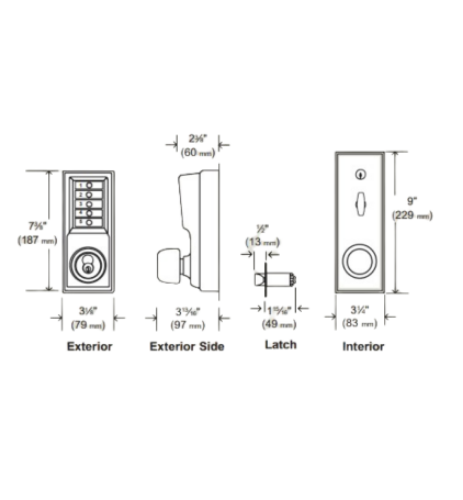

Backset: 2 3⁄4"(70 mm), 2 3⁄8"(60 mm)

Latch: 1⁄2"(13 mm) throw latch; 3⁄4"(19 mm) throw latch (optional)

Strike: Standard strike plate; ASA strike plate

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Operation Modes:

Combination Entry Only (model 1011)

Combination Entry and Passage (model 1031)

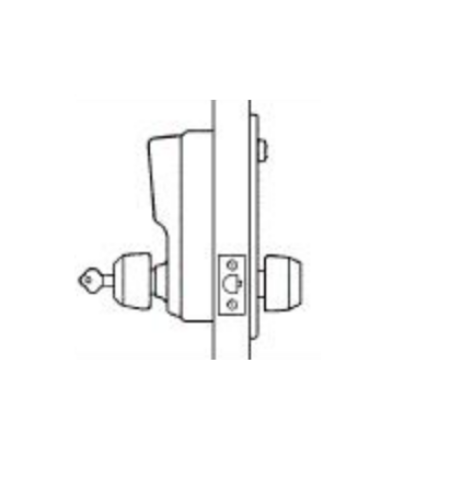

Combination Entry and Key Override (model 1021)

Combination Entry, Key Override and Passage (model 1041)

Passage option:(optional) Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key (included with all passage feature models)

Lockout option:(optional) Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only.

Model: Dormakaba , Dormakaba Ilco, Dormakaba Access, Simplex, 1021S, 1021S03, 1021S3, 1021SUS3, 1021S-03, 1021S-3, 1021S-US3, 1021S 03, 1021S 3, 1021S US3, 1021 S, 1021 S03, 1021 S3, 1021 SUS3, 1021 S-03, 1021 S-3, 1021 S-US3, 1021 S 03, 1021 S 3, 1021 S US3, 1021-S, 1021-S03, 1021-S3, 1021-SUS3, 1021-S-03, 1021-S-3, 1021-S-US3, 1021-S 03, 1021-S 3, 1021-S US3, 1021S-03-41, 605, Bright Brass
