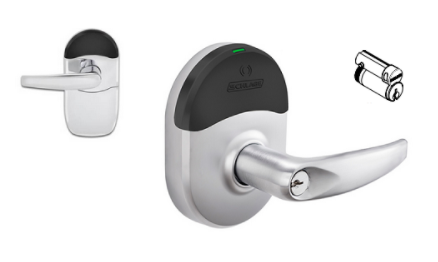

Schlage NDE80JD SPA 643E Wireless Storeroom Lock With Engage Technology - Accepts LFIC Core

Schlage NDE80JD Wireless Storeroom Lock With Engage Technology - Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Storeroom Lock with Vandlgard: Lockset is normally secure with outside lever disengaged. Valid credential or key momentarily unlocks door. Valid credential may be used to change to a passage or secured state. Inside lever always allows free egress.

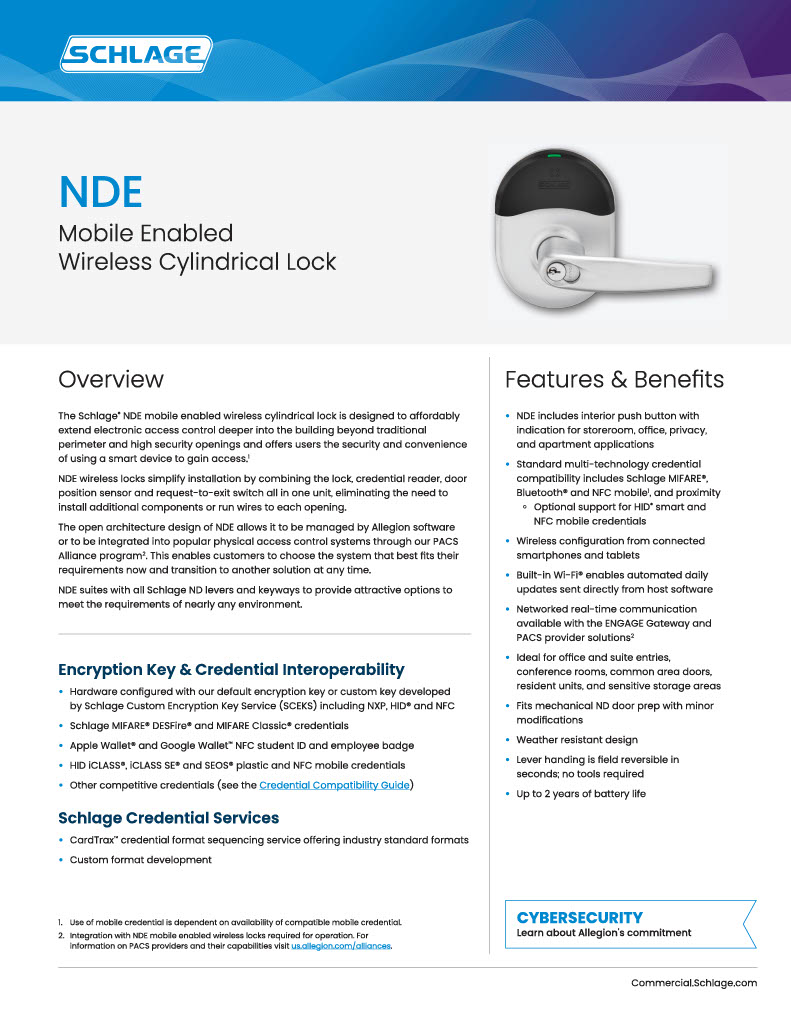

Overview

ENGAGE cloud-based web and mobile apps make it easy to configure lock settings, add users, and view audits and alerts from anywhere. For advanced capabilities including user schedules, auto unlocks & holidays, NDE Series wireless locks can be managed with software from our access control alliance partners.

NDE Series wireless locks with ENGAGE technology are compatible with most proximity and smart cards including aptiQ and aptiQmobile.

Features and benefits

Fits mechanical ND Series door prep with no additional holes

Lever handing is field reversible in seconds; no tools required

Innovative integrated door position sensor requires no additional door prep

Manage lock configuration and users from anywhere using the ENGAGE web and mobile apps

Send updates manually at the lock, automatically daily when connected to Wi-Fi,2 or in real time when linked to the new ENGAGE gateway and connected to one of our Access Control Alliance partner systems

Up to 2 years of battery life with 4 AA batteries

Compatible with major brands of key systems

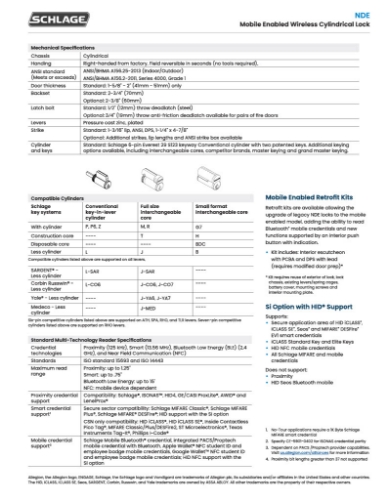

Latch 1 1/8" x 2 1/4", Square corner faceplate, 1" housing diameter, 1/2" throw

Strike 1 1/4" x 4 7/8", ANSI Square corner, with DPS magnets, no box

Backset 2 3/4"

Cylinder 6-Pin solid brass, keyed 6-pin, S123 keyway, keyed different (KD)

Door Range Comes set for 1-3/4" thick doors. Can be field adjusted for doors 1-5/8"-2" thick.

Keys Two nickel silver cut keys per lock, 6-pin, S123 section

ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL10C, FCC Part 15, ADA, RoHS, Industry Canada (IC)

Available status signals

• Request-to-exit - Door position - Interior cover tamper guard - Battery status - Lock/unlock status - Communication status

Flexible solutions

NDE series locks can be connected in multiple ways to fit any size budget or business.

1 Manually, 2 Daily, 3 Real-time

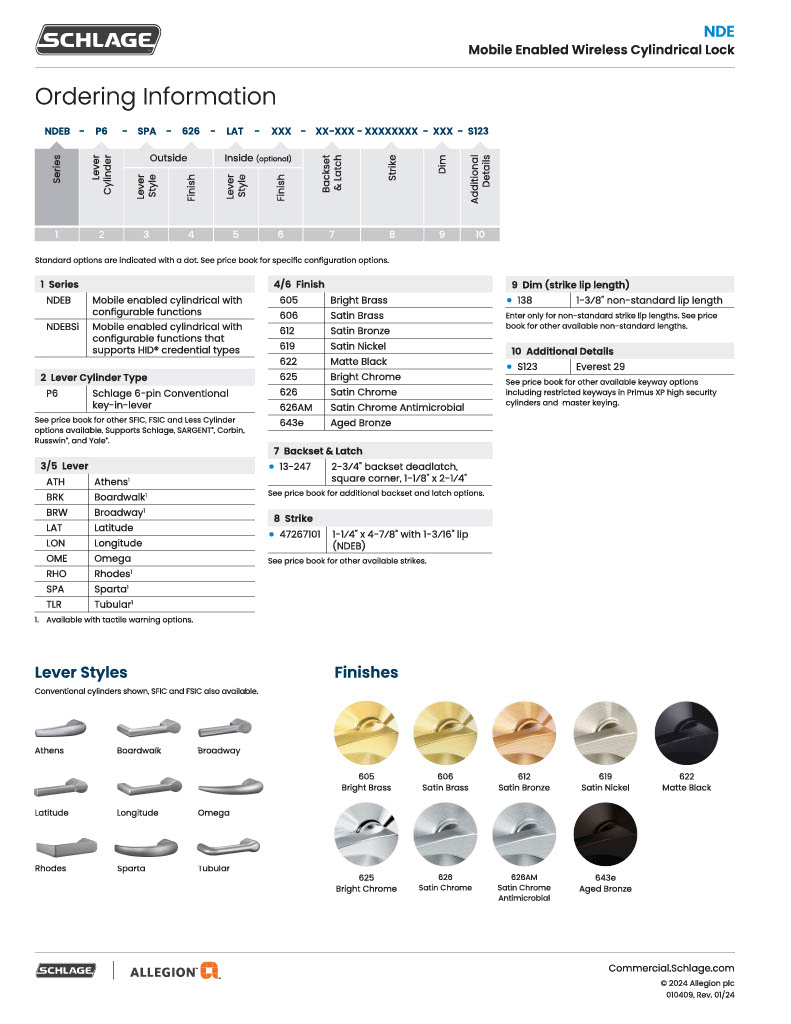

Model: Schlage, NDE, NDE80 NDE80JDATH, NDE80JDRHO, NDE80JDSPA, NDE80JDATH626, NDE80JDRHO626 ATH, RHO, SPA, OME, 605, 606, 612, 613, 619, 625, 626.

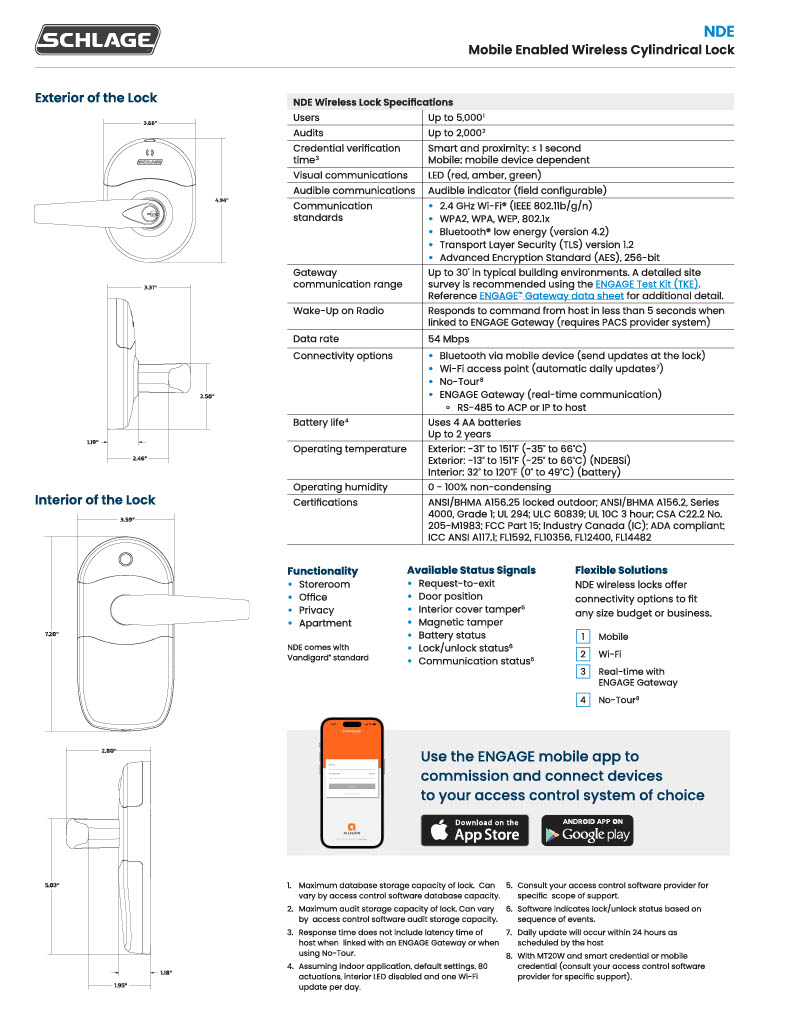

NDE Series wireless lock specifications

Users - Up to 5,000

Audits - Up to 2,000

Credential verification time - ≤ 1 second

Visual communications - LED (red, amber, green)

Audible communications - Audible indicator (field configurable)

Communication standards

• 2.4 GHz Wi-Fi (IEEE 802.11b/g)

• WPA2 (Personal), WPA2 Enterprise (PEAP), WPA, WEP

• Bluetooth low energy (version 4.0)

• Transport Layer Security (TLS) version 1.0

• Advanced Encryption Standard (AES), 256-bit

Communication range

50 ft - 100 ft typical with obstructions (normal building

construction), up to 200 ft clear line of site

Wake-Up on Radio

Responds to command from host in less than 5 seconds when

used with Alliance Partner system and ENGAGE gateway

Data rate Up to 54 Mbps via Wi-Fi

Connectivity options

• ENGAGEmobile app (update manually, at lock)

• Wi-Fi access point (update daily 9)

• Gateway with ENGAGE technology (real time)

• RS-485 to partner ACP or IP to partner host

Battery life Up to 2 yrs with 4AA batteries 4

Operating temperature For interior doors. 32 to 120 F (0 to 49 C)

Operating humidity 0 - 100% non-condensing

Certifications

ANSI/BHMA A156.25-2013, ANSI/BHMA A156.2-2011,

Series 4000, Grade 1, UL 294, UL 10C, CSA C22.2 No. 205-M1983,

FCC Part 15, IC RSS-210, ADA, RoHS, ICC ANSI A117.1
