Product Details

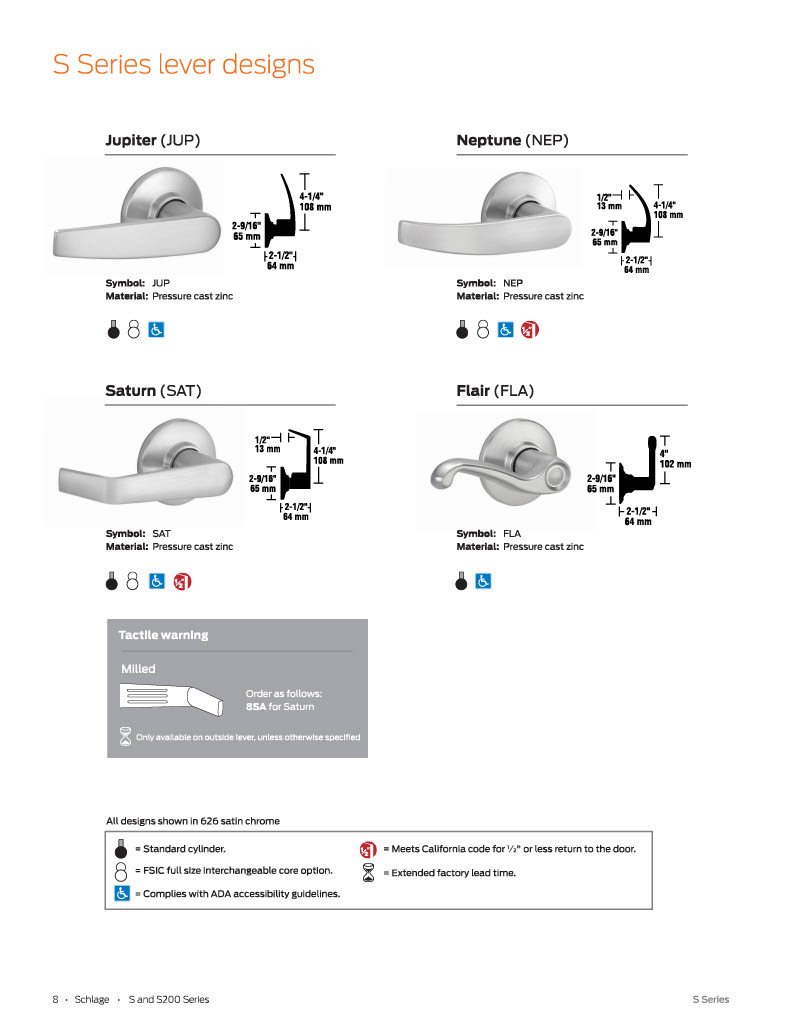

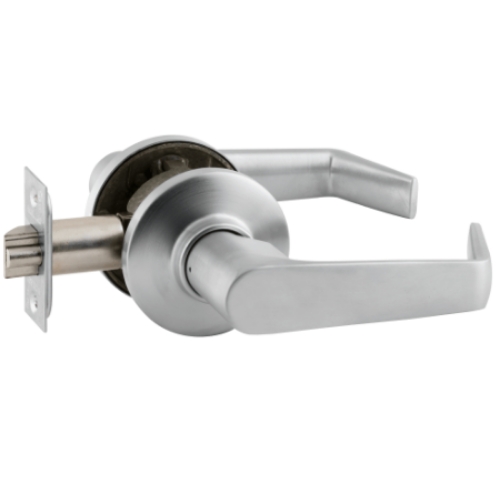

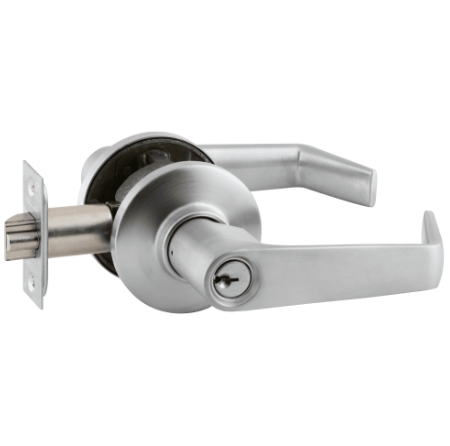

Schlage S10D Saturn (SAT) Passage Lever Set
Passage Latch -ANSI F75

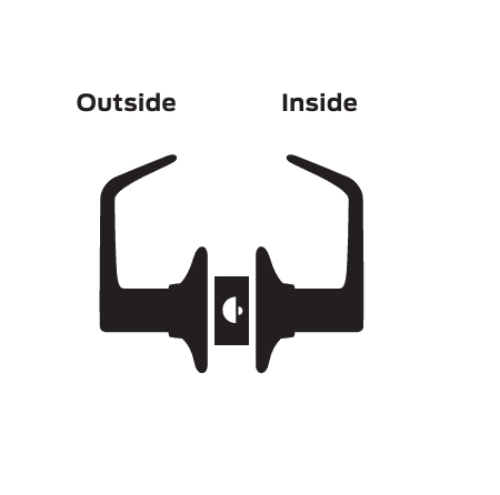

Both levers always unlocked.
Applications:Interior light to medium duty commercial doors: office tenant, laboratories, passage and entrance doors. Heavy duty residential doors: single and multi-family housing.

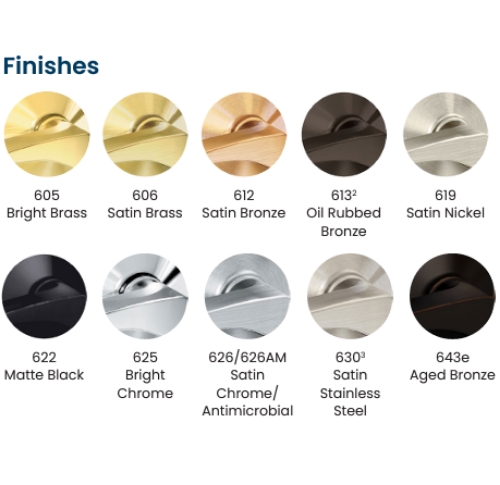

Finishes:626 - Satin Chrome, 605 - Bright Brass, 606 - Satin Brass, 609 - Antique Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome
Certifications:ANSI A156.2, 1996, Series 4000 Grade 2. UL Listed for all functions up to 3-hour doors
Non-handed levers (except Flair design).
Door Range:1 3/8" - 2" (35 mm - 51mm), except S40D: 1 3/8" - 1 7/8" (35 mm - 48 mm).
Backset:Universal backset latches standard, fit either 2 3/8" (60 mm) or 2" (70 mm) backsets. 5" (127 mm) backset latches available.

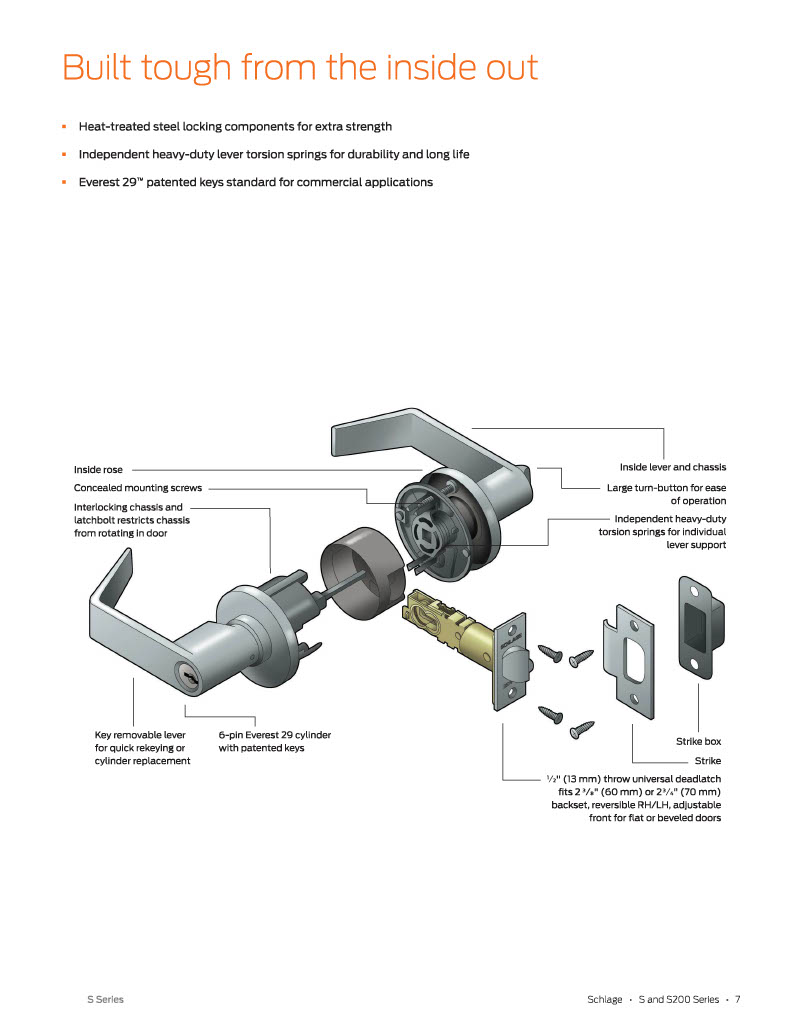

Deadlatches:1" x 2" (25 mm x 57 mm), square corner faceplate, 7/8" (23 mm) housing," (13 mm) throw. Latches are furnished in brass, bronze or chrome finishes compatible with lock trim.
Strikes:Square corner, 1 1/8" x 2" x 3/32" (29 mm x 57 mm x 2 mm) T strike with 1 1/8" (29 mm) lip, furnished with dust box, #10-001 is standard. Optional lip lengths 1 " though 2" (25 mm - 51 mm)" (6 mm) radius round corner strikes and ANSI 1" x 4 7/8" (32 mm x 124 mm) strikes are also available.
Warranty:Commercial: three-year limited. Residential: Full mechanical lifetime.
Model:Schlage S80, S10D S10, SAT, 626, 605, 606, 609, 613, 625. S10DSAT, S10DSAT626, S10DSAT605, S10DSAT606, S10DSAT625, S10DSAT609, S10DSAT613
, S10SAT, S10SAT626, S10SAT605, S10SAT606, S10SAT625, S10DAT609, S10B78SAT613
