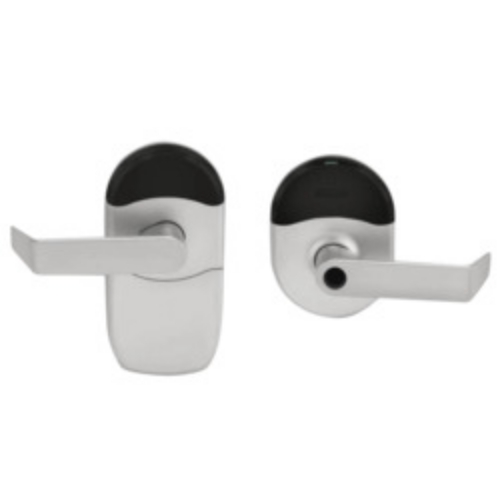

Schlage NDEBLD-RHO-626 Grade 1 Schlage ENGAGE Series Wireless Cylindrical Lock, Less Cylinder, Mobile Enabled Multi-Function, Rhodes Lever, Satin Crome

Grade 1 Schlage ENGAGE Series Wireless Cylindrical Lock, 2.4 GHz Bluetooth Low Energy Reader,Less Cylinder, Mobile Enabled Multi-Function, Field Reversible

ENGAGE cloud-based web and mobile applications The ENGAGE cloud-based web and mobile applications deliver simple and convenient site set-up with basic access management for users and locks.

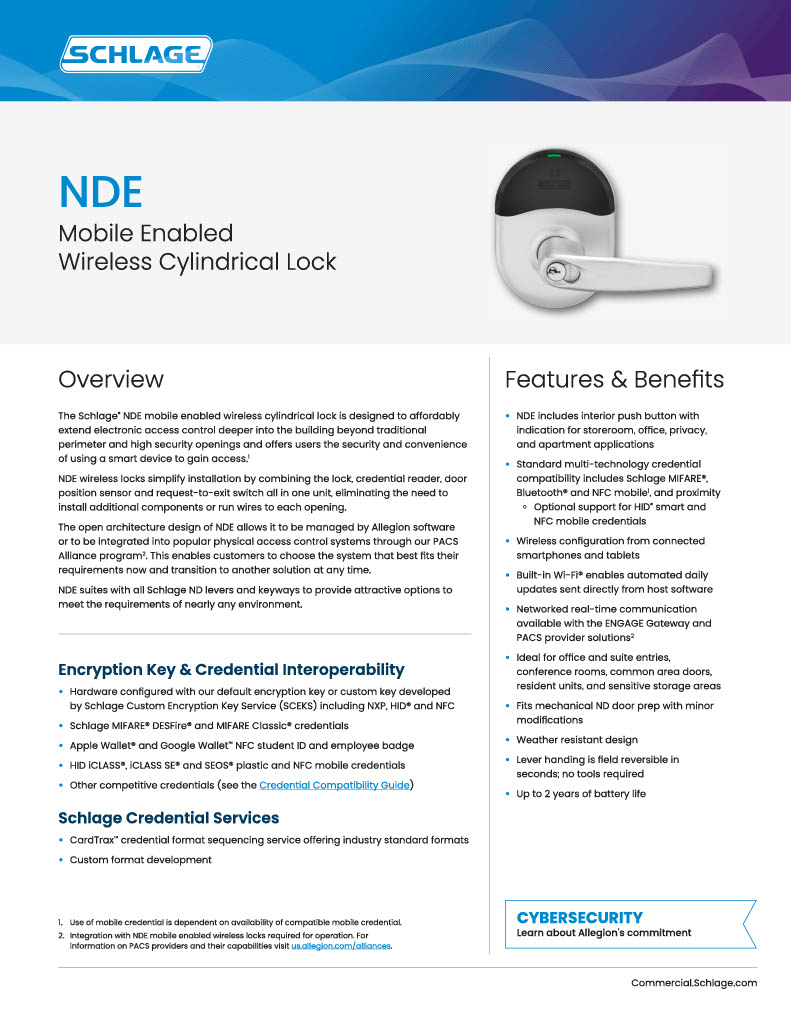

Overview:

The Schlage NDE wireless cylindrical lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings. And now Schlage offers the NDE wireless lock with a mobile enabled option that gives users the security and convenience of using a smart device to gain access(Use of mobile credential on the NDEB mobile enabled lock is dependent on availability of compatible mobile credential). NDE wireless locks simplify installation by combining the lock, credential reader, door position sensor and request-to-exit switch all in one unit. NDE wireless locks require only minor modifications to existing mechanical Schlage ND cylindrical door prep; and eliminate the need to install additional components or run wires to each opening.

The newNDEBmobile enabled wireless lock also has an interior push button with  indication that expands the way the lock operates to include storeroom, office, privacy and apartment functions.

NDE wireless locks can be set up and configured wirelessly with a connected smartphone or tablet - no proprietary device needed. With the ENGAGE cloudbased web and mobile apps, it's easy to configure lock settings, add users, and view audits and alerts from virtually anywhere. And using the built-in Wi-Fi, automated daily updates to lock configuration and user access rights are possible. the open architecture design allows for advanced capabilities including networked real-time communication. Using the ENGAGE Gateway and an integrated solution from one of our physical access control software (PACS) providers, (Integration with NDEB mobile enabled wireless locks required for operation. For information on PACS providers and their capabilities visit us.allegion.com/alliances.)Schlage offers organizations the freedom to use the solution of their choice. The NDE is ideal for office and suite entries, conference rooms, common area doors, resident units, and sensitive storage areas with cylindrical door prep. NDE suites with all Schlage ND levers and keyways, and most finishes, providing attractive options to meet the requirements of nearly any environment.

Features and benefits:

• Ready for the future with the ability to read Bluetooth (NDEB) and NFC (NDE, NDEB) mobile credentials.
• NDEB includes interior push button with indication for storeroom, office, privacy, and apartment applications.
• Wireless configuration from connected smartphones and tablets.
• Built-in Wi-Fi enables automated daily updates sent directly from host software.
• Networked real-time communication available with the ENGAGE Gateway and PACS provider solutions.
• Designed to be easy to install, connect, manage, and use.
• Fits mechanical ND door prep with minor modifications.
• Weather resistant design for use on perimeter doors.
• Lever handing is field reversible in seconds; no tools required.
• Up to 2 years of battery life.

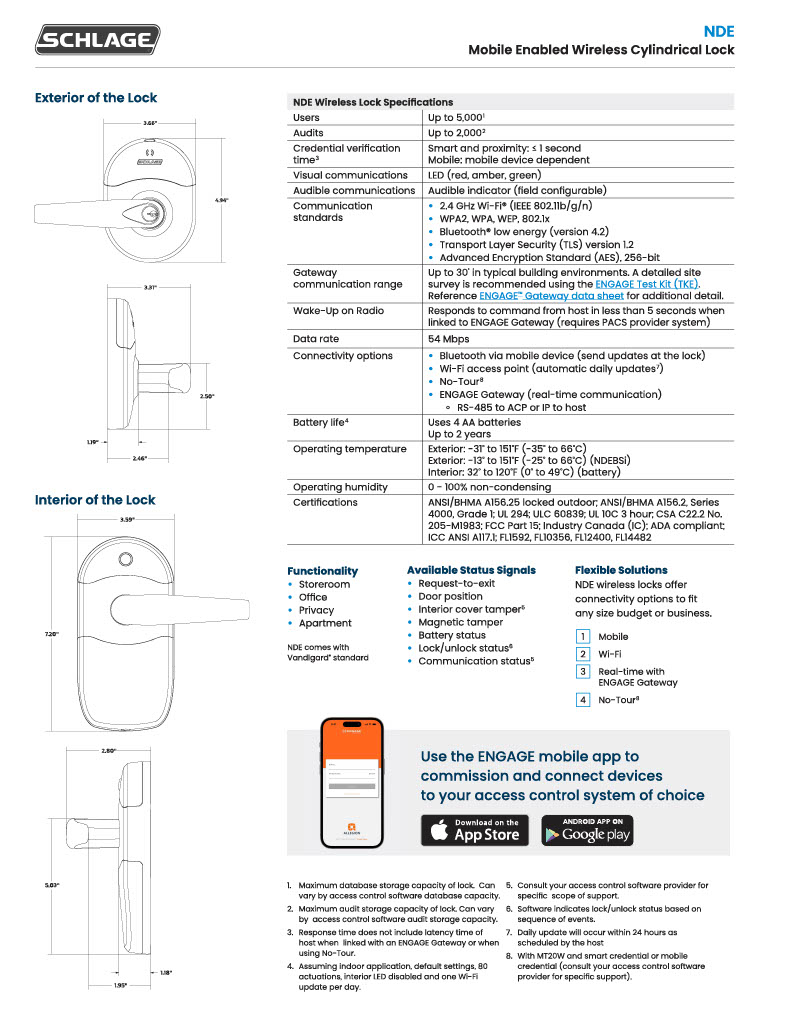

NDE wireless lock specifications:

more Specifications see in the Specifications section Users: Up to 5,000(1). Audits:Up to 2,000(2). Credential verification time:(3)Smart and proximity: ≤ 1 second.  Mobile: mobile device dependent. Visual communications:  LED (red, amber, green). Audible communications:Audible indicator (field configurable). Communication standard: - 2.4 GHz Wi-Fi (IEEE 802.11b/g/n). - WPA2, WPA, WEP, 802.1x. - Bluetooth low energy (version 4.2). - Transport Layer Security (TLS) version 1.2. - Advanced Encryption Standard (AES), 256-bit. Gateway communication range:  Up to 30' in typical building environments. A detailed site survey is recommended using the ENGAGE Test Kit (TKE). Reference ENGAGE Gateway Data Sheet for additional detail. Wake-Up on Radio:Responds to command from host in less than 5 seconds when linked to ENGAGE Gateway (requires PACS provider system). Data rate:NDE80 = 24mbps, NDEB = 54mbps. Connectivity options:  - Mobile device (send updates at the lock). - Wi-Fi access point (automatic daily updates(7)). - No-Tour with MT20W enrollment reader and smart credentials. - ENGAGE Gateway (real-time communication). - RS-485 to ACP or IP to host. Battery life(4):Uses 4 AA batteries  -  Up to 2 years. Operating temperature:Exterior -31 F to 151 F (-35 C to 66 C).                                    Interior: 32 F to 120 F (0 C to 49 C) (battery). Operating humidity:0 - 100% non-condensing. Certifications:ANSI/BHMA A156.25-2013 (Indoor/Outdoor), ANSI/BHMA A156.2-2011, Series 4000, Grade 1, UL 294, UL 10C, CSA C22.2 No. 205-M1983, FCC Part 15, IC RSS-210, ADA, RoHS, ICC ANSI A117.1.

Functionality - NDEB with Interior Push Button - Storeroom - Office - Privacy - Apartment

Flexible solutions:NDE wireless locks offer connectivity options to fit any size budget or business. 1) Mobile. 2) No-Tour with MT20W. 3) Wi-Fi. 4) Real-time with ENGAGE Gateway.

Available status signals: - Request-to-exit - Door position - Interior cover tamper(5) - Magnetic tamper - Battery status - Lock/unlock status(6) - Communication status(5)

1Maximum database storage capacity of lock. Can vary by access control software database capacity.2Maximum audit storage capacity of lock. Can vary by access control software audit storage capacity.3Response time does not include latency time of host when linked with an ENGAGE Gateway or when using No-Tour. 4Assuming indoor application, default settings, 80 actuations, interior LED disabled and one Wi-Fi update per day.5Consult your access control software provider for specific scope of support.  6Software indicates lock/unlock status based on sequence of events.7When using the ENGAGE cloud-based access management software.

Schlage NDEB, Schlage NDEBL, NDEBLATH, NDEBLRHO, NDEBLSPA, NDEBLATH626, NDEBLRHO626, NDEBLSPA626 ATH, RHO, SPA, OME, 605, 606, 612, 613, 619, 625, 626. Schlage NDEB, NDEBL, NDEBL ATH, NDEBL RHO, NDEBL SPA, NDEBL ATH626, NDEBL RHO626, NDEBL SPA626, SchlageNDEB, SchlageNDEBL, Schlage NDEBL ATH, Schlage NDEBL RHO, Schlage NDEBL SPA, Schlage NDEBL ATH 626, Schlage NDEBL RHO 626, NDEBL SPA 626, Schlage NDEBLATH, Schlage NDEBLRHO, Schlage NDEBLSPA, Schlage NDEBLATH626, Schlage NDEBLRHO626, Schlage NDEBLSPA626, NDEBL ATH Schlage, NDEBL RHO Schlage, NDEBL SPA Schlage, NDEBL ATH626 Schlage, Schlage NDEB, Schlage NDEBL, NDEBLTLR, NDEBLOME, NDEBLLAT, NDEBLTLR626, NDEBLOME626, NDEBLLAT626 TLR, OME, LAT, OME, 605, 606, 612, 613, 619, 625, 626. Schlage NDEB, NDEBL, NDEBL TLR, NDEBL OME, NDEBL LAT, NDEBL TLR626, NDEBL OME626, NDEBL LAT626, SchlageNDEB, SchlageNDEBL, Schlage NDEBL TLR, Schlage NDEBL OME, Schlage NDEBL LAT, Schlage NDEBL TLR 626, Schlage NDEBL OME 626, NDEBL LAT 626, Schlage NDEBLTLR, Schlage NDEBLOME, Schlage NDEBLLAT, Schlage NDEBLTLR626, Schlage NDEBLOME626, Schlage NDEBLLAT626, NDEBL TLR Schlage, NDEBL OME Schlage, NDEBL LAT Schlage, NDEBL TLR626 Schlage, Schlage NDEB, Schlage NDEBL, NDEBLLON, NDEBLBRW, NDEBLBRK, NDEBLLON626, NDEBLBRW626, NDEBLBRK626 LON, BRW, BRK, BRW, 605, 606, 612, 613, 619, 625, 626. Schlage NDEB, NDEBL, NDEBL LON, NDEBL BRW, NDEBL BRK, NDEBL LON626, NDEBL BRW626, NDEBL BRK626, SchlageNDEB, SchlageNDEBL, Schlage NDEBL LON, Schlage NDEBL BRW, Schlage NDEBL BRK, Schlage NDEBL LON 626, Schlage NDEBL BRW 626, NDEBL BRK 626, Schlage NDEBLLON, Schlage NDEBLBRW, Schlage NDEBLBRK, Schlage NDEBLLON626, Schlage NDEBLBRW626, Schlage NDEBLBRK626, NDEBL LON Schlage, NDEBL BRW Schlage, NDEBL BRK Schlage, NDEBL LON626 Schlage,

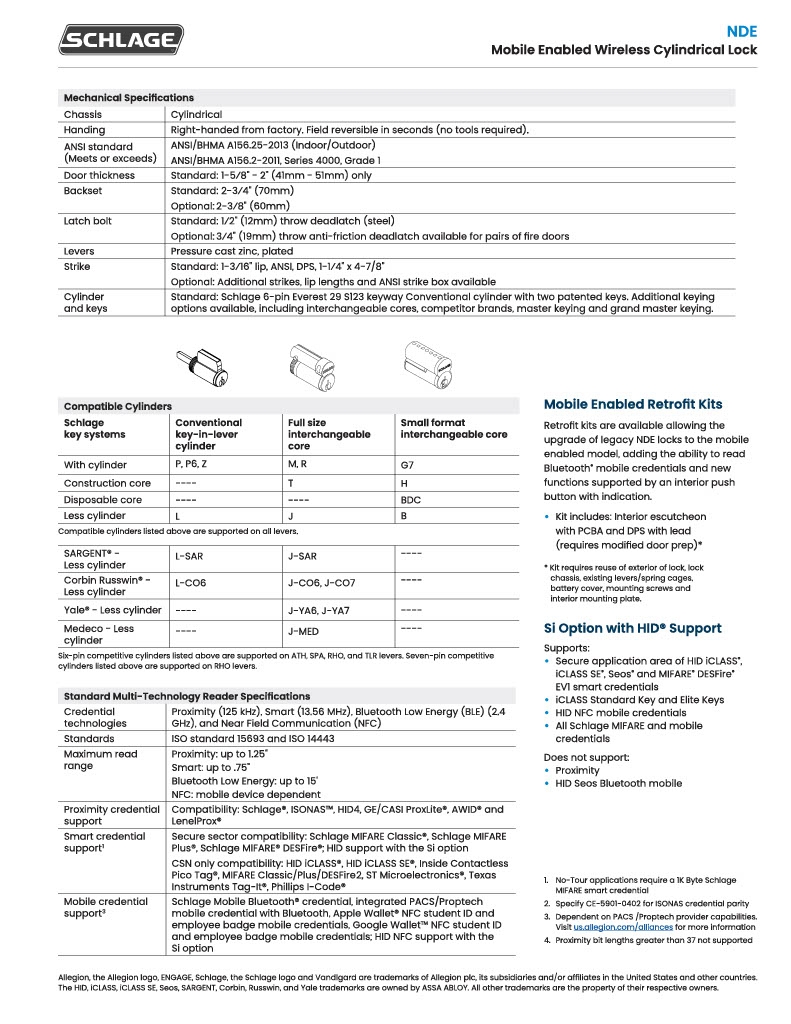

Mechanical specifications:

Chassis:Cylindrical Handing:Right-handed from factory. Field reversible in seconds (no tools required). ANSI standard (Meets or exceeds):ANSI/BHMA A156.25-2013 (Indoor/Outdoor) ANSI/BHMA A156.2-2011, Series 4000, Grade 1. Door thickness:Standard: 1 5⁄8" - 2" (41mm - 51mm) only. Backset:Standard: 2 3⁄4" (70mm). Optional: 2 3⁄8" (60mm). Latch bolt:Standard: 1 ⁄2" (12mm) throw deadlatch (steel). Optional: 3⁄4" (19mm) throw anti-friction deadlatch available for pairs of fire doors. Levers:Pressure cast zinc, plated. Strike:Standard: 1 3⁄16" lip, ANSI, DPS, 1 1⁄4" x 4". Optional: Additional strikes, lip lengths and ANSI strike box available. Cylinder and keys:Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys. Additional keying options available, including interchangeable cores, competitor brands, master keying and grand master keying.

Multi-technology reader specifications:Credential technologies: Proximity (125 kHz), Smart (13.56 MHz), Bluetooth Low Energy (BLE) (2.4 GHz), and Near Field Communication (NFC). Standards:ISO standard 15693 and ISO 14443. Maximum read range:Proximity: up to 1.25". Smart: up to .75". Bluetooth Low Energy: up to 15'. NFC: mobile device dependent. Proximity credential compatibility:Compatibility: Schlage, ISONAS, HID, GE/CASI ProxLite, AWID and LenelProx. Schlage credential style formats:Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, PVC adhesive disk. Smart credential compatibility1.: Secure sector compatibility:Schlage MIFARE Classic, Schlage MIFARE Plus, Schlage MIFARE DESFire EV1 and EV2 with PACSA CSN only compatibility:DESFire, HID iClass, Inside Contactless Pico Tag, MIFARE, MIFARE DESFire EV1 and EV2 , ST Microelectronics, Texas Instruments Tag-It, Phillips I-Code. Schlage credential style formats:Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, wearable wristband, PVC adhesive patch. Mobile credential compatibility:Schlage Mobile Access Credential with Bluetooth2, Integrated PACS mobile credential with Bluetooth3, NFC-enabled mobile devices4.
