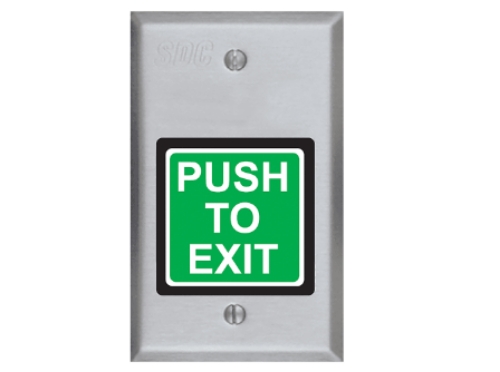

SDC 423PU Illuminated "PUSH TO EXIT" switch W/ Integrated pneumatic timer, 2" square button - Stainless Steel
Product Details
SDC 423PU Illuminated "PUSH TO EXIT" switch W/ Integrated pneumatic*timer, 2" square button, 1-gang. - Stainless Steel*
Integrated pneumatic timer, adj. 1-180 sec. 12/24VDC, SPDT 3Amp contact
SPECIFICATIONS:
Contact: SPDT/DPDT, 5 Amp @ 30VDC Resistive
Timer: 12/24VDC, SPDT 3Amp contact
Sign: "PUSH TO EXIT" - non-illuminated
Wire Leads: 6", 20 Gauge
1 Gang: 2 7/8" x 4 1/2" x 20 Ga.
