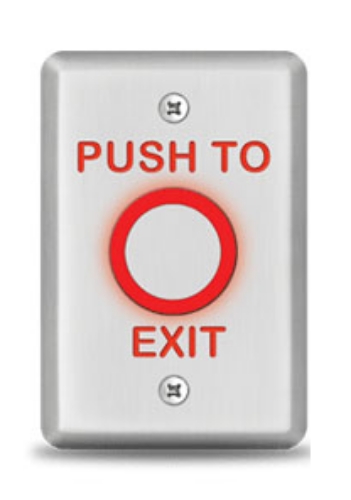

SDC 463U Piezoelectric Exit Switch, Vandal Resistant, 1 Gang - stainless steel

SDC 463U Piezoelectric Exit Switch, Vandal Resistant, 1 Gang - stainless steel

FEATURES:

? Vandal Resistant Stainless Steel Piezoelectric Button

? 2mm Stainless Steel Vandal Resistant Faceplate

? Selectable Bi-Color Illumination Status

? Standby Red - Flashing Green with Relay ON

? Standby Green - Flashing Red with Relay ON

? Adjustable Timer Output, 1-30 sec or Latching

? The switch features an integrated output timer that is adjustable for 1 - 30 seconds or toggle on/off and switch selectable illumination status. Brilliant red and vibrant green can be selected to show relay ON or OFF status.

? The 463U can be used to control an automatic door, electromechanical lock, strike or magnetic lock. It may also be tied into the remote bypass (request-to-exit) input of an access control system, or used to shunt an alarm system to allow egress from a secure area.

SPECIFICATIONS

Input Voltage: 12/24V AC/DC

Current: Idle-30mA, Active-150mA

Output: SPDT Dry Contact, 3 Amp @ 30VDC

Button Switch Life: 1 Billion Cycles

Relay Life Expectancy: 100,000 cycles @ 3A 30VDC, 200,000 cycles @ 1.5A 30VDC

Switch Operating Environment: -40? F to +160? F

Dimensions Single Gang: 4.75"H x 3"W x 1.125"D
