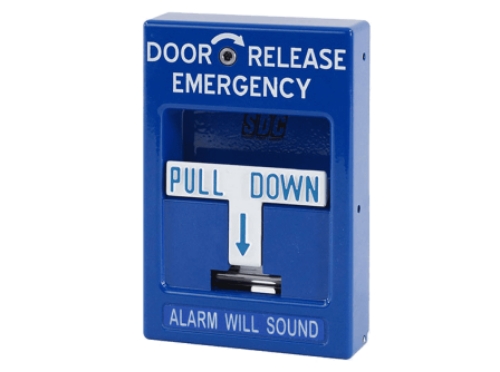

SDC 492 Emergency Door Release Pull station with siren 3V-28VDC, 18mA

SDC 492 Emergency Door Release Pull station  with siren 3V-28VDC, 18mA

Features:

• Blue housing with easy to read activation instructions avoids confusion with red fire alarm stations.

• The SDC 492 may initiate the release of an individual door or all doors on the same circuit.

• The SDC 492 may be mounted in a 2" deep single gang back box or double gang box with plaster ring cover. The SDC 492 may be surface mounted with a 492-BB surface mount back box.

Specification:

• Contacts: 2-SPDT 10 Amp Contacts; 1-SPDT for lock release and 1-SPDT luxiliary contact for remote monitoring, CCTV activation or alarm activation

• Replacement Glass Rods: 2 Replacement glass rods included

• Dimensions: 4.75" H x 3.25" W x 1.375" D
