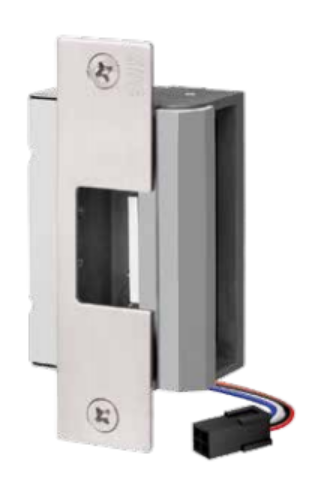

SDC 55-AU Uniflex Electric Strike For cylindrical locksets with up to 5/8" latch.

SDC 55-AU Uniflex Electric Strike For cylindrical locksets with up to 5/8" latch.

Features:

 No Centerline Relocation Up to ¾" Latchbolt and 1" Deadbolt Field Reversible, Failsafe/ Failsecure 1/8" Horizontal alignment adjustment ANSI/BHMA A156.31 Grade 1 Factory tested 2500 lbs, exceeds 1,000,000 cycles UL tested 1500 lb Static strength 70 ft-lb Dynamic strength Internally Mounted Solenoid, No Heat in Keeper Dual Voltage 12/24VDC Tamper Resistant All Stainless Steel Corrosion Resistant Parts and Heavy Cast Body and Keeper Non-handed (Deadbolt status handed) Plug-in pig tail connectorsREVERSIBLE FAILSAFE/FAILSECURE:

Fail-Secure (Power-to-Unlock): Unlocked when energized. Locked when de-energized and during power failure.

Fail-Safe (Power-to-Lock): Locked when energized. Unlocked when de-energized and during power failure.

SPECIFICATIONS:

Dual Voltage Power Input: 600/300 @ 12/24V DC

Contacts: SPDT, Dry, 5Amp @ 30V
