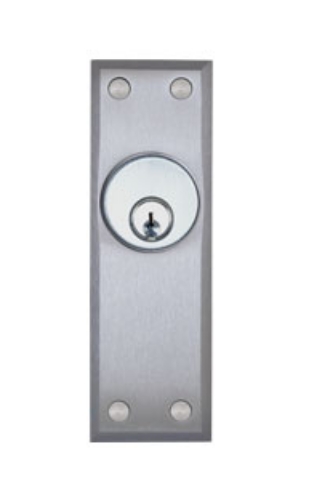

SDC 701NU Narrow Key Switch, 1-3/4", 20 Gauge, Alternate action SPDT, 6 Amp - Stainless Steel

SDC 701NU Narrow Key Switch, 1-3/4", 20 Gauge, Alternate action (on-off) SPDT, 6 Amp - Stainless Steel

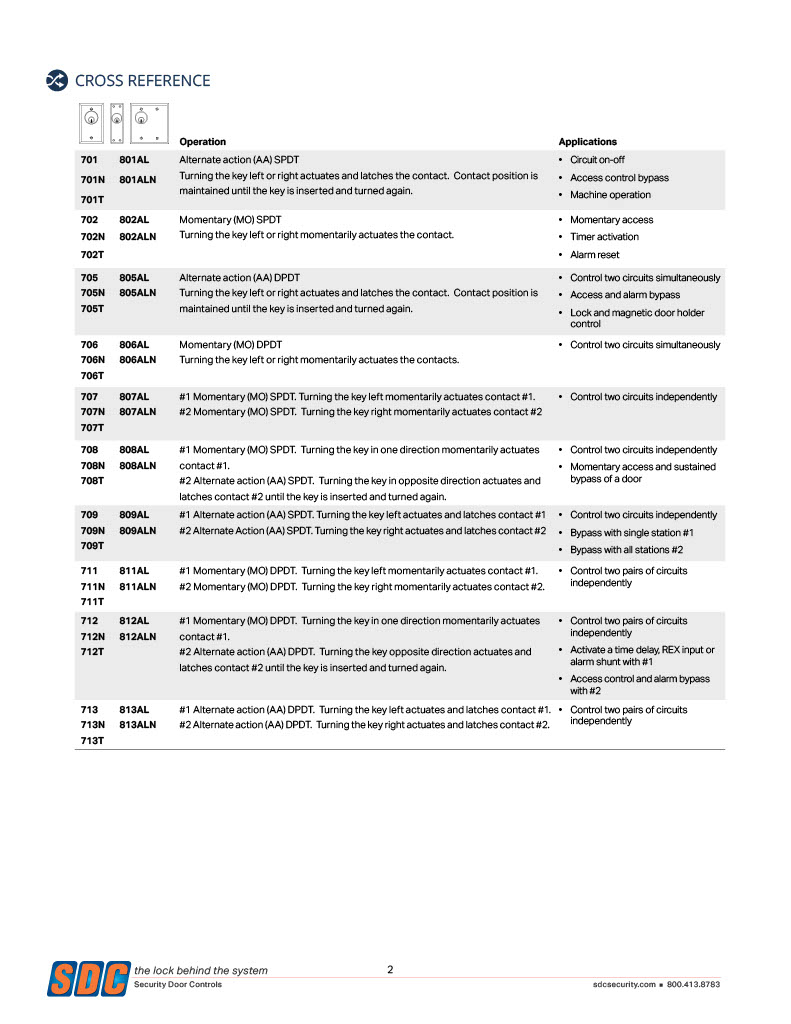

Operation:

Alternate action SPDT: Turning the key left or right actuates and latches the contact. Contact position is maintained until the key is inserted and turned again.

Application:

? Circuit on - off ? Access control bypass ? Machine operation

Features:

? Tamper Resistant Spanner Screws

? Heavy Duty All Steel Assembly

? Stainless Steel Faceplates of 20 Gauge

? Large Actuator for Positive and Consistent Activation

? 6 Amp @ 30 VDC Resistive

? 7", 22 Gauge Wire Leads

? Compatible with 1.0" or 1.375" Mortise Cylinder (not included)

? 1.75" x 4.5" x 20 Ga.

NEW CONSTRUCTION OR RETROFIT:

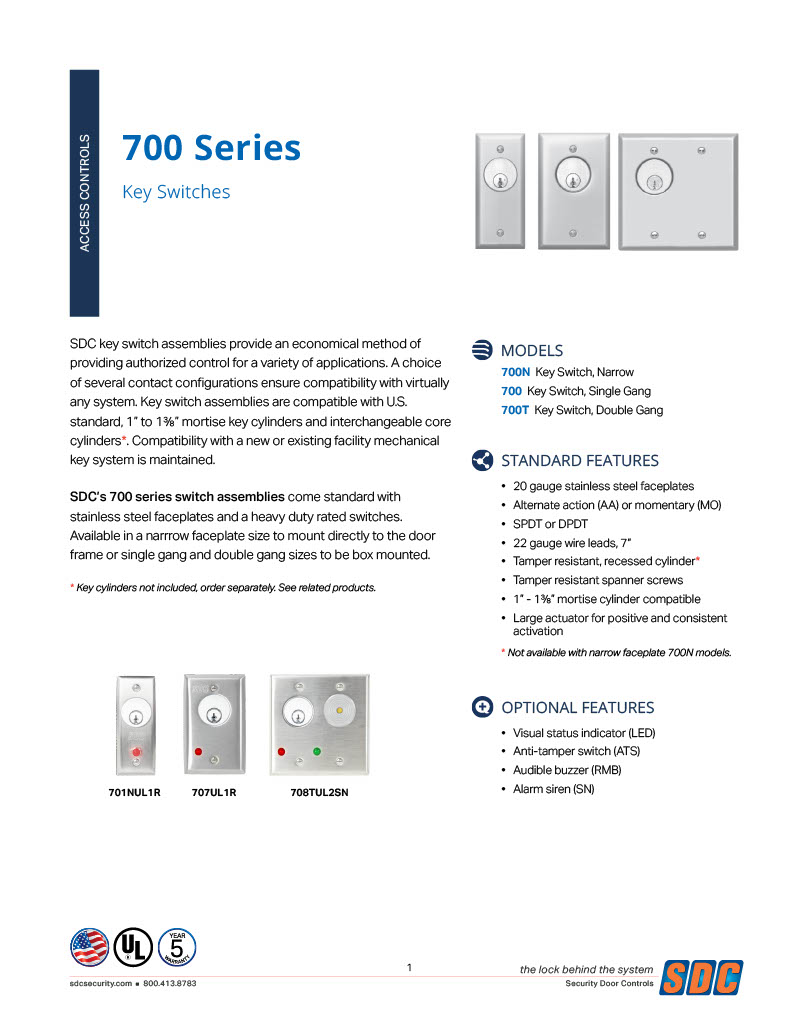

SDC key switch assemblies are compatible with U.S. standard, 1.0" and 1.375" mortise key cylinders and interchangeable core cylinders (not included). Compatibility with a new or existing facility mechanical key system is maintained. Standard switch assemblies are single gang box mounted.
