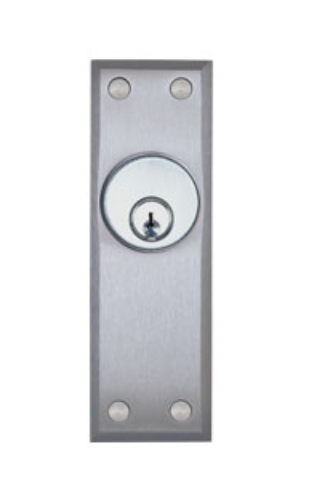

SDC 702NU Narrow Key Switch, 1-3/4", 20 Gauge, Momentary SPDT, 6 Amp - Stainless Steel

SDC 702NU*Narrow Key Switch, 1-3/4", 20 Gauge, Momentary SPDT, 6 Amp*- Stainless Steel

Operation:

Momentary SPDT: Turning the key left or right momentarily actuates the contact

Application:

? Momentary access

? Timer activation

? Alarm reset

Features:

? Tamper Resistant Spanner Screws

? Heavy Duty All Steel Assembly

? Stainless Steel Faceplates of 20 Gauge

? Large Actuator for Positive and Consistent Activation

? 6 Amp @ 30 VDC Resistive

? 7", 22 Gauge Wire Leads

? Compatible with 1.0" or 1.375" Mortise Cylinder (not included)

? 1.75" x 4.5" x 20 Ga.

NEW CONSTRUCTION OR RETROFIT:

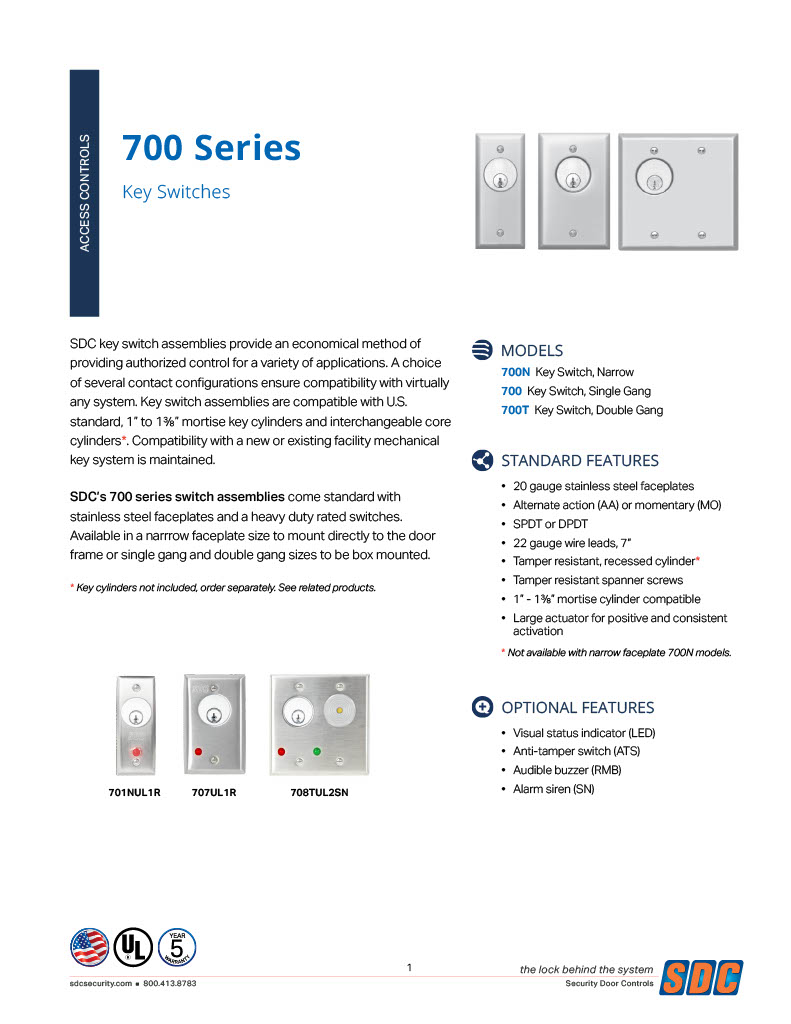

SDC key switch assemblies are compatible with U.S. standard, 1.0" and 1.375" mortise key cylinders and interchangeable core cylinders (not included). Compatibility with a new or existing facility mechanical key system is maintained. Standard switch assemblies are single gang box mounted.
