SDC Quiet Duo LR100SGK 24V Latch Retraction / Dogging Kit For Sargent Rite Exit Devices

SDC Quiet Duo LR100SGK 24V Latch Retraction / Dogging Kit For Sargent Rite Exit Devices

Product Details

SDC Quiet Duo LR100SGK 24V Latch Retraction / Dogging Kit For Sargent Rite Exit Devices

Fits Sargent 8500 / 8800 / 8700 / 8400 / 8600 / 8300 / 8900 Exit Devices

For 36"- 48" openings

Features:

? 700 mA Inrush, 200 mA Continuous @ 24VDC

? For access control and sustained dogging applications

? Simultaneous latch retraction and dogging (pushpad depressed) for most exit devices

? Pushpad is depressed electrically for quieter push / pull operation

? Automatic re-trigger if device does not pull on frst try

? Eliminates need for costly replacement of existing exit device

? Signifcantly less labor and costs compared to competitive retroft kits

? Low current enables longer wire runs with smaller gauge wire

? No door sequencers required for pairs of manual doors

SDC Quiet Duo LR100SGK 24V Latch Retraction / Dogging Kit For Sargent Rite Exit Devices

Name: SDC Quiet Duo LR100SGK 24V Latch Retraction / Dogging Kit For Sargent Rite Exit Devices
SKU: LR100SGK
Price: 488.24 USD
Availability: InStock

SKU: LR100SGK

In Stock

Chat

$488.24

About this item

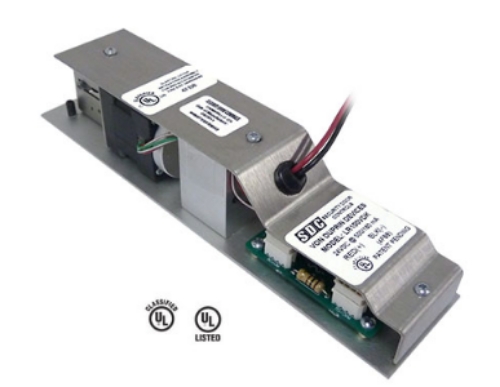

The SDC LR100 Series Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.

The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.
