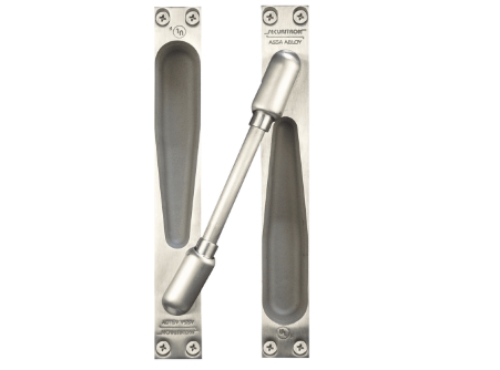

Securitron CEPT-10 - Concealed Electrical Power Transfer - 10 Wire

Product Details

Securitron CEPT-10 - Concealed Electrical Power Transfer - 10 Wire

Features:

Mortises into the edges of the door and frameDirect retrofit for competitors productsTamper resistant. No exposed openings prevents foreign objects from reaching the wires or jamming the deviceAll metal construction including backboxes - no plastic10 wire configuration includes 2-18 gauge wires for higher current devicesInstalls above 2nd hinge 7/8" knockouts on back boxes accommodate EMF-type fittingsTested to 1,000,000 cyclesWill only function with butt hinges - up to 6"Will not work on center-hung or balanced doorsWill work with Continuous Hinges - please check with Continuous Hinge Manufacturer as to their cutout availability and charge for this cutout

Dimensions:9-1/16"Lx1-3/16"Wx1-7/16"D

Shipping Weight :2.40 lbs [1.09kg]

Finishes:US630 - Stainless Steel

Model:CEPT10

Securitron CEPT-10 - Concealed Electrical Power Transfer - 10 Wire

SKU: CEPT10

In Stock

$314.64

About this item

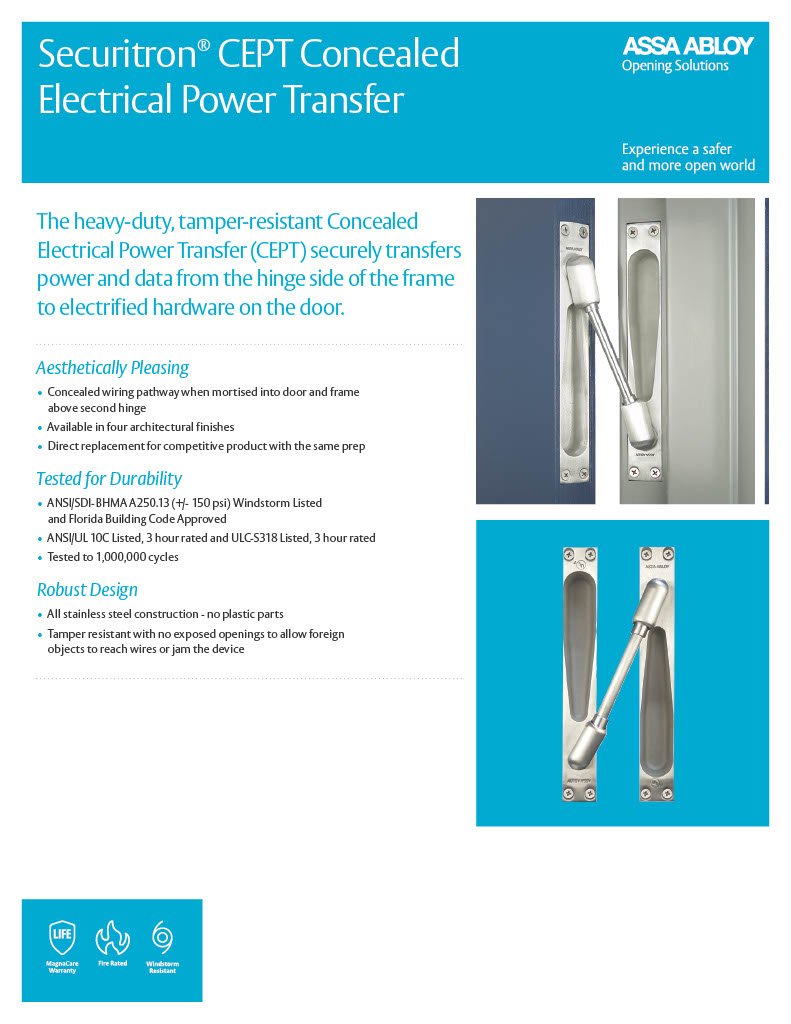

The heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrical hardware on the door.The unit is discretely concealed between the frame and door when the door is closed.

Securitron CEPT-10 - Concealed Electrical Power Transfer - 10 Wire

Features:

Mortises into the edges of the door and frameDirect retrofit for competitors productsTamper resistant. No exposed openings prevents foreign objects from reaching the wires or jamming the deviceAll metal construction including backboxes - no plastic10 wire configuration includes 2-18 gauge wires for higher current devicesInstalls above 2nd hinge 7/8" knockouts on back boxes accommodate EMF-type fittingsTested to 1,000,000 cyclesWill only function with butt hinges - up to 6"Will not work on center-hung or balanced doorsWill work with Continuous Hinges - please check with Continuous Hinge Manufacturer as to their cutout availability and charge for this cutout

Dimensions:9-1/16"Lx1-3/16"Wx1-7/16"D

Shipping Weight :2.40 lbs [1.09kg]

Finishes:US630 - Stainless Steel

Model:CEPT10
