Securitron LMS-1 Latch Monitor for ANSI - 2-3/4 - Strike - SPDT - 3Amp

Securitron LMS-1 Latch Monitor for ANSI - 2-3/4 - Strike - SPDT - 3Amp

1-page1-AADSS1204552

Product Details

Securitron LMS-1 Latch Monitor for ANSI - 2-3/4 - Strike - SPDT - 3Amp

Features: ? Electronically verify mechanical latch and bolt positions ? Detect and report that a door is actually latched or bolted, not just closed ? Installs easily concealed behind existing hardware ? Requires no jamb or strike plate modification ? LMS-1 includes a single SPDT switch and fits any standard 2-3/4" ANSI cutout ? MagnaCare Lifetime Replacement No Fault Warranty ? UL Listed

Contact Rating:SPDT 2 Amp at 24V

Operating Temperature:-40 to +160F [-40 to +71C]

Model:LMS1

Securitron LMS-1 Latch Monitor for ANSI - 2-3/4 - Strike - SPDT - 3Amp

SKU: LMS1

In Stock

$102.05

About this item

The LM Series interfaces with an access control or alarm system to indicate the state of the latch bolt.Used alone or in conjunction with a door position switch, the LM provides confirmation that the door is secure, preventing false alarms and unauthorized access while providing tamper detection.Can also be used to transmit an initiate signal to model XDT delayed egress logic timers.

Resources

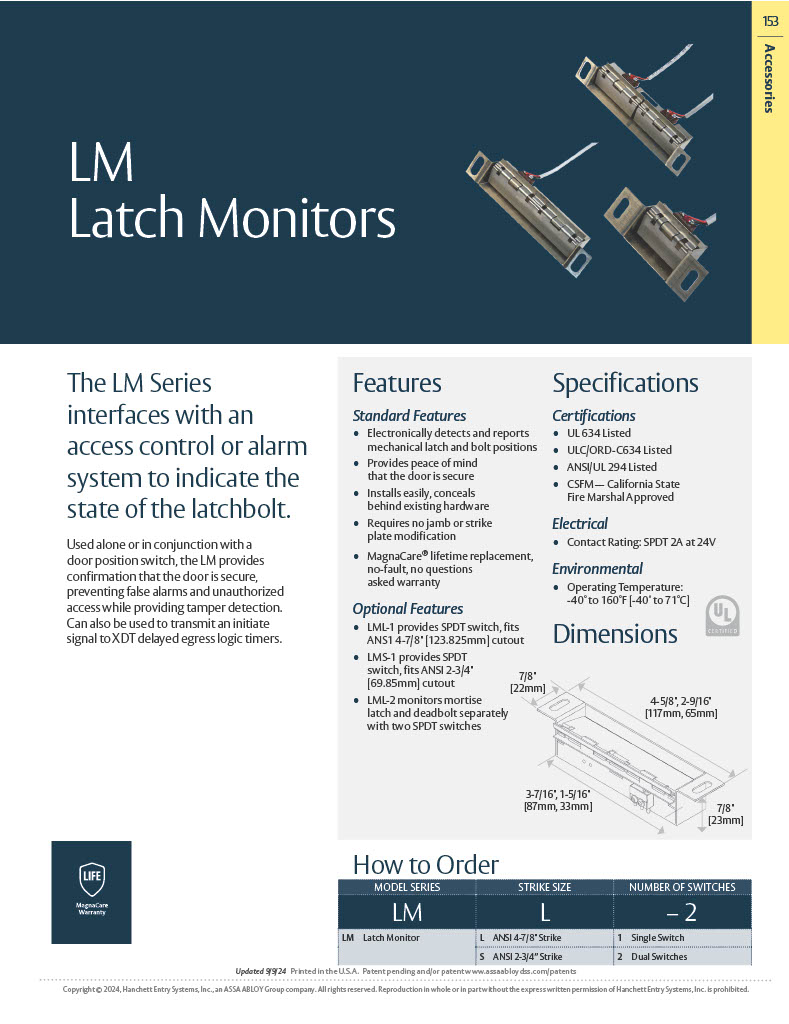

**LM Latch Monitors**

Securitron LMS-1 Latch Monitor for ANSI - 2-3/4 - Strike - SPDT - 3Amp

Features: ? Electronically verify mechanical latch and bolt positions ? Detect and report that a door is actually latched or bolted, not just closed ? Installs easily concealed behind existing hardware ? Requires no jamb or strike plate modification ? LMS-1 includes a single SPDT switch and fits any standard 2-3/4" ANSI cutout ? MagnaCare Lifetime Replacement No Fault Warranty ? UL Listed

Contact Rating:SPDT 2 Amp at 24V

Operating Temperature:-40 to +160F [-40 to +71C]

Model:LMS1

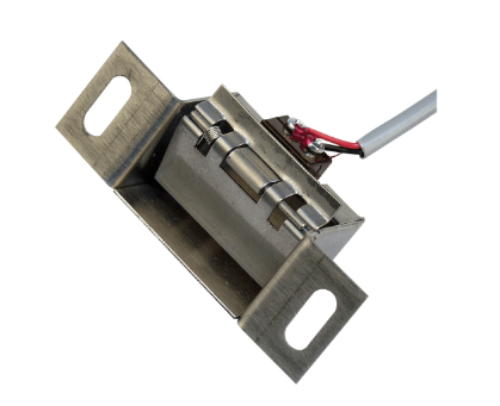

LMS-11

Securitron LMS-1 Latch Monitor for ANSI - 2-3/4 - Strike - SPDT - 3Amp

Product code: LMS1

In Stock

$102.05

$102.05

? Ul 634 Listed ? ULC/ORD-C634 Listed ? ANSI/UL 294 Listed ? CSFM - California State Fire Marshal Approved ? Patent Numbers : 5,757,269; 5,825,288

LMS-11

Securitron LMS-1 Latch Monitor for ANSI - 2-3/4 - Strike - SPDT - 3Amp

Product code: LMS1

In Stock

$102.05

$102.05
