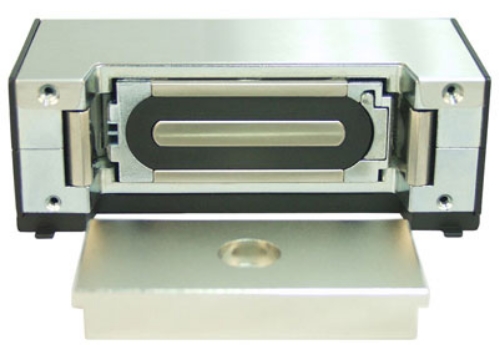

Securitron MM15DT Electromechanical Maglock - Satin Stainless (SS) - Door Position Switch (DPS) - Anti-Tamper Sensor - 4000 lbs

Securitron MM15DT Electromechanical Maglock - Satin Stainless (SS) - Door Position Switch (DPS) - Anti-Tamper Sensor - 4000 lbs

Features: 4000 lbs. holding force provides an unmatched level of security Dual voltage (12/24) and dual current (AC/DC) operation Mounting plate provides easy and accurate installation Fail Safe, but can be installed with a battery backup power supply Ideally for mental health care and auxiliary detention facilities and other high-risk locations MagnaCare Lifetime Replacement No Fault Warranty Brackets and accessories to configure any opening Indoor use only UL Listed

Description: Door Position Switch (DPS):The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Anti-Tamper Sensor:The Anti-Tamper Sensor provides an SPDT (Single Pole Double Throw) switch output that indicates if the wire access chamber cover has been tampered with or removed. When connected to an alarm point on an alarm panel or access control system it offers real-time notification of tampering attempts.

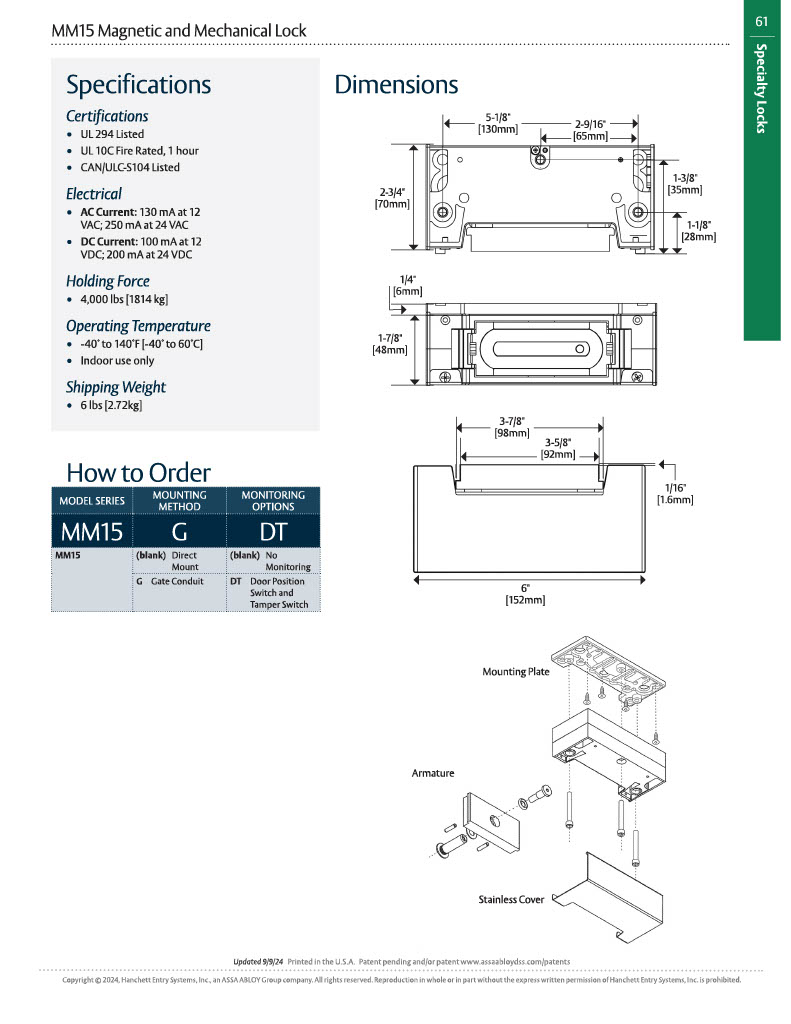

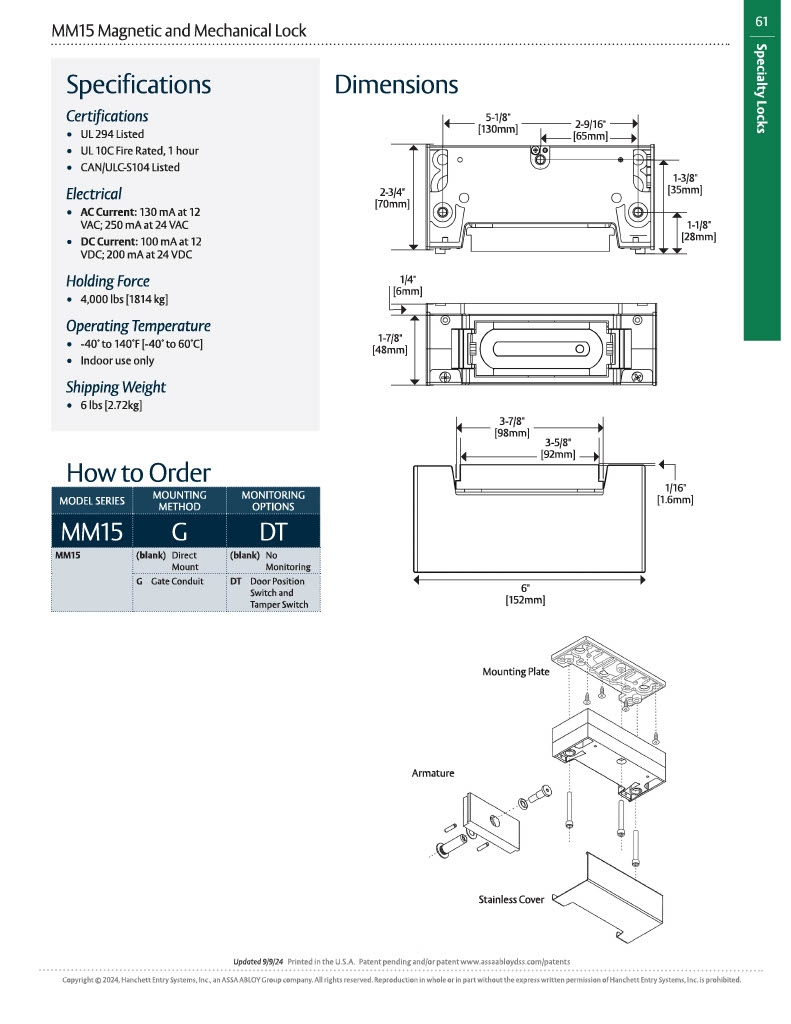

Holding Force:4000lbs [1814 kg]

Dimensions: 6"Lx1-7/8"Dx2-3/4"H

Current Draw and Voltage:AC Current: 130mA max at 12VAC, 250mA max at 24VAC DC Current: 100mA max at 12VDC, 200mA max at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:6 lbs.

Finishes:US26D/626 - Brushed Stainless

Model:MM15DT

 ULC Listed CAN/ULC - S533 Listed ANSI/UL 294 Listed CSFM - California State Fire Marshal Approved
