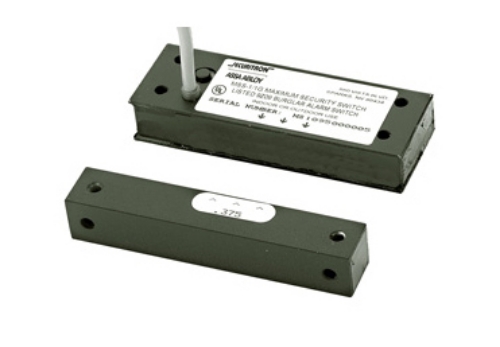

Securitron MSS-1 - Magnetic Switch - High Security - Surface Mount

Product Details

Securitron MSS-1 - Magnetic Switch - High Security - Surface Mount

Features:

Interfaces to access control and alarm systems for remote indication of open/closed statusUnique "mated" magnetic contact for preventing defeat attempts by foreign magnetsCan be used to provide initiate signal to XDT delayed egress timerHidden anti-tamper outputLayered protection for tamper detection and reportingSPDT ContactMagnacare Lifetime Replacement No Fault

Dimensions: Contact: 3/4"Hx4-1/4"Lx3/4"D Switch: 1-1/2"Hx4-1/4"Lx3/4"D

Electrical: Main Output: SPDT at max of 125mA at 24V; 250mA at 12V Tamper Output: Closed when secure; open to alarm - 1 Amp max current

Operating Temperature:-40 to +150F [-40 to +65C]

Shipping Weight:1.5 lbs

Model:MSS1

Securitron MSS-1 - Magnetic Switch - High Security - Surface Mount

SKU: MSS1

In Stock

$175.14

$278.00

You saved $102.86

About this item

MSS is used to provide nearly undefeatable door monitoring in the highest security areas

Securitron MSS-1 - Magnetic Switch - High Security - Surface Mount

Features:

Interfaces to access control and alarm systems for remote indication of open/closed statusUnique "mated" magnetic contact for preventing defeat attempts by foreign magnetsCan be used to provide initiate signal to XDT delayed egress timerHidden anti-tamper outputLayered protection for tamper detection and reportingSPDT ContactMagnacare Lifetime Replacement No Fault

Dimensions: Contact: 3/4"Hx4-1/4"Lx3/4"D Switch: 1-1/2"Hx4-1/4"Lx3/4"D

Electrical: Main Output: SPDT at max of 125mA at 24V; 250mA at 12V Tamper Output: Closed when secure; open to alarm - 1 Amp max current

Operating Temperature:-40 to +150F [-40 to +65C]

Shipping Weight:1.5 lbs

Model:MSS1

MSS-1
Securitron MSS-1 - Magnetic Switch - High Security - Surface Mount

Product code: MSS1

In Stock

$278.00

$175.14

UL 634C ListedULC/ORD-C634 ListedPatent Number: 5,668,533

MSS-1
Securitron MSS-1 - Magnetic Switch - High Security - Surface Mount

Product code: MSS1

In Stock

$278.00

$175.14
