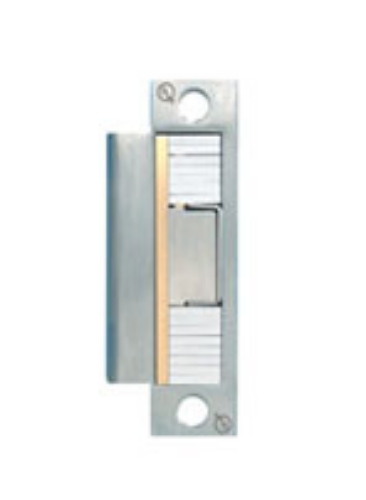

Securitron MUNL-626 Electromechanical Maglock - Mortise Unlatch

Product Details

Securitron MUNL Electromechanical Maglock - Mortise Unlatch

Features: No cutting or altering of the jamb required Releases under preload Fits standard ANSI 4-7/8" strike cutout Motorized, no solenoids Fully concealed installation Maintains dead-latch function at all times Continuous duty Latch status sensor is standard One model works with most North American Mortise Locks (Sargent 7800 and 8200 require tab kit model #STK-1 for retrofit installations)

Current Draw and Voltage: 12VDC: 40mA continuous, minimum 700mA when operating 24VDC: 40mA continuous, minimum 500mA when operating Higher capacity supply (1-4 Amps) is recommended for startup inrush to achieve best operation under pre-load

Operating Temperature:-20 to +125F [-29 to +52C]

Shipping Weight:2 lbs [0.91kg]

Finishes: US26D/626 - Stainless Steel

Model:MUNL, MUNL12, MUNL12605, MUNL12626, MUNL12613, MUNL24, MUNL24605, MUNL24626, MUNL24613

Securitron MUNL-626 Electromechanical Maglock - Mortise Unlatch

SKU: MUNL

In Stock

Voltage *

$614.88

About this item

Mortise UnLatch is for any application where an electric strike would be used for a mortise type lock. The Mortise UnLatch includes field adjustability for latch and deadlatch positions, releases under pressure and includes a latch status monitoring output.

Resources

No resources added to this product.

Securitron MUNL Electromechanical Maglock - Mortise Unlatch

Features: No cutting or altering of the jamb required Releases under preload Fits standard ANSI 4-7/8" strike cutout Motorized, no solenoids Fully concealed installation Maintains dead-latch function at all times Continuous duty Latch status sensor is standard One model works with most North American Mortise Locks (Sargent 7800 and 8200 require tab kit model #STK-1 for retrofit installations)

Current Draw and Voltage: 12VDC: 40mA continuous, minimum 700mA when operating 24VDC: 40mA continuous, minimum 500mA when operating Higher capacity supply (1-4 Amps) is recommended for startup inrush to achieve best operation under pre-load

Operating Temperature:-20 to +125F [-29 to +52C]

Shipping Weight:2 lbs [0.91kg]

Finishes: US26D/626 - Stainless Steel

Model:MUNL, MUNL12, MUNL12605, MUNL12626, MUNL12613, MUNL24, MUNL24605, MUNL24626, MUNL24613

MUNL1
Securitron MUNL-626 Electromechanical Maglock - Mortise Unlatch

Product code: MUNL

In Stock

$854.00

$614.88

 UL 10B Listed UL 10C Listed UL listed to ANSI/SDI-BHMA A250.13 (60PSI) Windstorm Patent Numbers: 6,022,056; 6,581,991; 6,902,214
