Securitron RB-4-24 - Relay Board - 24VDC

RB-4-2444
1-Page1-AADSS1204599
RB-4-2444
1-Page1-AADSS1204599
naxt
prev

Product Details

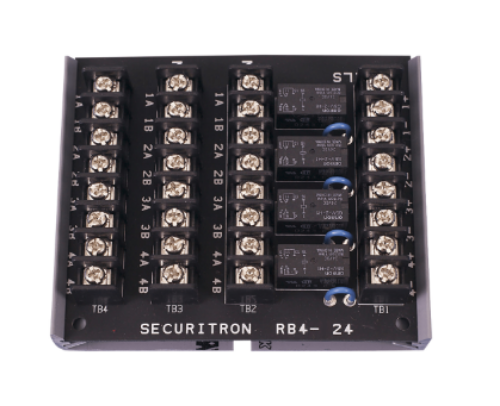

Securitron RB-4-24 - Relay Board - 24VDC

Features:

Adds relays for uses including shunting, interlocking and reportingIndividual coil connections - common negative or positiveReplaces socket mount relaysMounts 4 DPDT relays with 2 Amp contactsAll dry contact connections are brought out on screw terminalsRelays have low current coils (13mA at 12VDC; 8mA at 24VDC)Allows operation from most LED drive outputs

Electrical Max Draw:32mA

Operating Temperature:-13 to +158F [-25 to +70C]

Model:RB424

Securitron RB-4-24 - Relay Board - 24VDC

SKU: RB424

In Stock
Picture for manufacturer Securitron
icon Chat

$105.12

About this item

The RB4 provides Normally - Open or Normally - Closed relays that can be interconnnected.Ideal for interlock installations or wherever a basic relay board is used to trigger action, shunt alarms or report status from an access control system.

Resources

Securitron RB-4-24 - Relay Board - 24VDC

Features:

Adds relays for uses including shunting, interlocking and reportingIndividual coil connections - common negative or positiveReplaces socket mount relaysMounts 4 DPDT relays with 2 Amp contactsAll dry contact connections are brought out on screw terminalsRelays have low current coils (13mA at 12VDC; 8mA at 24VDC)Allows operation from most LED drive outputs

Electrical Max Draw:32mA

Operating Temperature:-13 to +158F [-25 to +70C]

Model:RB424

RB-4-2444
Securitron RB-4-24 - Relay Board - 24VDC

Product code: RB424

In Stock

$146.00

$105.12

RB-4-2444
Securitron RB-4-24 - Relay Board - 24VDC

Product code: RB424

In Stock

$146.00

$105.12

Securitron RB-4-24 - Relay Board - 24VDC

SKU: RB424
