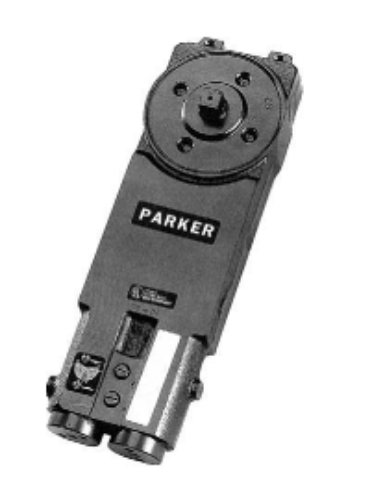

S.Parker 40290 90 Degree Overhead Concealed Door Closer - Body Only - Light

About this item

S.Parker 40290 90 Degree Overhead Concealed Door Closer - Body Only - Light

Description And Features

Door Size: 30" & Under (760mm & Under)

Maxium Door Weight: 155 lbs.(70 kgs.), 8 1/2 lbs. Closing Force

Spring Tension: Light, 4.7 lbs.

Type:

Hold Open: 90° Back Stop With Hold Open At 90°

Non Hold Open: 90° Back Stop - No Hold Open

• UL Listed

• Dual valves sweep and latching speeds are easily adjusted

• Center hung fits into a standard 4-inch header

• Center pivoted for single and double action doors provides positive “centering"

• Fully adjustable radial ball bearing pivots for floor and threshold mounting

• Temperature sensitive hydraulic fluid delivers consistent closure speed all the time

• 90° positive backstops

• ADA compliance available

• Complies with ANSI A156.4

• 5-year warranty

Model: 40290HO, 40290NHO, 402-90-NHO, 40290HO
