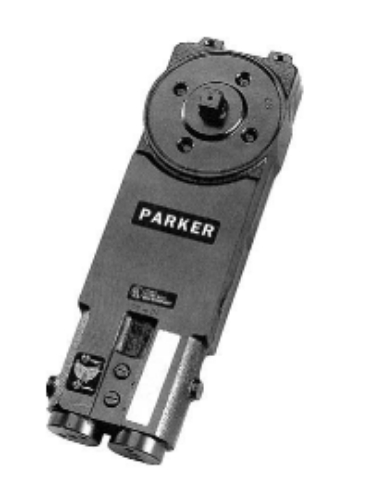

S.Parker 40390 90 Degree Overhead Concealed Door Closer - Body Only - Medium

About this item

S.Parker 40390 90 Degree Overhead Concealed Door Closer - Body Only  - Medium

Description And Features

Door Size: Up to 41" (Up to 1,040 mm)

Maxium Door Weight: 243 lbs.(110 kgs.), 12.48 lbs. Closing Force

Spring Tension: Medium, 7.4 lbs.

Type:

Hold Open: 90° Back Stop With Hold Open At 90°

Non Hold Open: 90° Back Stop - No Hold Open

• UL Listed

• Dual valves sweep and latching speeds are easily adjusted

• Center hung fits into a standard 4-inch header

• Center pivoted for single and double action doors provides positive “centering"

• Fully adjustable radial ball bearing pivots for floor and threshold mounting

• Temperature sensitive hydraulic fluid delivers consistent closure speed all the time

• 90° positive backstops

• ADA compliance available

• Complies with ANSI A156.4

• 5-year warranty

 Model: 40390HO, 40390NHO, 403-90-NHO, 40390HO

Resources

• http://www.sparker.com/content_doorclosers-overhe.html
