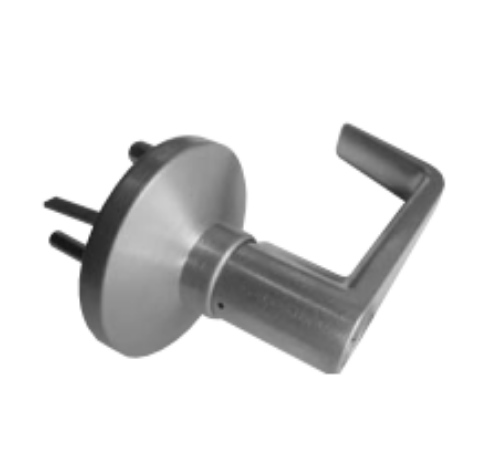

The S.Parker CSLL520 is an entry/classroom lever trim with an integrated clutch and solid tailpiece, built to add outside key access to S.Parker panic exit devices without compromising the device's fire-egress function. The LL520 series fits the S.Parker exit device lineup including the UL520, UL523, UL524, UL525, UL526, and 520V models, using the standard ANSI #161 door cutout so it installs on any commercial door prepped for cylindrical trim. It sits under S.Parker Device Trims within Exit Hardware.
What does the S.Parker CSLL520 lever trim do and which panic devices does it fit?
The CSLL520 mounts outside the door on a compatible S.Parker panic exit device, replacing a standard pull handle with a keyed lever that allows controlled outside access. In the entry function, key operation engages the clutch and retracts the latchbolt from outside. In classroom function, the outside lever stays locked and a key sets the lock state for the occupancy period without directly retracting the bolt. The inside push bar always retains free egress through the panic device's mechanism, keeping the opening life-safety code compliant. Confirmed compatible devices: UL520, UL523, UL524, UL525, UL526, and 520V. The ANSI #161 cutout prep fits any commercial door with standard cylindrical bore.
What is the difference between entry function and classroom function on exit device lever trim?
Entry function: the outside lever is normally locked; a key activates the clutch and the lever retracts the latchbolt for immediate access. Used on main entrance doors, vestibule doors, and perimeter openings where keyed entry on demand is required. Classroom function: the outside lever is always locked; a key from outside changes the lock state for the entire occupancy period without directly retracting the bolt on each use. The teacher or occupant locks the door from outside at the start of a session, and the lever stays locked until keyed open again. Neither function is field-convertible on this trim, so specify entry or classroom based on the opening's operational requirement before ordering.
What does the clutch mechanism do on the CSLL520 and why does it matter?
Without a clutch, torque applied to an outside lever transmits directly through the tailpiece to the exit device's internal mechanism, which can damage the device or create a forced-entry vulnerability. The clutch in the CSLL520 isolates the lever from the tailpiece during non-keyed operation: the lever rotates freely when outside access is not authorized. When the cylinder is activated by key, the clutch engages and couples the lever to the solid tailpiece, which retracts the latchbolt cleanly. This protects the panic device's mechanism from lever-attack torque, extends service life in high-traffic institutional applications, and maintains the device's UL compliance by keeping the egress function isolated from the access-control side.
How does the CSLL520 compare to other exit device lever trims?
The CSLL520 is specific to S.Parker's UL520 family of rim exit devices. For Corbin Russwin ED5200/ED5400 series devices, the comparable lever option is the Corbin Russwin L9/N9 Lever Trim; for a pull option on the same devices, the Corbin Russwin P9 Pull Trim. For thumbpiece trim on Corbin Russwin devices, see the TH9. For budget-tier entry lever trim, the Imperial (Taco) LHL-500 covers entry function on compatible devices. Exit device trims are device-family specific and not cross-compatible between manufacturers; confirm your exit device model before ordering trim.
Specifications
SKU: CSLL520DCH. Trim type: Lever with clutch and solid tailpiece. Function: Entry/Classroom. Compatible devices: S.Parker UL520, UL523, UL524, UL525, UL526, 520V. Door prep: Standard ANSI #161 cutout. Finish: DCH (Dull Chrome). Series: LL520. Additional model references: CS-LL520-DCH, CSLL520-DCH.
