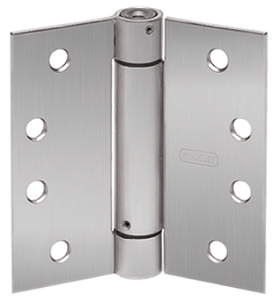

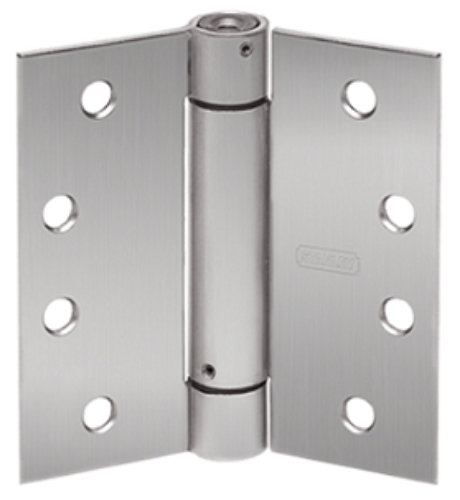

Stanley 2060R 4x4 Standard Weight Spring Hinge

Stanley 2060R *4" x 4"StandardWeight Spring Hinge*

For labeled fire doors, stairwell doors, motel and hotel guest room doors, apartment unit entrance doors.

Meets NFPA80 standard for 3 hour fire doors (NFPA-80 stipulates minimum of 2 spring hinges shall be used on labeled doors)

4" (102mm) size - approved for door up to 3' x 7' (914 x 2134mm)

Size Open:4" x 4" (102 x 102mm)

Gauge of Metal:.099" (2.5mm)

Flat Head Screws Per Piece:Machine: 8-12-24 x 1/2 with #9 head Wood: 8-9 x 1

Number of Spring Hinges Required:

For doors up to 3' 0" x 7' 0" x 1 3/4" (914 x 2134 x 44mm) not exceeding 50 lbs. (23Kg) use 1 each 2060R, with 2 each similar sized hinges

For doors up to 3' 0" x 7' 0" x 1 3/4" (914 x 2134 x 44mm) not exceeding 85 lbs. (39Kg) use 2 each 2060R, with 1 each similar sized hinge

For doors up to 3' 0" x 7' 0" x 1 3/4" (914 x 2134 x 44mm) not exceeding 110 lbs. (50Kg) use 3 each 2060R

Similar sized hinges used with spring hinges must present the same pivot point. When used as part of a complete listed assembly similar hinges must be the same as those tested. Otherwise, anti-friction hinges must be used.

Limited lifetime warranty for the life of the building

Internal ratchet mechanism eliminates loose adjustment pins

Closing power is adjustable up or down

Excellent alternative to more expensive overhead mounted closers

Model:StanleySpring Hinge,2060R4x4US26D,  2060R4x4USP, 2060R4x4US3,
