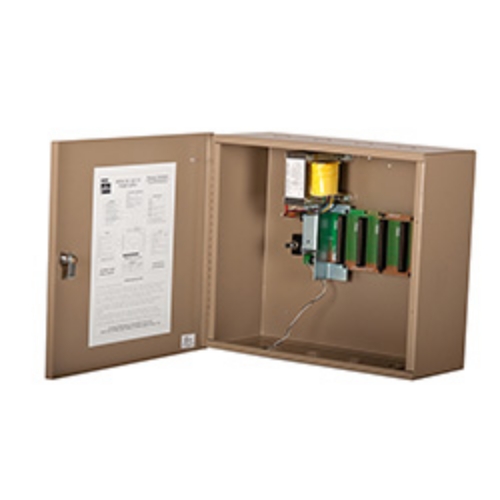

Precision ELR153 Power Supply, 3 ELR Device control modules

 ELR150 Series Power Supply

The ELR150 Series is a power supply REQUIRED to control ELR Devices.

The power supply contains a Motherboard that will accept up to four plug-in Control Modules. Each Control Module (part #CM150-08) controls one ELR Device and includes a Time Delay Feature.

The Time Delay provides a variable (0 - 4 minutes) Latch Retraction period in response to a momentary input.

Specifications:

- UL Listed for Class II Output. - UL 294 - Conforms to U.L. 294 Standards incorporating enhanced Access Control communication capabilities.  - Circuit breakers provide protection for Motherboard. - 115 or 230 Volt user selectable switch. - A.C. Input = 115 Volts at 1 Amp. - Battery Back-up / Power Tap available (see page 23). - LED Indicator - Provides clear indication that power is available to the supply. - Keyed Cabinet - To maintain safety and security, each Power Supply is equipped with a preinstalled key-cylinder. - Includes lockable box with key lock. - Dimensions: 16" W x 14" H x 6" D. - Weight: 15 lbs.
