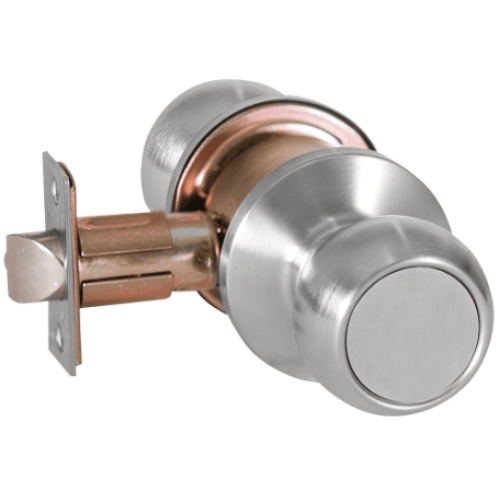

Stanley / BEST 6K30N Grade 2 Passage Set

Stanley / BEST 6K-3-0-N Grade 2 Passage Set

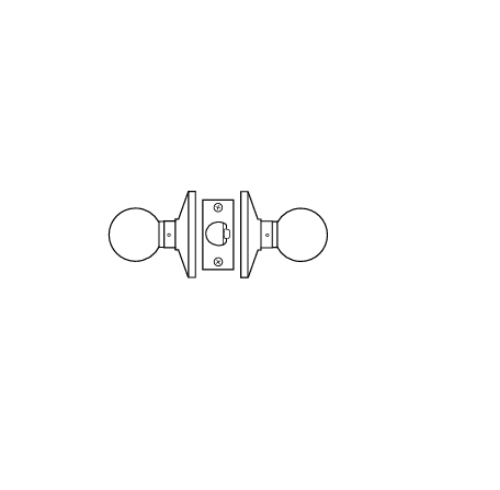

Function:*N*- ANSI # F75 Passage Set Lock

Latch operated by:Rotating inside knob, Rotating outside knob

Outside Lever Locked by:Cannot be locked

Outside Lever Unlocked by:Always unlocked

Inside Lever Locked by:Cannot be locked

Inside Lever Unlocked by:Always Unlocked

Backset: 2 3/4", 2 3/8" option

Case: 2 1/16" Dia. cylindrical, for 2 1/8" hole.

Knobs: 2" or 2 1/8" Dia. brass or bronze in round style.

Latch: 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32"

Material: Component parts include brass or bronze. Internal parts are brass or zinc dichromate steel.

Knob Style:  4- round,6- tulip

Mounting: 2 1/8" Dia. bore for lock housing, 1" Dia. or 7/8" Dia. for latch tube.

Roses: K -3"

Strike:      S3 - 4 7/8" x 1 1/4" with curved lip and box (ANSI A115.2 for 1 3/4" doors)     STK - (standard) 2 3/4" x 1 1/8" with curved lip & box (ANSI A115.2 for 1 3/8" doors).

Thickness of doors: 1 3/8" to 1 7/8" Standard. If thickness is greater, use our heavy duty locksets for specified door thickness.

Quick rekeying by BEST interchangeable core.

Snap-on inside rose (no exposed mounting screws).

Threaded outside rose adjustable for door thickness.

Keyed knob is removable only after removal of core.

Internal steel mechanisms are corrosion treated for normal atmospheric conditions.

Lockset reversible for either hand of door without removing keyed knob.

Underwriters Laboratories: 6K series Listed by Underwriters Laboratories for use on 3 Hr, A label for single (4x 8 ) doors.

Builders Hardware Manufacturers Association: 6K series Listed by BHMA for A156.2, Series 4000, Grade 2.

Model:Best Stanley 6K30N4CS3630
