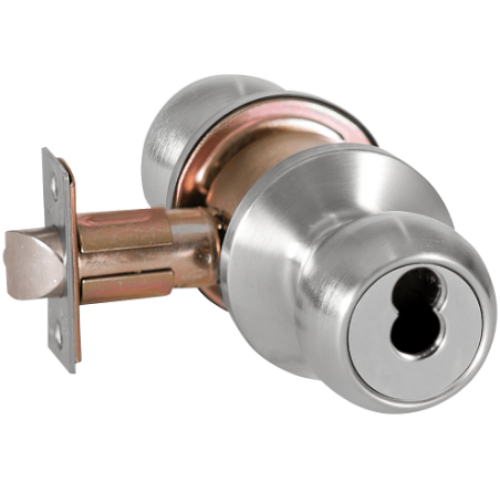

Stanley / BEST 6K37AB Grade 2 Entrance lock

Stanley / BEST 6K-3-7-AB Grade 2 Entrance lock

Function:ANSI # F109 (F81xF82) Entrance Lock

Latch operated by:Rotating inside knob, Rotating outside knob only when outside knob unlocked Turning key in outside knob

Outside Lever Locked by:Pushing the inside button Pushing and turning inside button keeps outside knob locked until the button is turned back

Outside Lever Unlocked by:Having button in vertical position and turning key, Turning inside knob Closing door

Inside Lever Locked by:Cannot be locked

Inside Lever Unlocked by:Always Unlocked

Backset: 2 3/4"

Case: 2 1/16" Dia. cylindrical, for 2 1/8" hole.

Finish: 630 - Satin Stainless Steel Finish

Knobs: 2" or 2 1/8" Dia. brass or bronze in round style.

Latch: 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32"

Material: Component parts include brass or bronze. Internal parts are brass or zinc dichromate steel.

Mounting: 2 1/8" Dia. bore for lock housing, 1" Dia. or 7/8" Dia. for latch tube.

Roses: K - 3" Dia.

Strike: S3 - 4 7/8" x 1 1/4" with curved lip and box (ANSI A115.2 for 1 3/4" doors).

Thickness of doors: 1 3/8" to 1 7/8" Standard. If thickness is greater, use our heavy duty locksets for specified door thickness.

Quick rekeying by BEST interchangeable core.

Snap-on inside rose (no exposed mounting screws).

Threaded outside rose adjustable for door thickness.

Keyed knob is removable only after removal of core.

Internal steel mechanisms are corrosion treated for normal atmospheric conditions.

Lockset reversible for either hand of door without removing keyed knob.

Underwriters Laboratories: 6K series Listed by Underwriters Laboratories for use on 3 Hr, A label for single (4x 8 ) doors.

Builders Hardware Manufacturers Association: 6K series Listed by BHMA for A156.2, Series 4000, Grade 2.

Model:Best Stanley 6K37AB4CS3630
