Product Details

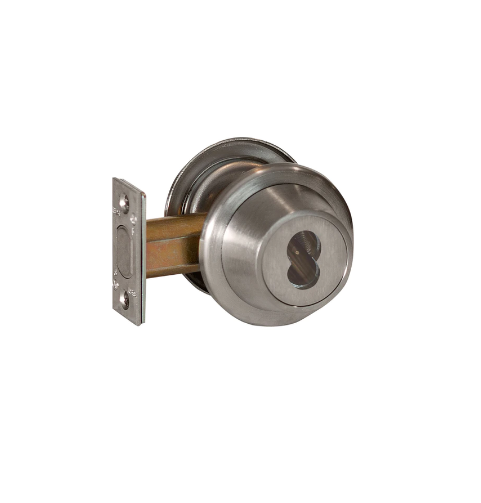

Stanley BEST 8T-2-7-M-STK Grade 1 Double Cylinder*Deadbolt - 2-3/8 Backset*
Deadbolt Operated by:Turning the key in the inside or outside cylinder. The inside mounting screws are concealed.
Function & Diag. ANSI (Fed. No.):E2141, E2142 (181M)
Core Housing: 7 pin housingaccepts all Best cores
Deadbolt: 1" throw, 5⁄8" x 7⁄8" solid stainless steel bolt. Housing fits 1" bore.
Door thickness: Fits 1 3⁄4" doors (standard)
Faceplate:1" x 2 1⁄4" brass or bronze base material.
Strike:8TSTK – Rectangular 1 1⁄8" x 2 3⁄4" (ANSI A156.36-2010)
Warranties:Three-year mechanical Three-year finish (613 carries no finish warranty)
Certifications
ANSI/BHMA A156.36-2010 Auxiliary Locks, Grade 1 with ICD series Core and 8TS
Series Strike – 8T Series
UL/cUL listed for use as auxiliary lock type on 3-hour fire doors
ANSI/ICC A117.1 Accessible and Usable Building and Facilities (ADA) section
404.2.6 compliant
