Stanley DAP-3 US26D Double Acting Door Pivot - Satin Chrome

Stanley DAP-3 US26D Double Acting Pivot - Satin Chrome

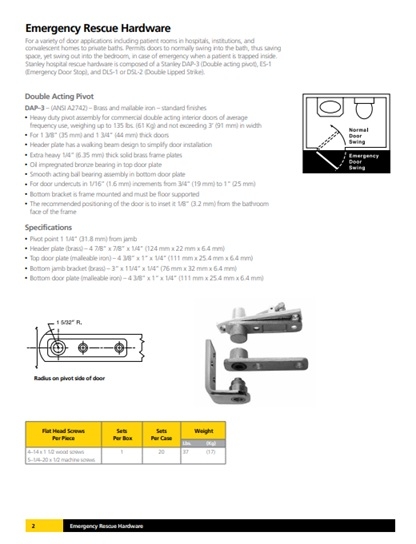

DAP-3(ANSI A2742) Brass and mallable iron standard finishes

Heavy duty pivot assembly for commercial double acting interior doors of average frequency use, weighing up to  135 lbs. (61 Kg) and not exceeding 3' (91mm) in width

For 1-3/8" (35 mm) and 1-3/4" (44mm) thick doors

Header plate has a walking beam design to simplify door installation

Extra heavy 1/4" (6.35mm) thick solid brass frame plates

Oil impregnated bronze bearing in top door plate

Smooth acting ball bearing assembly in bottom door plate

For door undercuts in 1/16" (1.6mm) increments from 3/4" (19mm) to 1" (25mm)

Bottom bracket is frame mounted and must be floor supported

The recommended positioning of the door is to inset it 1/8" (3.2 mm) from the bathroom face of the frame

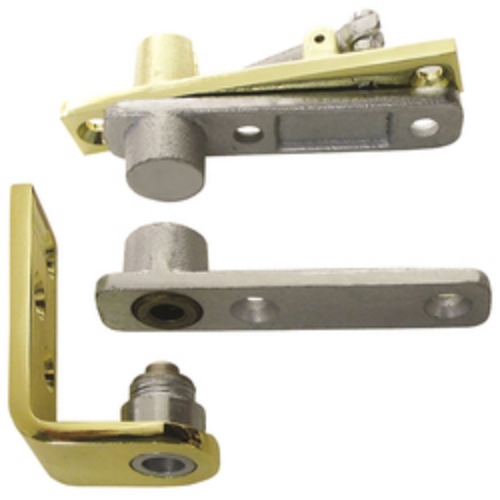

Specifications:Pivot point 1-1/4" (31.8mm) from jamb Header plate (brass) 4-7/8" x 7/8" x 1/4" (124mm x 22mm x 6.4mm)

Top door plate(malleable iron) 4-3/8" x 1" x 1/4" (111mm x 25.4mm x 6.4mm)

Bottom jamb bracket(brass) 3" x 1-1/4" x 1/4" (76mm x 32mm x 6.4mm)

Bottom door plate(malleable iron)............4-3/8" x 1" x 1/4" (111mm x 25.4mm x 6.4mm)

Flat Head Screws Per Set: 414 x 1-1/2 wood screws,51/4'20 x 1/2 machine screws

Model:Stanley DAP3US26D, DAP326D
