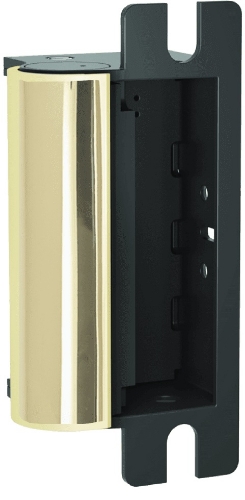

Hes 1006 605 Electric Strike - Bright Brass

Hes 1006-605 Electric Strike - Fail secure (standard) - Bright Brass

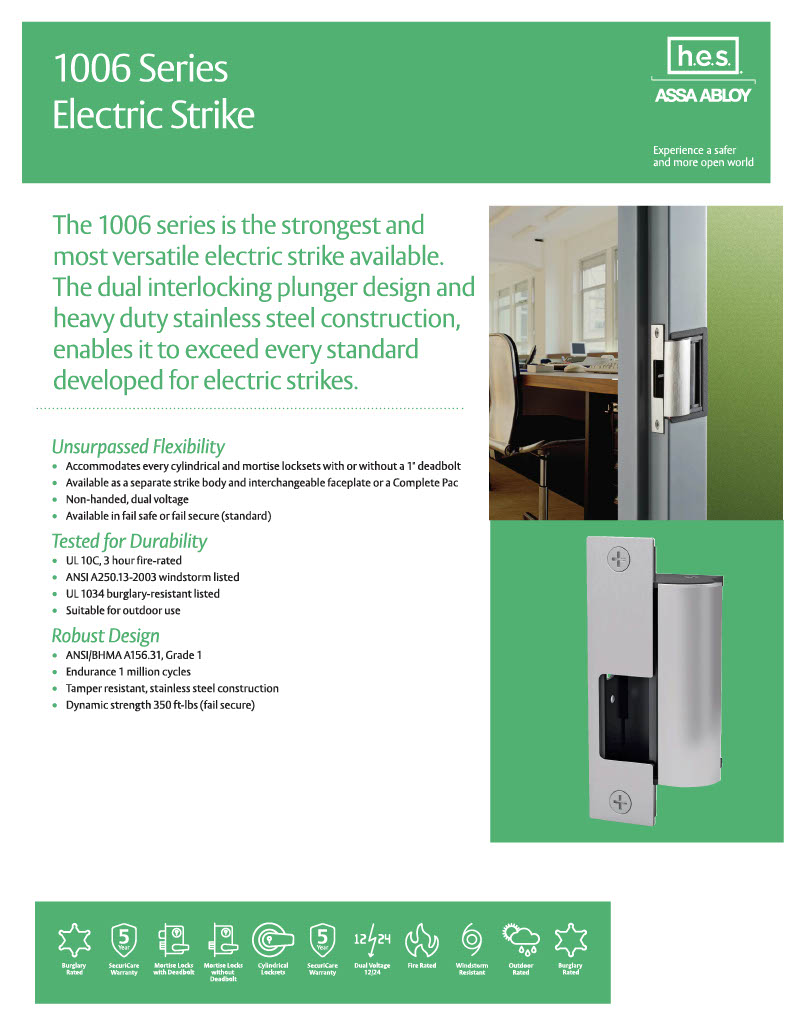

Features: The 1006 series is the strongest and most versatile electric strike available.

The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes.

With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate.

Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

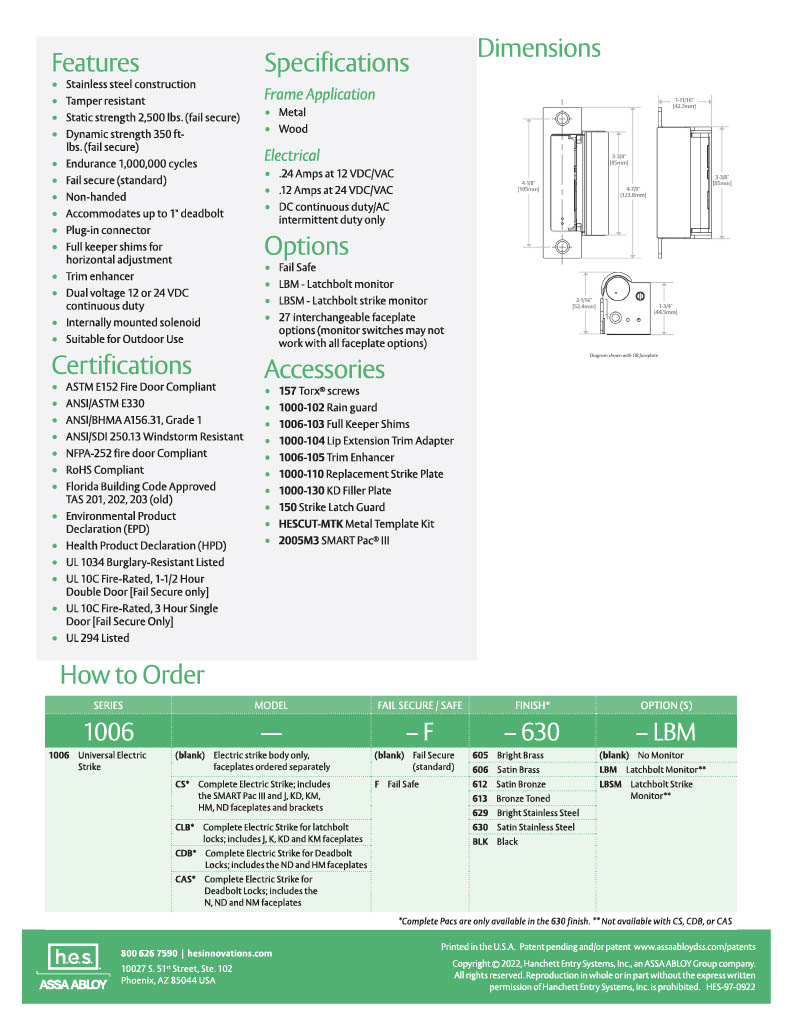

 Stainless steel construction Tamper resistant Static strength 3070 lbs. (fail secure) Dynamic strength 350 ft-lbs. (fail secure) Endurance 1,000,000 cycles Fail secure (standard) Dual voltage 12 or 24VDC continuous duty Non-handed Internally mounted solenoid Accommodates up to 1" deadbolt Plug-in connector Full keeper shims for horizontal adjustment Trim enhancer Five year limited warrantyFrame Application: - Metal - Wood

Electrical: .45 Amps at 12VDC continuous duty - .25 Amps at24VDC continuous duty

Finish: 605 - Bright brass

Optional Features: LBM Latchbolt monitor - LBSM Latchbolt strike monitor

Faceplate Options:

Z Option For use with: Unit and Mono lock.

J-2 Option For use with: All cylindrical locks with up to a 3/4" latchbolt.

KM-2 Option For use with: Mortise locksets with a normally extended 1" deadbolt.

J Option For use with: Cylindrical locksets with up to 3/4" throw and all locksets with center-lined bolts. Compatible locksets: All brands of cylindrical latchbolts

KD Option For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Dorma 9500, Jackson, Sargent (7700 & 8100), Schlage, Yale (8700)

KM Option For use with: Mortise locksets up to 3/4" throw latchbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon, Marks, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

AD Option For use with: Mortise locksets with a normally extended 1" deadbolt. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)

AM Option For use with: Mortise locksets with a normally extended 1" deadbolt. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

HM Option For use with: Mortise locksets with a 1" deadbolt. Strike will not release when deadbolt is extended. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

HTD Option For use with: Mortise locksets with a 1" deadbolt and no deadlatch or a center positioned deadlatch. Strike will not release when deadbolt is extended. Compatible locksets: Sargent (7700 & 8100), Schlage, Yale (8700)

NM Option For use with: Mortise locksets with a deadbolt used for night latch function only. Compatible locksets: Accurate, Arrow, Baldwin, Best, Corbin Russwin, Falcon (45H, 47H, 34H & 37H), Marks, Omnia, PDQ, Sargent (7800, 8200 & 9200), Yale (8800)

Model:HES,1006605, 1006605LB, 1006605LBSM, 1006J605,1006DB605, 1006TD605, 1006T605, 1006NM605, 1006ND605, 1006HTD605, 1006HM605, 1006AD605, 1006KM605, 1006KD605, 1006DB2605, 1006KM2605, 1006J2605, 1006R605, 1006Z605, 1006E605, 1006LB605, Electric Strike

 UL 10C fire-rated, 3 hour single door (fail secure only) UL 10C fire-rated, 1-1/2 hour double door (fail secure only) CAN4-S104(ULC-S104) fire door conformant ANSI A250.13-2003 windstorm listed UL 1034 burglary-resistant listed and suitable for outdoor use ANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformant ASTM-E152 fire door conformant MEA New York City accepted Florida Building Code approved Patents Number: 6021038 & 6595564
