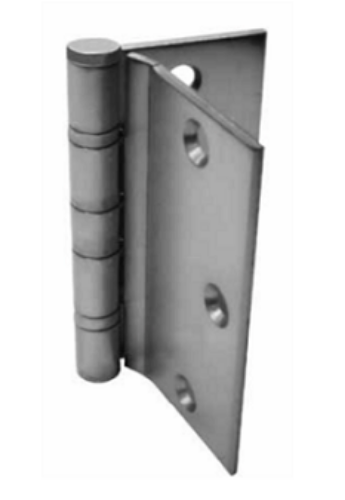

Stanley FBB112 4-1/2 Five Knuckle Ball Bearing Hinge, Half Surface, Standard Weight
Product Details
Stanley FBB112 4-1/2 Five Knuckle Ball Bearing Hinge, Half Surface, Standard Weight
For medium weight wood, kalamein, or mineral core doors with edge rails that
won't hold screws, hung on hollow metal frames, of average frequency
Equipped with two Stanley permanently lubricated non-detachable ball
bearings
(ANSI A2412)Brass or bronze - highly polished and painted or plated(ANSI A5412)Stainless steel - highly polished(ANSI A5412)Stainless steel - satin finish
Size Length of Joint:4-1/2" (114mm)
Width:Frame Leaf: 2 1/16" (52.4mm) Door Leaf: 2 9/16" (65.1mm)
Offset:9/16" (14.3mm)
Flat Head Screws:Frame Leaf 4-12-24 x 1/2 Door Leaf 3-1/4-20 x 2
Gauge of Metal:
.134 (3.4mm)
Pins in non-ferrous hinges are stainless steel
Reversible flush tips and pins
Hinges can be furnished with hospital tips (HT)
Consider using a back plate with these hinges
Packed with machine screws and grommet nuts for 1 3/4" door
Model: Stanley FBB112 4-1/2 26D , FBB1124-1/226D, FBB1124-1/2 P, FBB1124-1/2 4, FBB1124-1/210B,
