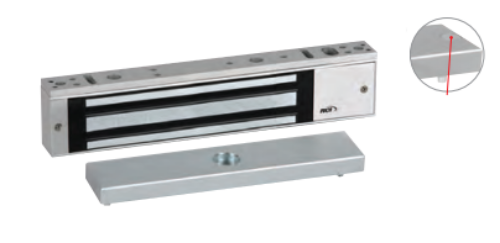

RCI 8371-DSS Surface MiniMag Electromagnetic Lock W/ Door Status Sensor, For Single Doors

RCI ( Rutherford) 8371-DSS Surface MiniMag Electromagnetic Lock W/ Door Status Sensor, For Single Doors

Description And Features:

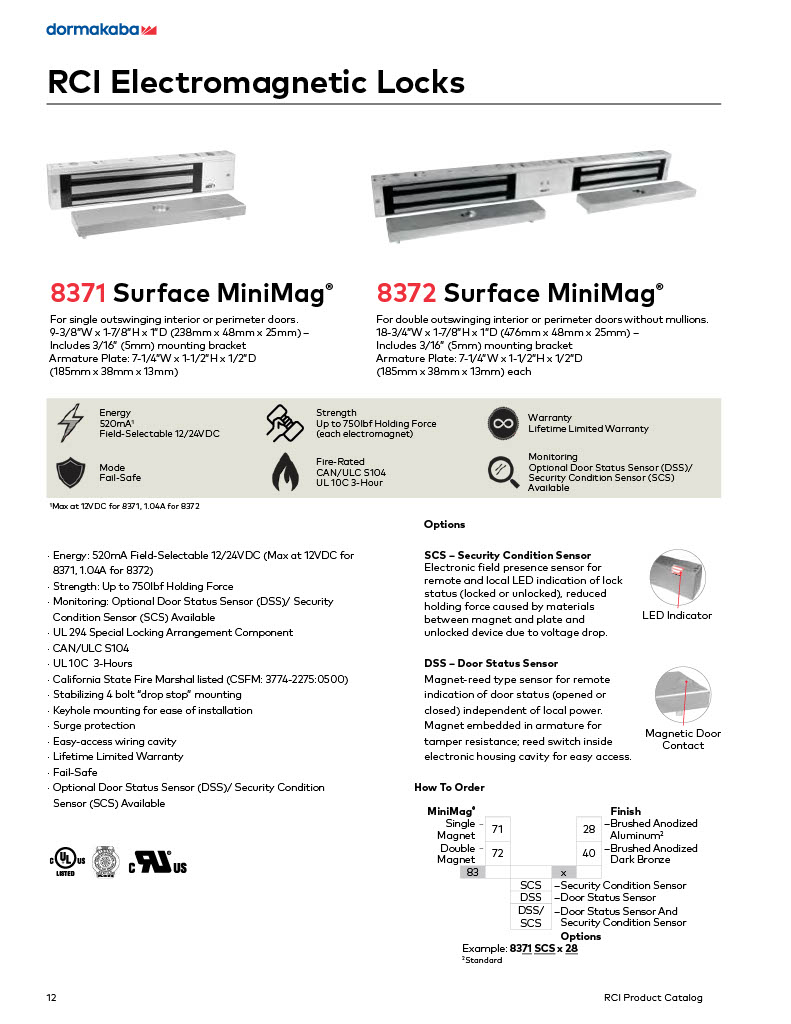

 For single outswinging interior doors.Door Status Sensor (DSS)– Magnet-reed type sensor for remote indication of door status (opened or closed) independent of local power. Magnet embeddedin armature for tamper resistance; reed switch inside electronic housing cavity for easy access. 9-3/8"W x 1-7/8"H x 1"D (238mm x 48mm x 25mm) – Includes 3/16" (5mm) mounting bracket Armature Plate: 7-1/4"W x 1-1/2"H x 1/2"D (185mm x 38mm x 13mm) Mode: Fail-Safe Stabilizing 4 bolt “drop stop" mounting Adjustable keyhole mounting Surge protection Designed to overcome residual magnetism Easy-access wiring cavity Hardened steel armature nut Includes 3/8" (9.5mm) armature plate Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish UL 294 Special Locking Arrangement Component (6th Edition) UL 10C Auxiliary Locks Listed for fire doors rated up to 1-hour California State Fire Marshal Listed (CSFM: 3774-2127:0100) Warranty: Lifetime Limited Warranty Fire-Rated: CAN/ULC S104, UL 10C 1-Hour Strength: Up To 750lbf Holding Force Energy: 520mA1, Field-Selectable 12/24VDC Model:8371, 8371DSS-28, 8371DSS-40, 8371DSS28, 8371DSS40, 8371-DSS-28, 8371-DSS-40
