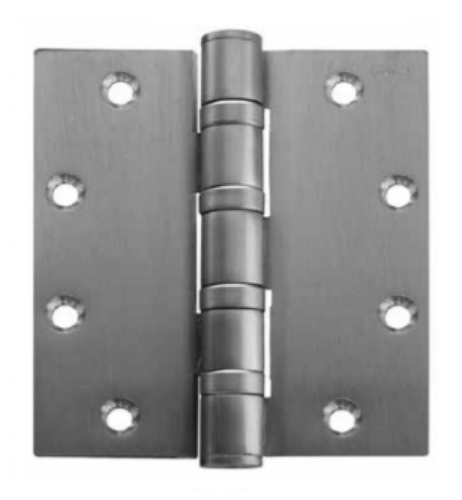

Stanley FBB168NRP 5x5 Heavy Weight Five Knuckle Ball Bearing Hinge

Stanley FBB168NRP 5" x 5" Heavy Weight Five Knuckle Ball Bearing*Hinge*

For use on heavy doors or doors where high frequency is expected such as entrance doors to office buildings, stores, public buildings and corridor entrance doors to offices

Equipped with four Stanley permanently lubricated non-detachable ball bearings

(ANSI A8111) Steel - polished and plated or phosphated and prime coated for painting

(NRP)non-removable pins

Hinge Size:5" x 5"

Hinge Type:Full Mortise

Bearing Type: 4 Ball Bearing

Gauge of Metal:190 (4.8 mm)

Flat Head Screws Per Piece:Wood Screws: 8-12 x 1 1/2- Machine Screws: 8 - 12-24 x 1/2

All hinges have template screw hole location for use on either wood or hollow metal doors and frames

Pins in non-ferrous hinges are stainless steel

Hole in bottom tip for easy pin removal

Reversible flush tips and pins

Finishes: P - Primed for Painting, US3 - Bright Brass, US10 Satin Bronze, US26D - Satin Chrome, 10A - Oxidized Satin Bronze Relieved Clear Coated

Model: Stanley FBB168NRP 5X5 US26D, FBB168NRP 5X5 P, FBB179NRP 5X5 US3 , FBB168NRP 5X5 US4 ,FBB168NRP 5X5 US26, FBB168NRP  5X5 US15, FBB168NRP 5X5 US10B, FBB168NRPUS 5X5 10A, FBB168NRP 5X5 US10 ,
