Product Details

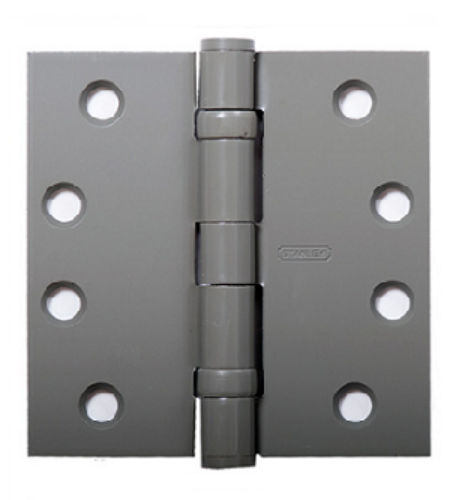

Stanley FBB191 5" x 4-1/2" Five Knuckle Ball Bearing*Hinge*
For medium weight doors of average frequency
All hinges have template screw hole location for use on either wood or hollow metal doors and frames
Hinge Size:*5" x 4-1/2"*
Hinge Type:
Full Mortise
Bearing Type:2 Ball Bearing
Gauge of Metal:.146 Inches - (3.7 mm)
Flat Head Screws Per Piece:Wood Screws: 4-12 x 1 1/4- Machine Screws: 8 - 12-24 x 1/2
(ANSI A2112)Brass or bronze - polished and plated or painted(ANSI A5112)Stainless steel - highly polished(ANSI A5112)Stainless steel - satin finish
Pins in non-ferrous hinges are stainless steel
Hole in bottom tip for easy pin removal
Reversible flush tips and pins
Finishes: P - Primed for Painting, US26D - Satin Chrome, US3 - Bright Brass, US4 - Satin Brass,
Model: Stanley FBB179 5x4-1/2 US26D, FBB179, FBB179 5x4-1/2 US32D, FBB179 5x4-1/2 US3,
