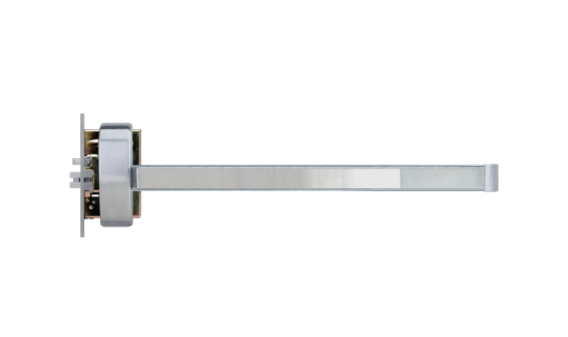

Cal-Royal N-MR9800 Mortise Lock Rim Exit Device

Cal-Royal N-MR9800 Mortise Lock Rim Exit Device

Product Details

Cal-Royal N-MR9800 Mortise Lock Rim Push Bar Exit Device

Americans with Disability Act (ADA) Compliant, 5 lbs opening force on ADA products only UL Listed for Panic and UL10C, UBC 7-2-1997 codes. UL Listed for Fire Exit Hardware. 3 hours.

For Doors- Wood / Metal 1 3/4" (44.5 mm) minimum thickness, 4 1/2" (114 mm) minimum stile width

Mortise Lock Case- Steel

Head Chassis- Aluminum

Chassis Cover- Stainless Steel

Mounting- Furnished standard with wood and machine screws

End Cap- Stainless Steel Construction

Handing- Handed. Easily Field Reversible. Specify RHR or LHR for convenience

ANSI Standard- A156.3, Grade 1

Strikes- Standard ANSI Strike (Stainless Steel)

Fire Exit Hardware- N-FMR9800 Series for fire exit hardware for all types of 8' x 8' double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

Mortise Lock- Grade (1) for 1 3/4" (44.5 mm) thick doors. Handed, Field Reversible. Specify RHR or LHR. Fits door prepared for ANSI Standard A115.1

Trim- See Trim section

Electronic Functions- (ELR) Electrical Latch Retraction and RX & LX Signal Switch available

Dogging Feature- Cylinder dogging available for non-fire rated applications

Anti-Microbial Coating- Available on US32D only. Use part # ANTB-EXIT

Model:MR9800EO36 / FMR9800EO36 - MR9805EO36 / FMR9805EO36 Actual lenght: 32" Max cut down: 6" Door size: 30" to 36" door width

Model:MR9800EO48 / FMR9800EO48 - MR9805EO48 / FMR9805EO48 Actual lenght: 44" Max cut down: 12" Door size: 36 to 48 door width

Model:MR9800EO36, FMR9800EO36, MR9800EO48, FMR9800EO48,MR9805EO36, FMR9805EO36, MR9805EO48, FMR9805EO48, US32D, US10B

Cal-Royal N-MR9800 Mortise Lock Rim Exit Device

SKU: NMR9800

In Stock

$609.08

$721.87

You saved $112.79

About this item

For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement ANSI A156.3, GRADE 1 heavy duty exit device Americans with Disability Act (ADA) Compliant, 5 lbs opening force on ADA products only UL Listed for Panic and UL10C, UBC 7-2-1997 codes. UL Listed for Fire Exit Hardware. 3 hours.

Resources

No resources added to this product.

Cal-Royal N-MR9800 Mortise Lock Rim Push Bar Exit Device

Americans with Disability Act (ADA) Compliant, 5 lbs opening force on ADA products only UL Listed for Panic and UL10C, UBC 7-2-1997 codes. UL Listed for Fire Exit Hardware. 3 hours.

For Doors- Wood / Metal 1 3/4" (44.5 mm) minimum thickness, 4 1/2" (114 mm) minimum stile width

Mortise Lock Case- Steel

Head Chassis- Aluminum

Chassis Cover- Stainless Steel

Mounting- Furnished standard with wood and machine screws

End Cap- Stainless Steel Construction

Handing- Handed. Easily Field Reversible. Specify RHR or LHR for convenience

ANSI Standard- A156.3, Grade 1

Strikes- Standard ANSI Strike (Stainless Steel)

Fire Exit Hardware- N-FMR9800 Series for fire exit hardware for all types of 8' x 8' double doors for up to 3-hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

Mortise Lock- Grade (1) for 1 3/4" (44.5 mm) thick doors. Handed, Field Reversible. Specify RHR or LHR. Fits door prepared for ANSI Standard A115.1

Trim- See Trim section

Electronic Functions- (ELR) Electrical Latch Retraction and RX & LX Signal Switch available

Dogging Feature- Cylinder dogging available for non-fire rated applications

Anti-Microbial Coating- Available on US32D only. Use part # ANTB-EXIT

Model:MR9800EO36 / FMR9800EO36 - MR9805EO36 / FMR9805EO36 Actual lenght: 32" Max cut down: 6" Door size: 30" to 36" door width

Model:MR9800EO48 / FMR9800EO48 - MR9805EO48 / FMR9805EO48 Actual lenght: 44" Max cut down: 12" Door size: 36 to 48 door width

Model:MR9800EO36, FMR9800EO36, MR9800EO48, FMR9800EO48,MR9805EO36, FMR9805EO36, MR9805EO48, FMR9805EO48, US32D, US10B

N-MR9800

Cal-Royal N-MR9800 Mortise Lock Rim Exit Device

Product code: NMR9800

In Stock

$721.87

$609.08

N-MR9800

Cal-Royal N-MR9800 Mortise Lock Rim Exit Device

Product code: NMR9800

In Stock

$721.87

$609.08

Related products

Cal-Royal A7700EO / AF7700EO Rim Push Bar Exit Panic Device

Product code: W561BD

In Stock

$582.11

$491.15

Cal-Royal NALRMA770036 / FNALRMA770036 Rim Alarm Exit Panic Device - For 36" Doors

Product code: W561BD

In Stock

$866.79

$731.35

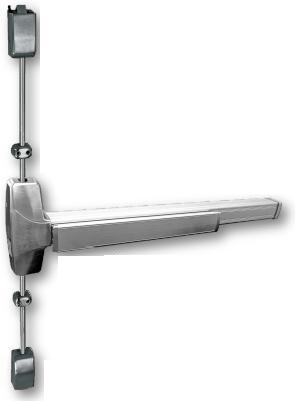

Cal-Royal A7760V / AF7760V Surface Vertical Rod Panic Bar Exit Device

Product code: W561BD

In Stock

$761.69

$642.76

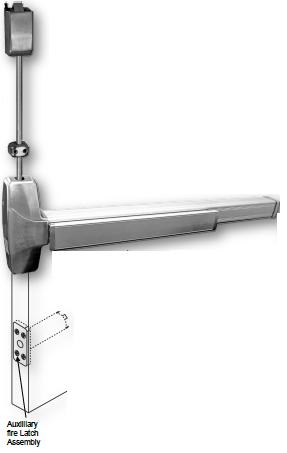

Cal-Royal ALBR7760V / ALBRF7760V Surface Vertical Rod Exit Device Less Bottom Rod

Product code: W561BD

In Stock

$761.79

$642.76

Cal-Royal A9800EO / AF9800EO Rim Push Bar Exit Panic Device

Product code: W561BD

In Stock

$456.52

$385.19

Cal-Royal NALRMA9800EO Rim Push Bar Alarm Exit Device

Product code: W561BD

In Stock

$705.82

$595.54

Cal-Royala9860V

Cal-Royal A9860V / AF9860V Surface Vertical Rod Push Bar Exit Panic Device

Product code: W561BD

In Stock

$602.84

$508.65

Cal-Royal ALBR9860V / ALBRF9860 Vertical Rod Exit Device Less Bottom Rod

Product code: W561BD

In Stock

$602.84

$508.65

Cal-Royal N-MR9800 Mortise Lock Rim Exit Device

Product code: W561BD

In Stock

$721.87

$609.08

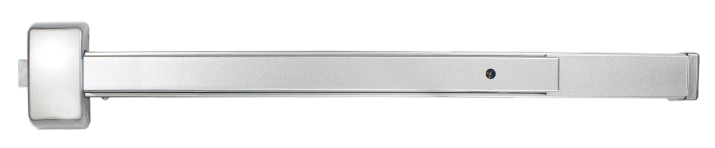

Cal-Royal A2200EO / AF2200EO Rim Push Bar Exit Panic Device
