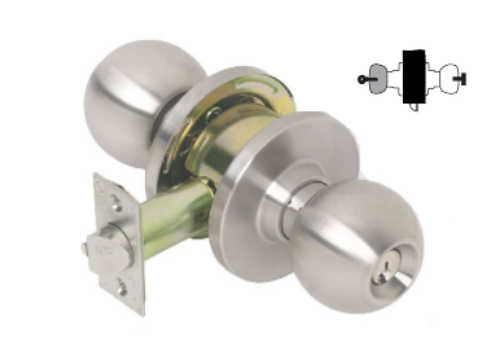

Tell KC2381, Entrance, Heavy-Duty Commercial Grade 2 Knobset - US32D

Tell KC2381, Entrance, Heavy-Duty Commercial Grade 2 Knobset - US32D Function:

KC2381 -Entrance - Deadlocking latchbolt operated by rotating inside knob or key in outside knob. - Outside knob always fixed.ANSI:F81

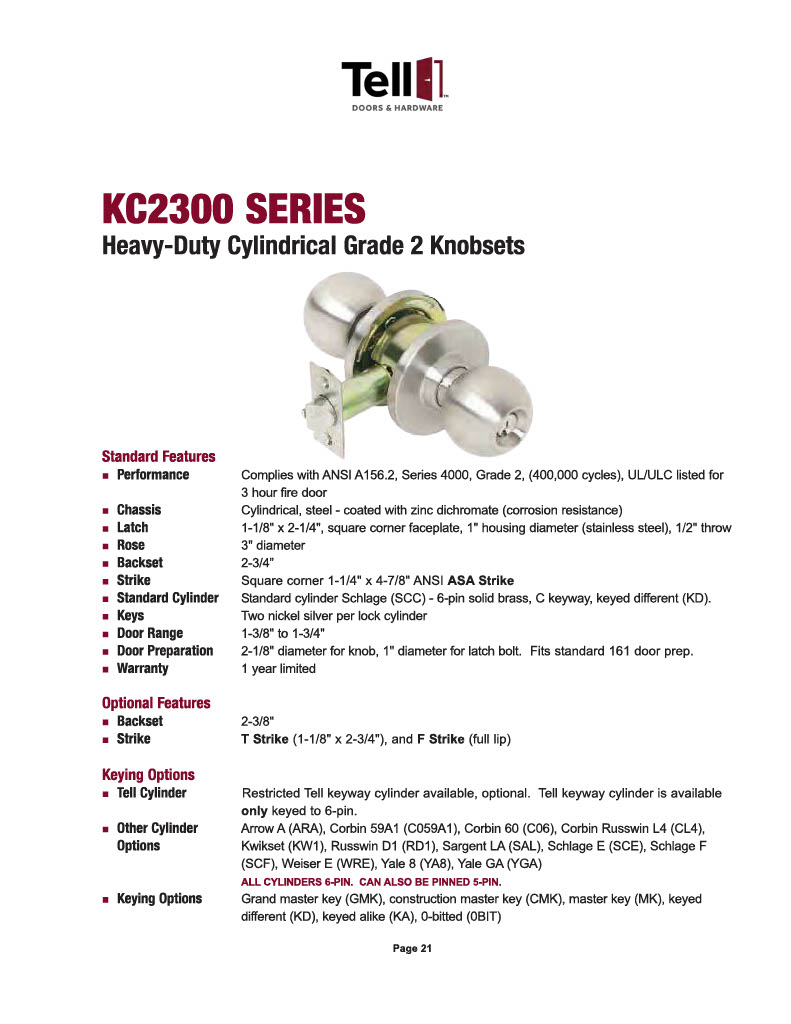

Standard Features**   Performance: Complies with ANSI A156.2, Series 4000, Grade 2, (400,000 cycles), UL/ULC listed for 3 hour fire door. Chassis: Cylindrical, steel - coated with zinc dichromate (corrosion resistance). Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw. Rose:  3" diameter. Backset: 2-3/4". Strike: Square corner 1-1/4" x 4-7/8" ANSI ASA Strike. Standard Cylinder:  Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD). Keys: Two nickel silver per lock cylinder. Door Range: 1-3/8" to 1-3/4". Door Preparation: 2-1/8" diameter for knob, 1" diameter for latch bolt. Fits standard 161 door prep. Warranty Limited Lifetime.

OPTIONAL FEATURES  Backset

2-3/8". Strike: T Strike (1-1/8" x 2-3/4"), and F Strike (full lip). Finish: US32D. KEYING OPTIONS:  Tell Cylinder Restricted Tell keyway cylinder available, optional. Tell keyway cylinder is available only keyed to 6-pin. Other Cylinder Options: Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA) ALL CYLINDERS 6-PIN. CAN ALSO BE PINNED 5 PIN.Keying Options:

Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT).

TELL KC2381, TELLKnobsets, KC12381, KC2381 TELL, KC12381TELL, TELLKC2381, TELL KC, KC TELL,
