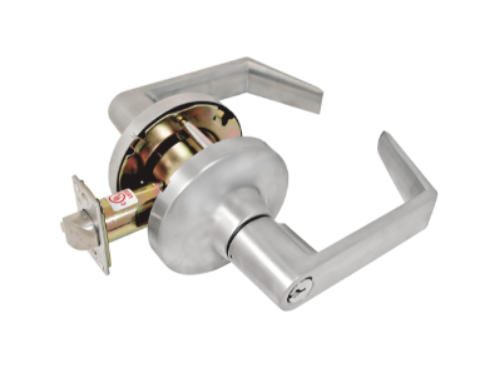

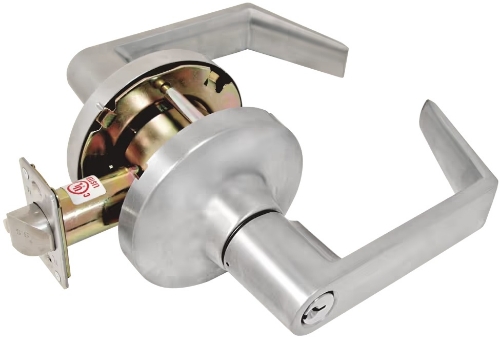

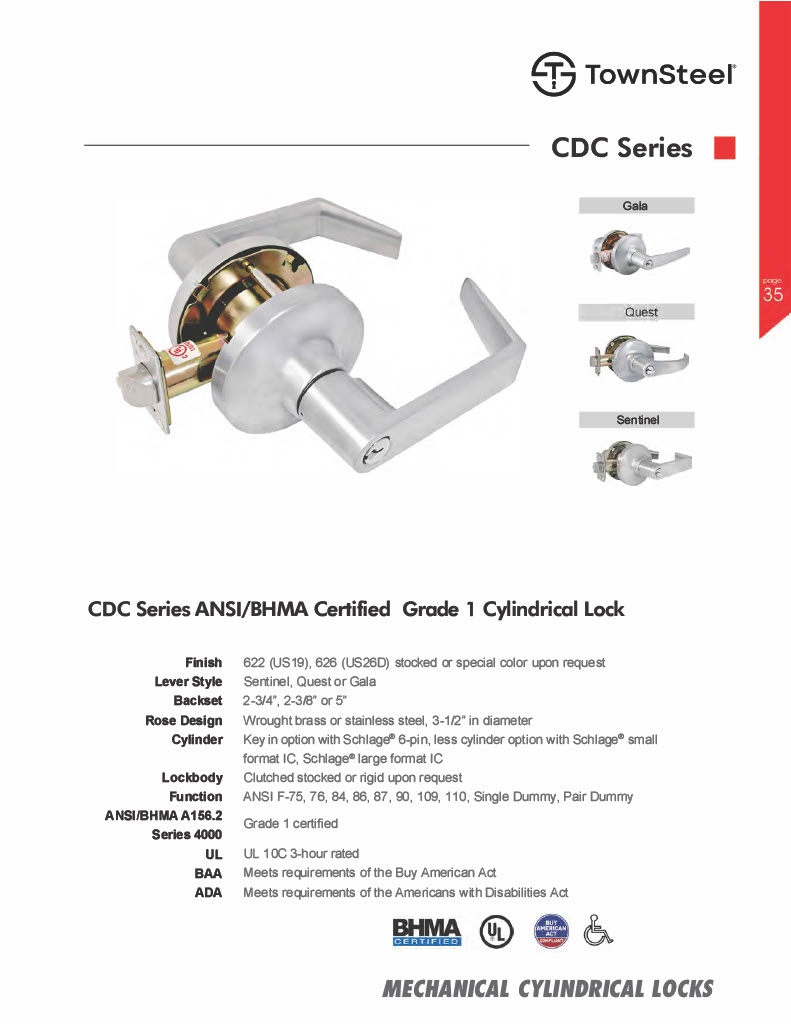

TownSteel CDC-109-S 626 Entry/Office Clutched Cylindrical Lockset - Satin Chrome

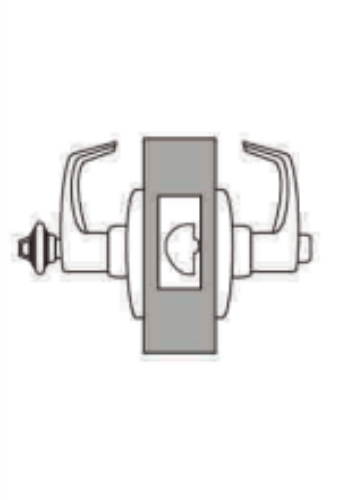

Entry / Office Lock Function

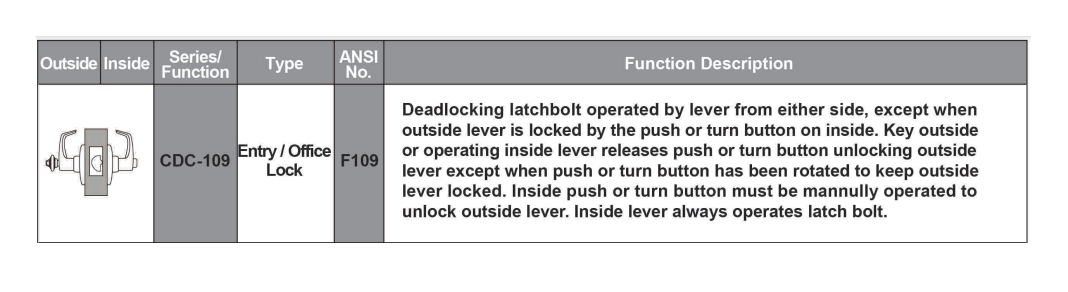

ANSI F109 -  Dead locking latch bolt operated by lever from either side except when outside lever is locked by the push or turn button on inside. Key outside or operating inside lever releases push or turn button unlocking outside lever except when push or turn button has been rotated to keep outside lever locked. Inside push or turn button must be manually operated to unlock outside lever. Inside lever always operates latch Bolt.

Applications

Best for: office doors, suites, interior commercial doors, and other places that get used a lot and need dependable keyed entry.

It helps by:

• Reducing lever damage from prying or forced twisting (thanks to the clutched lever design).

• Meeting common commercial requirements (ANSI/BHMA A156.2 Grade 1, ADA, and UL 10C 3-hour rating noted for this model).

• Installing easily on left- or right-hand doors (non-handed) and fitting common door thicknesses.

Key highlights

• 6-pin brass cylinder with Schlage “C” keyway

• Comes with 2 keys per cylinder

• Stainless steel latchbolt with 1/2" throw and deadlocking on keyed functions

• Fits 1-3/8" to 2" thick doors

• 2-3/4" backset standard (other backsets available)



Items Included

• Outside and inside Sentinel lever trim (clutched)

• Cylindrical lock chassis

• 6-pin brass cylinder + (2) keys

• Latch assembly (stainless steel latchbolt)

• Strike (ASA strike standard; T-strike optional)

• Standard mounting hardware for cylindrical locks



Key features

• Entry/Office function with clutched lever for added durability

• Non-handed (works on left- or right-swing doors)

• Stainless steel latchbolt with deadlocking

• Schlage “C” keyway, 6-pin cylinder, 2 keys included

• Listed/certified notes: ANSI/BHMA Grade 1, UL 10C 3-hour, ADA, plus BAA and CSFH lever compliance notes



Keying options

• Keyed Different (KD): each lock uses a different key

• Keyed Alike (KA): all locks use the same key

• Master Keyed: each lock has its own key, plus one master key opens all



Warranty

• 10-year limited (mechanical), 5-year (finish)

Specifications

• Handing: Non-handed

• Door thickness: 1-3/8" to 2"

• Backset: 2-3/4" standard; 2-3/8", 3-3/4", 5" optional

• Faceplate: Forged brass or stainless steel, 1-1/8" x 2-1/4"

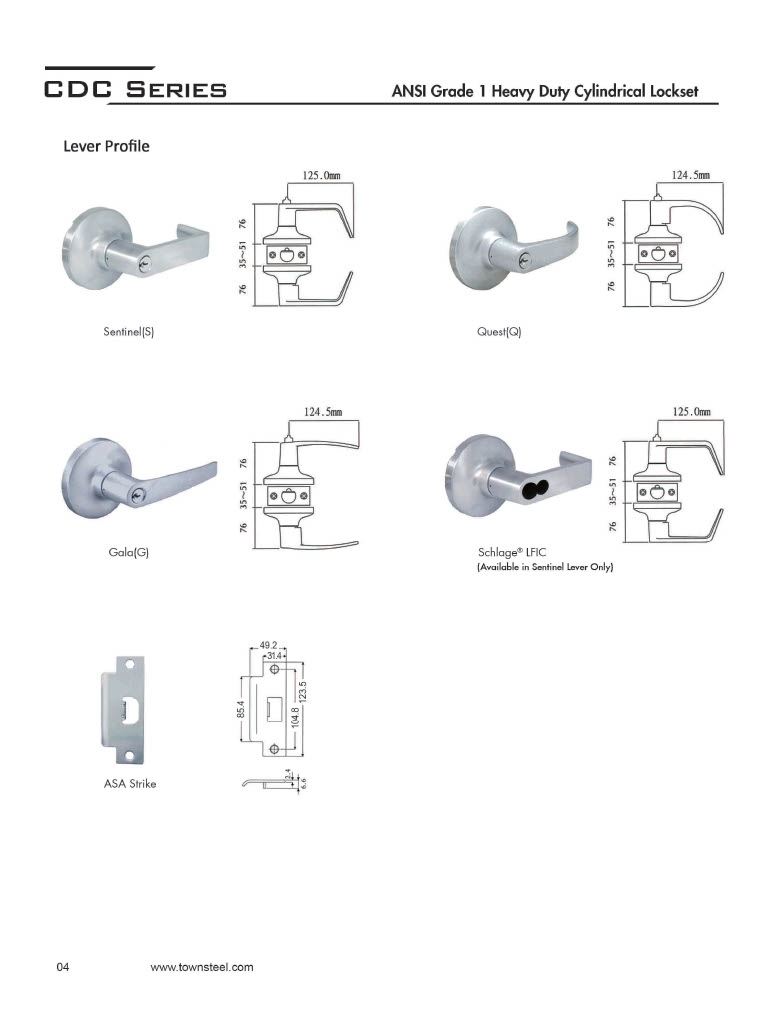

• Strike: ASA 1-1/4" x 4-7/8" x 1-5/16" standard; T-strike optional

• Door prep: Standard 161 prep; 2-3/4" (70mm) CTC thru-bolt

• Finish: 626 Satin Chrome
