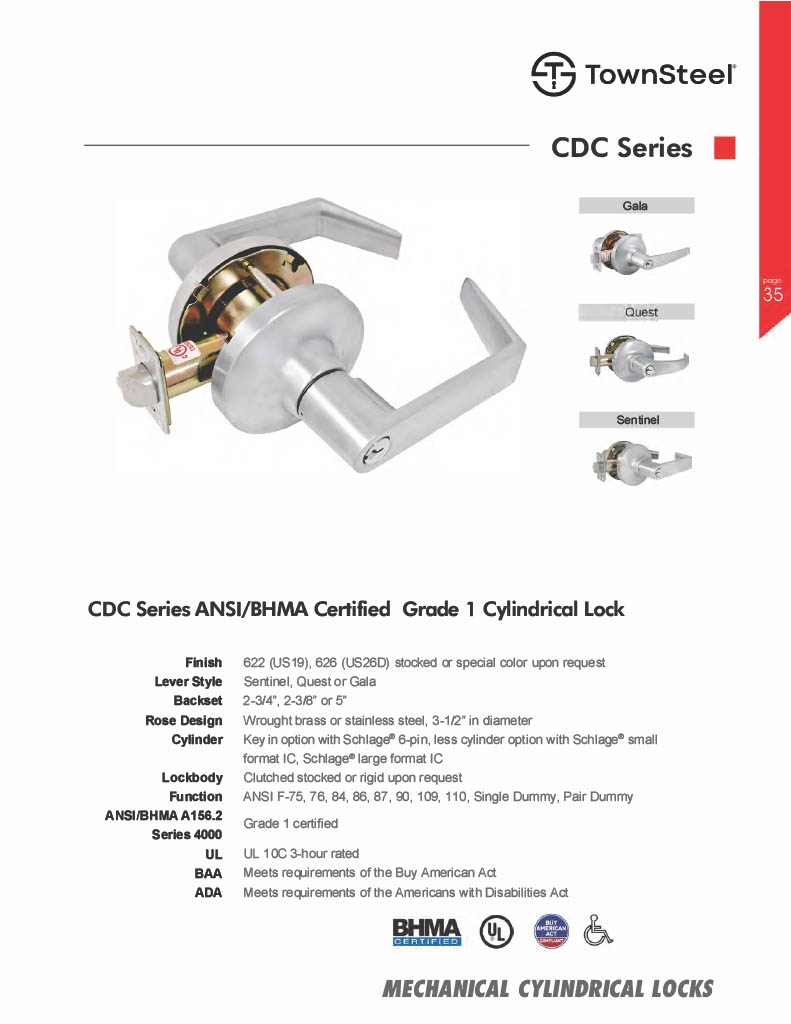

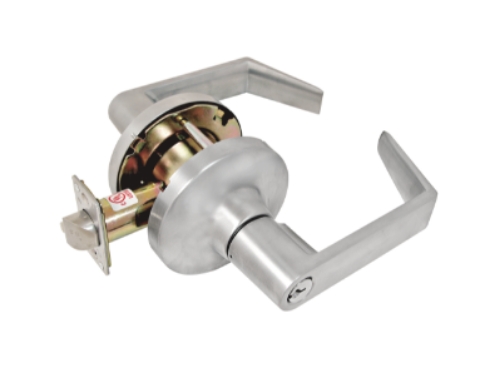

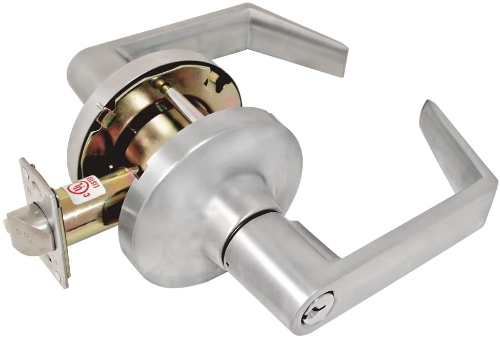

TownSteel CDC-84-S 626 Classroom Clutched Cylindrical Lockset - Satin Chrome

TownSteel CDC-84-S 626 Classroom Clutched Cylindrical Lockset, Sentinel Lever - Satin Chrome

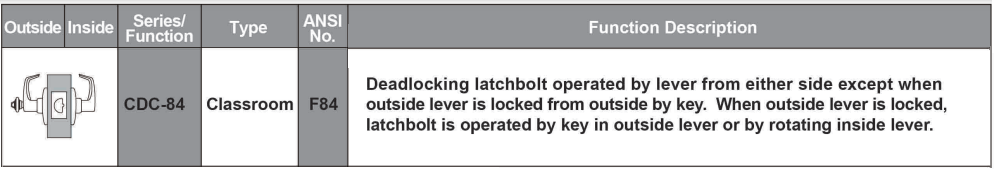

Classroom - ANSI F84 - Deadlocking Latchbolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked latchbolt is operated by key and outside lever or by rotating inside lever.

SPECIFICATIONS

Handling: Non-Handed

Door Thickness: 1-3/8″-2″

Backset: 2-3/4″ standard, 2-3/8″, 3-3/4″, 5″ optional

Faceplate: Forged brass or stainless steel, 1-1/8″ x 2-1/4″

Latch Bolt: Stainless steel, 1/2″ throw, deadlocking on keyed functions

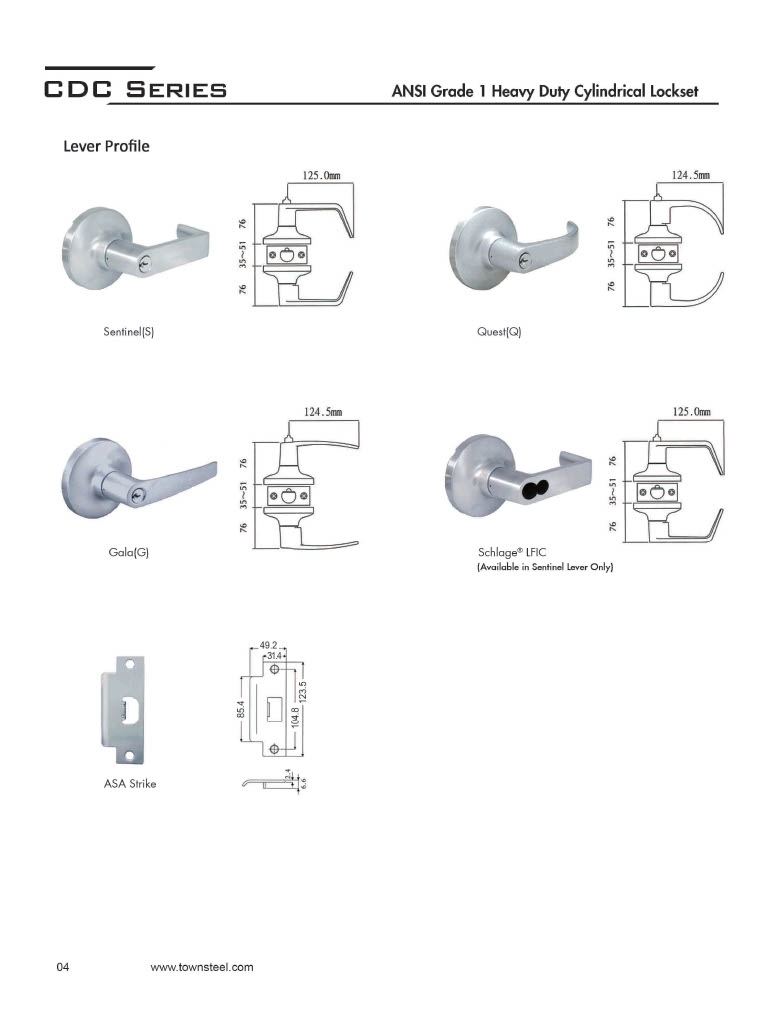

Strike: ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard, T-strike optional

Standard Cylinder: 6 pin brass, Schlage 'C' keyway, 2 keys per cylinder

Door Prepatation: Standard 161 door prep with 2-3/4" (70mm) center to center thru-bolt

Warranty: 10 years linited for mechanical, 5 years for finishes

CODE COMPLIANCE:

ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified

UL - UL 10C 3-Hour Rated

ADA - Meet Requirements of The Americans with Disabilities Act

BAA - Meet Guidelines of The Buy American Act

CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)

Model: CDC84S, CDC84S626
