Trilogy DL4500DB Digital Mortise Lock, Audit Trail, Privacy Type - Deadbolt Function

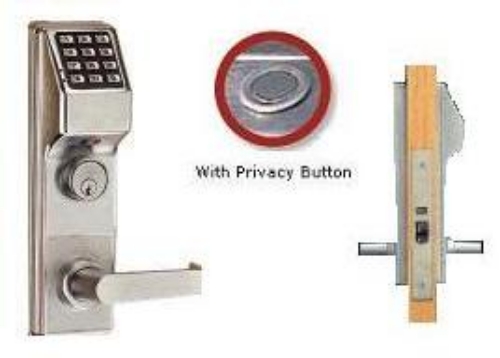

Alarm Lock - DL4500DB Trilogy Lock with privacy/lock down pushbutton on inner door  - Deadbolt Function

Choose either - left or right handing - (If reverse hand is required, lock is field reversible.)for (RHR) Right Hand Reverse order LH Lock, for (LHR) Left Hand Reverse order RH Lock

Function:Deadbolt function feature stainless steel deadbolt with1" (2.55cm) projection, latchbolt with 3/4" (1.91cm)projection and deadlocking latch Deadbolt may beprojected from key cylinder from outside door orturn-piece from inside door

1 3/8" (3.5 cm) mortise cylinder supplied

Interior LED on the inside housing indicates when the privacysession is active.

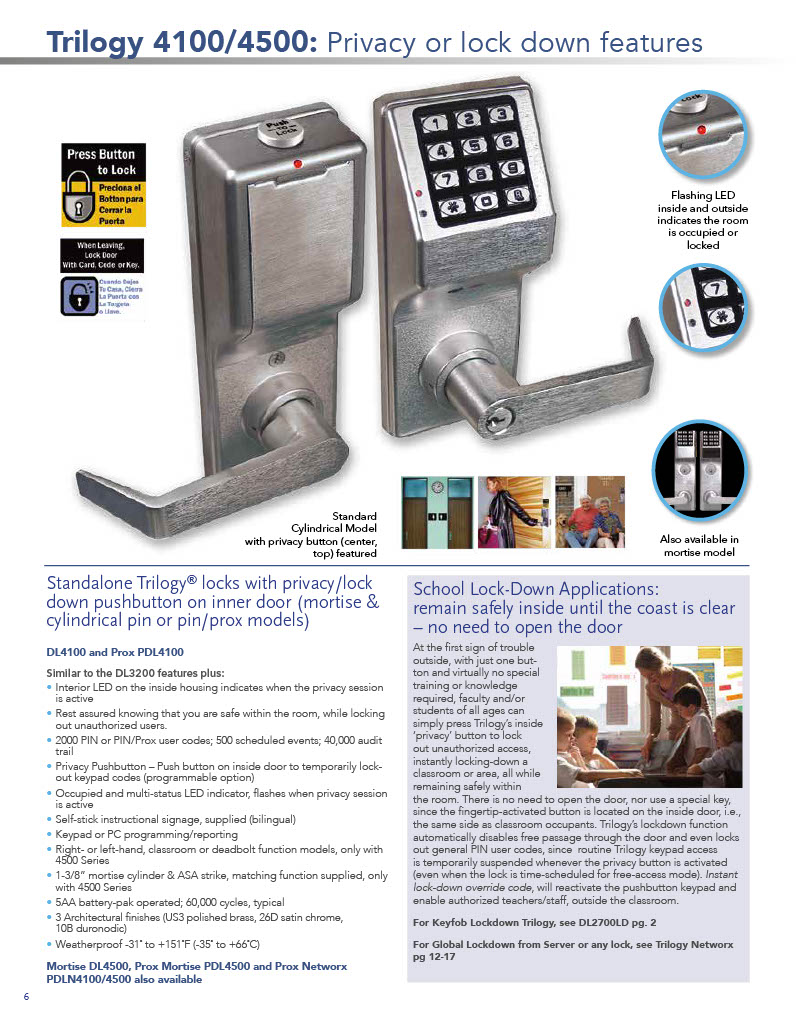

Privacy Pushbutton Push button on inside door to temporarilylock-out keypad codes (programmable option). Rest assured knowing that you are safe within the room, whilelocking out unauthorized users

Occupied and multi-status LED indicator, flashes when privacysession is active

Program at keypad or with PC-and/or data-transfer module

 300 user codes (3-6 digits) including: Master, manager, supervisor and basic user. Also one-time entry service code.500 scheduled events, including 4quick schedulesfor programming the 4 most common time schedules in one step

40,000 event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI)Interface Cable & Sofware (sold separately) to any PC using DLWindows Software.

Hand-held infrared (AL-IR1) printer can be used to print on-site from the lock(sold separately).

Data Transfer Module (AL-DTMII)can also be used to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time(sold separately).

Battery operated; Uses 5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drivemotor. 75,000 cycles typical.

Available in standard key override and interchangeable core modelsaccepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.

Model: Alarm Lock, Trilogy,DL4500, DL450026D, DL4500US26D, Finishes: 26D, Satin Chrome, RH, LH.

Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151 F to -31 F (+66 C to - 35 C)

Real time clock allows logging of events to within 1 second of accuracy

Entry allowance from 5-15 seconds - Greater security with temporary keypad lockout after 3 unsuccessful code-entry attempts

Door Thickness: Fits 1 3/8" to 1 7/8" (4.46cm).

Backset: 2 3/4" standard

Strike:1 1/4" x 4 7/8" strike included

Handing:Specify RH or LH when ordering.

Power:5 AA alkaline batteries (included)

Keypad:All metal, 12 button. All functions programmedthrough keypad.

Door prep:Standard ANSI A115 Mortise prep, modified byadding additional through-bolt holes

Compliances:Steelcase lockbody meets BHMA specificationsFor Grade 1 locks. UL listed to the 10C PositivePressure Specification. FCC Certified. ADAcompliant levers

Cylinder:1 3/8 (3.5cm) mortise cylinder supplied. WillAccept 1 3/8  to 1 1/2  (3.5 3.82cm) mortiseCylinder. Classroom function supplied with straightCam and deadbolt function supplied with cloverleafCam
