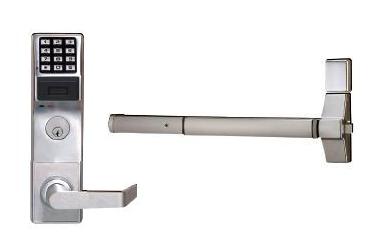

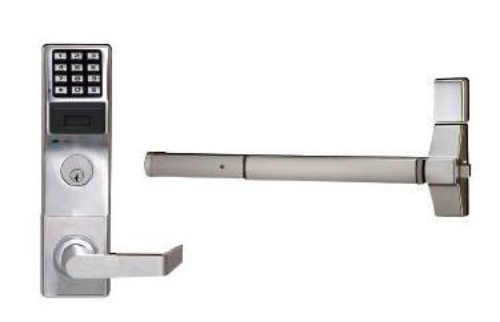

Trilogy ETPDL S1G Exit Trim Proximity Digital Lock W/Audit Trail

Alarm Lock - Trilogy ETPDL Digital Proximity Exit Trim with Audit Trail(Panic Exit Device must be ordered separately)

S1G- Straight Lever (See model ETDPL R1G for Regal Curved Lever)

Operation:Clutch mechanism permits turning lever without retracting latch and reduces stress on the spindle. Entering access code will allow lever to retract latch. Inside panic bar always provides instant egress. (Temperature Range: +150 Degree F to -20 Degree F.)

Accepts most HID Proximity cards and keyfobs

Prox card data can be added to software by uploading from lock, by using AL-PRE or entering directly from computer using DL-WINDOWS software.

Users are individually programmed to use a card only, code only, or for highest security, both card and code

Fingertip and/or Windows Programmable

2000 User Codes: Master, manager, supervisor and users

Up to 500 Lock/Unlock Schedules (with Time Zone Support)

40,000 event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI)Interface Cable & Sofware (sold separately) to any PC using DLWindows Software. Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc

Hand-held infrared (AL-IR1) printer can be used to print on-site from the lock (sold separately).

Data Transfer Module (AL-DTMII)can also beused to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time (sold separately).

Rugged 12-Button Weather Resistant Metal Keypad

Non-Handed; Fully Field Reversible

Door Thickness;1 3/4" standard. Other thickness please see consult factory.

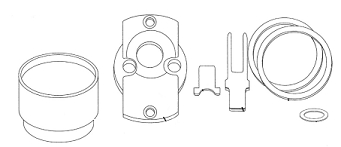

Generic Rim Cylinder (Schlage C Keyway) & adapter kit included in all locks.**Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders (See separately ordered Cylinder Adapter Kit)

Battery operated; uses 5 AA batteries, Audible low battery alert, visual and audible entry indicators

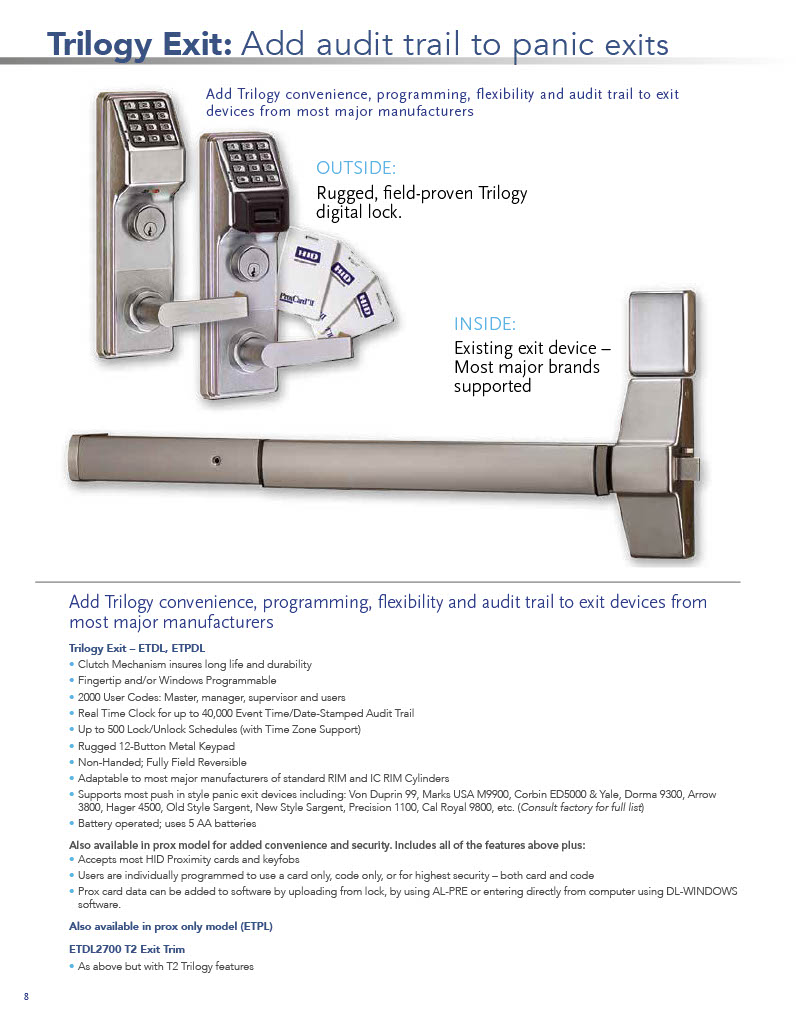

The Trilogy Exit will work with the following Panic Bars:

Von Duprin 99 Series - Corbin ED5000 Series - Yale 7100 Series- Dorma 9300 Series - Arrow 3800 Series - Sargent 8800 Series

Models: Alarm Lock, Trilogy, S1G, ETPDLS1G, ETPDLS1G26D, ETPDLS1GUS26D,  ETPDLS1G210B, ETPDLS1GUS10B. Finishes: 26D Satin Chrome, 10B Oil Rubbed Bronze,26DV99, US26DV99, V99, 26DA38, US26DA38, A38, 26DC50, US26DC50, C50, 26DCR8, CR8, US26DCR8, 26DD93, D93, US26DD93, 26D-NS8, US26DNS8, NS8, 26DP11, P11, US26DP11, 26DS88, S88, US26DS88, 26DY71, US26DY71, Y71, 10BV99, US10BV99, V99, 03V99, US3V99, V99.

Keypad:Vandal-resistant all metal, weather-resistant 12-button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time for 5 to 15 seconds. (Completely encapsulated circuit board hermetically sealed from weather and elements.)

Audit Trail:Lock's entry activity log can be polled to the Data Transfer Module (AL-DTMII), any PC using Alarm Locks DL-WINDOWS Software (Vsn.2.94 or higher), and/or can be on-site printed using the hand-held infrared printer (AL-IR1).

Compliances:Use of the Alarm Lock TrilogyExit does not alter or invalidate the UL Safety or Fire Ratings of the Panic Exit Device you are using (when properly installed per Alarm Lock's instruction sheet).

Power:5 AA alkaline batteries, (supplied) installed in Battery Pack (see below). Audible low battery alert, visual and audible entry indicators,Battery pack mounts to interior door. Located over or under panic bar (position dependent upon exit device manufacturer).
