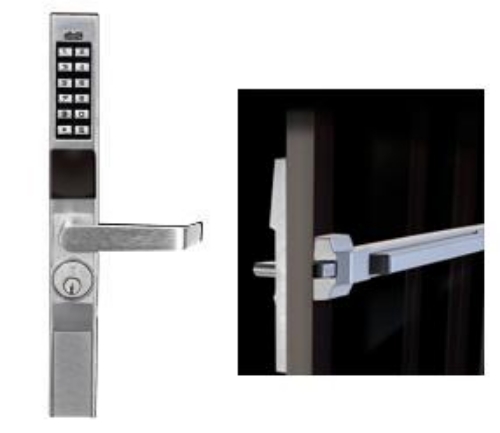

Trilogy PDL1300ET Narrow stile Proximity Lever Lock for Panics

Battery operated Narrow stile Proximity, Digital lever lock with Audit Trail for panic devices, PDL1300ET/26D, PDL1300ET/10B

"Tailpieces must be used with the Panic Devices"  see selection above

Alarm Lock -Trilogy PDL1300ET Series:

Narrow Stile Lock for Arrow S1200/S1250, DCI 1200/1300, Von Duprin 22, Corbin ED8200 & Von Duprin 33 panic device.

 Will read most HID card and keyfob formats.

Built-in HID prox reader, supports up to 2000 users with HID Prox IDcards or/fobs or 3-6 digit PIN codes

Easy Tap & Add batch prox ID card enrollment mode allows manycards to be quickly added without PC also downloadable from PCor prox enroller tool

Program at keypad or with PC and/or data-transfer module

2000 user codes (3-6 digits) including: Master, manager, supervisor and basic user. Also one time entry service code

 500 event schedule/real time clock (e.g. lock/unlock by time)

40,000 event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI)Interface Cable & Sofware (sold separately) to any PC using DLWindows Software. Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc

Hand-held infrared (AL-IR1) printer can be used to print on site from the lock (sold separately).

Data Transfer Module (AL-DTMII)can also beused to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time (sold separately).

All-metal, vandal-resistant 12-button keypad**supports 3-6 digit PIN codes, and multilevel user hierarchy (master, manager, supervisor, basic users.

Wireless standalone locks:Long-life, battery operated; Includes audible and visual low battery alert. (Uses standard off the shelf batteries.)

Non-handed; fully field reversible

Weatherproof:for use inside and out, with operational temperature range of +151?F to -31?F (+66?C to -35?C)

Key override6 pin solid brass mortise cylinder, SC1 keyway, 1-1/4supplied. (Supports 1-1/8?, 1-1/4and 1-3/8?).

Stile thickness1-3/4"

Power:uses 2 DL123A lithium batteries

Models:PDL1300ET/26D, PDL1300ET/10B

Models: Alarm Lock, Trilogy, PDL1300ET, PDL1300ET26D, PDL1300ETUS26D, PDL1300ET10B, PDL1300ETUS10B, finishes: 26D Satin Chrome US10B, 10B Oil Rubbed Bronze US10B .
