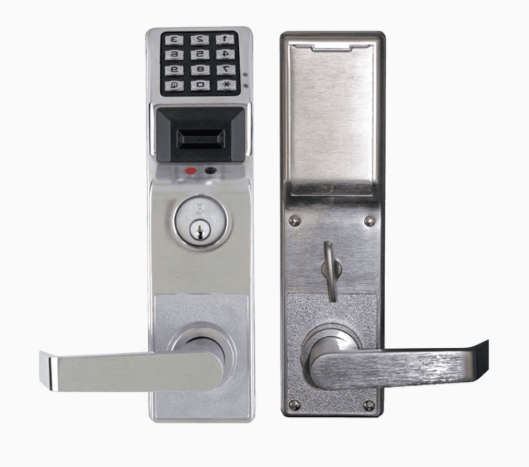

Trilogy PDL4500DB Prox Mortise Lock - w/Audit Trail, Privacy Type -Deadbolt Function
Product Details
*Alarm Lock - PDL4500DB Trilogy Mortise Proximity Lock with privacy/lock down pushbutton on inner door - Deadbolt Function * Choose either left or right handing (If reverse hand is required, lock is field reversible.)
(for (RHR) Right Hand Reverse order LH Lock, for (LHR) Left Hand Reverse order RH Lock)
Function:Deadbolt function feature stainless steel deadbolt with1(2.55cm) projection, latchbolt with 3/4(1.91cm)projection and deadlocking latch Deadbolt may beprojected from key cylinder from outside door orturn-piece from inside door.
1 3/8(3.5 cm) mortise cylinder supplied.
Use the same ID cards as hardwired access systems & install in an hour, will read most HID card and keyfob formats.
Provide access with prox ID-cards or 3 to 6 digit codes. Users are individually programmed to use a card only, code only, or, for the highest security, both card and code.
Built-in HID Prox reader for entry with HID prox ID cards and keyfob credentials Tap and Add batch ID card enrollment mode at lock or download from a PC Program at keypad or with PC-and/or data-transfer module.
2000 user codes (3-6 digits) including: Master, manager, supervisor and basic user. Also one-time entry service code.
? 500 scheduled events, including 4quick schedulesfor programming the 4 most common time schedules in one step.
Quick passage mode (without being in program mode).
40,000? event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI)Interface Cable & Sofware (sold separately) to any PC using DLWindows Software.Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc.
Hand-held infrared (AL-IR1) printer can be used to print on-site from the lock(sold separately).
Data Transfer Module (AL-DTMII)can also beused to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time(sold separately).
Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151 F to -31 F (+66 C to -35 C).
Entry allowance from 5-15 seconds - Greater security withtemporary keypad lockoutafter 3 unsuccessful code-entry attempts.
Real time clock allows logging of events to within 1 second of accuracy.
4 time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock.
Battery operated; Uses 5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drivemotor. 60,000 cycles typical.
Available in standard key override and interchangeable core modelsaccepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.
Models: Alarm Lock, Trilogy, PDL4500, PDL450026D, PDL4500-26D, PDL4500US26D, PDL4500 US26D, PDL4500 26D, Finishes: Satin Chrome, RH, LH.
