Trimco 1111C Flush Pull - Anti-Vandal

About this item

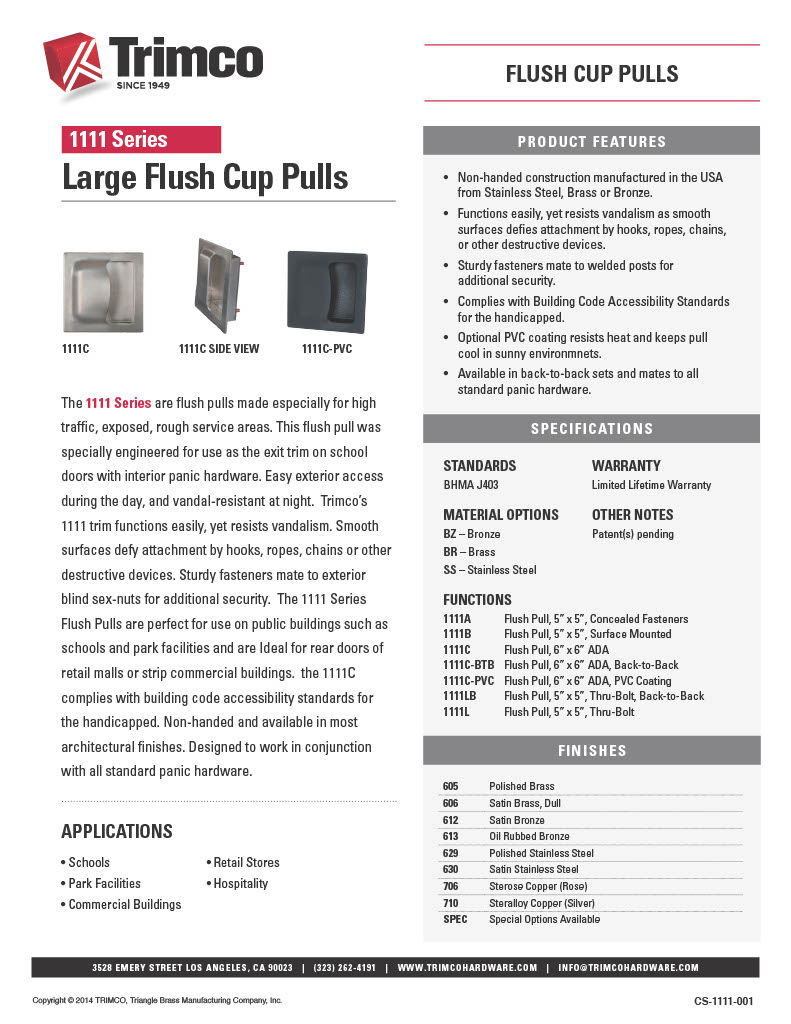

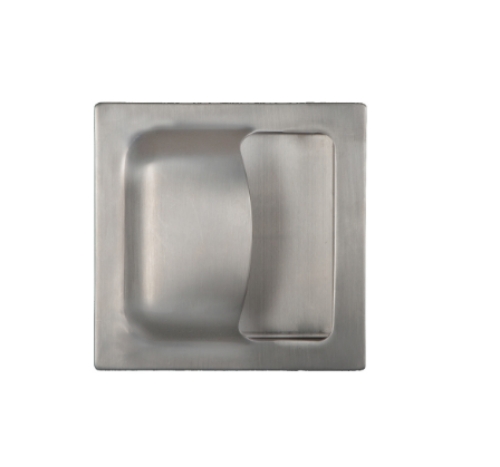

The Trimco 1111C is a recessed flush pull from Trimco's 1111 Series anti-vandal flush pull line, specifically engineered for use as exterior pull trim on school doors, public buildings, and high-abuse institutional openings with interior panic hardware. 6 inch x 6 inch cup, 1-1/2 inch depth, BHMA J403. ADA compliant. Meets California Accessibility Requirements. Non-handed. Made in the U.S.A. American Locksets is an authorized Trimco dealer stocking the 1111C in 630 Satin Stainless Steel and multiple architectural finishes with same-day shipping and free shipping on orders over $300.

Also referenced as: 1111c flush pull, 1111C ADA flush pull, Trimco flush pull anti-vandal, ada flush pull school door.

Trimco 1111C: Designed Specifically for Exit-Side Panic Hardware Applications

The 1111C solves a real application problem that standard door pulls cannot. On doors with interior panic exit devices, the outside of the door needs a pull that provides access for authorized entry during the day and resists unauthorized tampering and vandalism at night and during off-hours.

A standard grip pull or bar pull creates attachment points for hooks, ropes, and chains that can be used to force the door, prop it open, or attack the hardware. The 1111C eliminates all of those attachment points. The cup is flush-mounted into the door face, sitting completely recessed. The smooth surfaces inside and around the cup provide nothing for hooks, ropes, or chains to catch on. The opening geometry is designed to allow fingers to grip and pull the door without projecting a lever or bar above the door face.

The fasteners mate to exterior blind sex-nuts, which are accessible only from the interior side. This eliminates the ability to remove the pull from the exterior using standard tools, which is the typical attack vector on surface-mounted pulls in high-abuse environments.

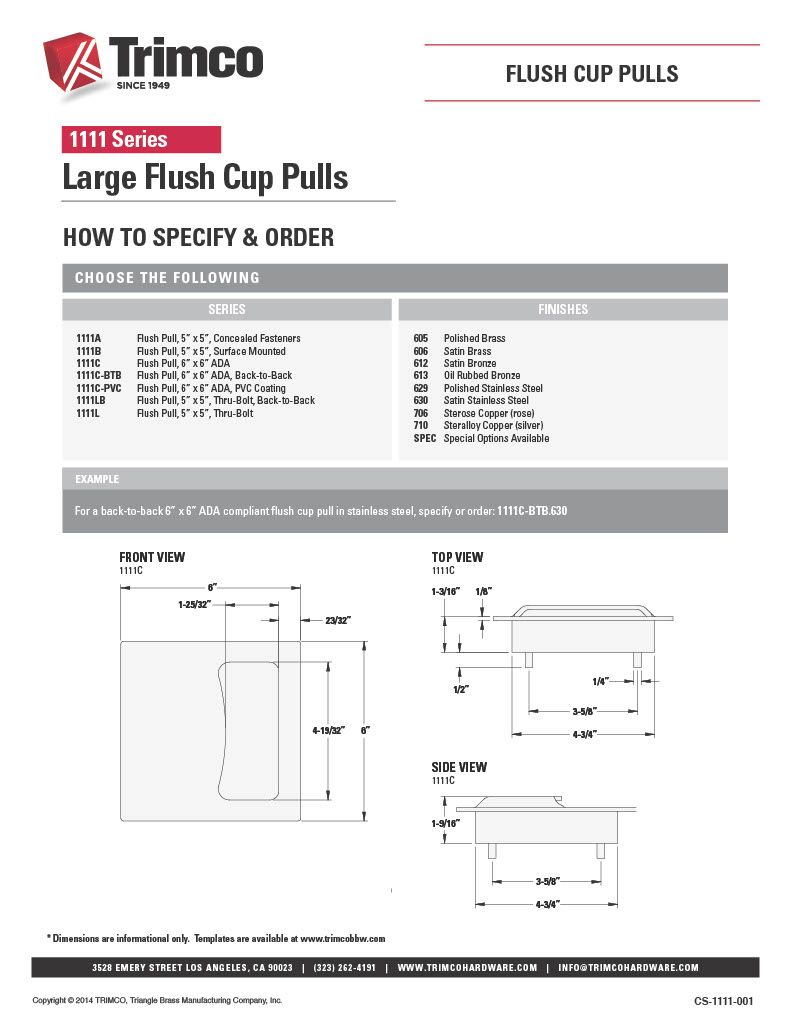

Trimco 1111C Specifications

• SKU: 1111C 630

• Series: Trimco 1111 Series Anti-Vandal Flush Pulls

• Overall Size: 6 inch x 6 inch (152mm x 152mm)

• Recommended Door Cut-Out: 5 inch x 5 inch

• Depth: 1-1/2 inch

• BHMA Standard: J403

• Compliance: ADA compliant. Meets California Accessibility Requirements and California Disability Requirements

• Fasteners: Sturdy fasteners mate to exterior blind sex-nuts for additional security. Not removable from exterior

• Handing: Non-handed. Works on right-hand and left-hand doors

• Origin: Made in the U.S.A.

• Finish: 630 Satin Stainless Steel standard on this listing. Available in most architectural finishes including brass, bronze, aluminum, and stainless steel

• Companion Option: 1111C.BPVC version available with cool-touch PVC coating for exterior applications in sunny environments where the metal cup can heat up to uncomfortable temperatures

Where the 1111C Gets Specified

The 1111C is the correct specification on any door that carries interior panic exit hardware and requires an accessible exterior pull with vandal resistance. Schools, parks, and public facilities use the 1111C on gymnasium exits, rear corridor doors, exterior egress doors, and any opening where the hardware will be exposed to potential abuse. Rear service doors on retail malls and strip commercial buildings are another primary application, where access is needed during business hours but the door faces an unmonitored exterior at night.

The 1111C is ADA compliant, which makes it the correct choice for accessible egress doors in all occupancy types where an ADA-compliant exterior pull is required alongside a panic device. The California Accessibility compliance certification is relevant for projects governed by the California Building Code and California Title 24 accessibility provisions.
