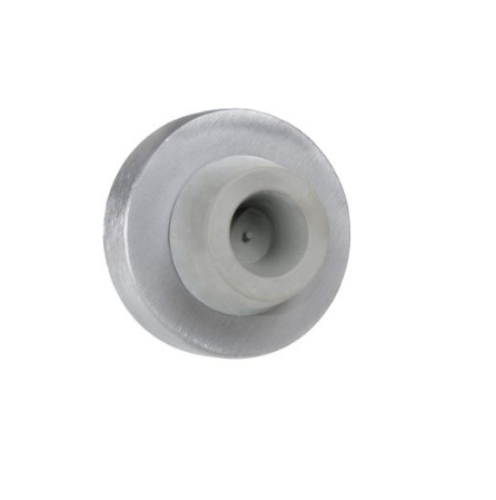

Trimco 1270CV Wall Bumper - Cast - Concave

About this item

The Trimco 1270CV is a cast concave wall bumper from Trimco's 1270 Series heavy-duty door stop line, designed for commercial, institutional, healthcare, school, and government applications where a door needs to be stopped against the wall without damaging either the wall surface or the door hardware. American Locksets is an authorized Trimco dealer stocking the 1270CV across multiple architectural finishes with same-day shipping and free shipping on orders over $300.

Trimco 1270CV Wall Bumper: Cast Construction, Concave Design

The 1270CV is built on a cast metal body, which is heavier and more rigid than the wrought version (1270WV). The cast construction makes it the correct choice for high-traffic, high-abuse commercial environments where repeated door impact demands a stop that will not bend, flex, or deform over time.

The concave profile means the rubber bumper face curves inward. This shape is particularly effective at capturing and cushioning door knobs, lever ends, and push plates on impact, cradling the door hardware within the cupped face and distributing the contact force across the rubber surface rather than concentrating it at a single impact point. This reduces damage to both the door hardware and the bumper itself over years of use.

Anti-Vandal Steel Washer Construction

The core engineering feature that distinguishes the Trimco 1270CV from standard rubber wall stops is the heavy steel washer cast directly into the rubber bumper body. This washer cannot be removed without destroying the bumper. When someone attempts to pull the bumper from the wall by twisting the rubber, the washer locks the rubber to the cast metal housing and resists the removal force. This is why the 1270 Series is specified in schools, healthcare facilities, and institutional environments where unauthorized removal of hardware is a concern.

The combo fastener pack included with each 1270CV provides machine screw and anchor combinations for multiple wall types, including concrete masonry, hollow metal stud, and wood stud walls. One fastener pack covers most standard installation conditions without a separate hardware order.

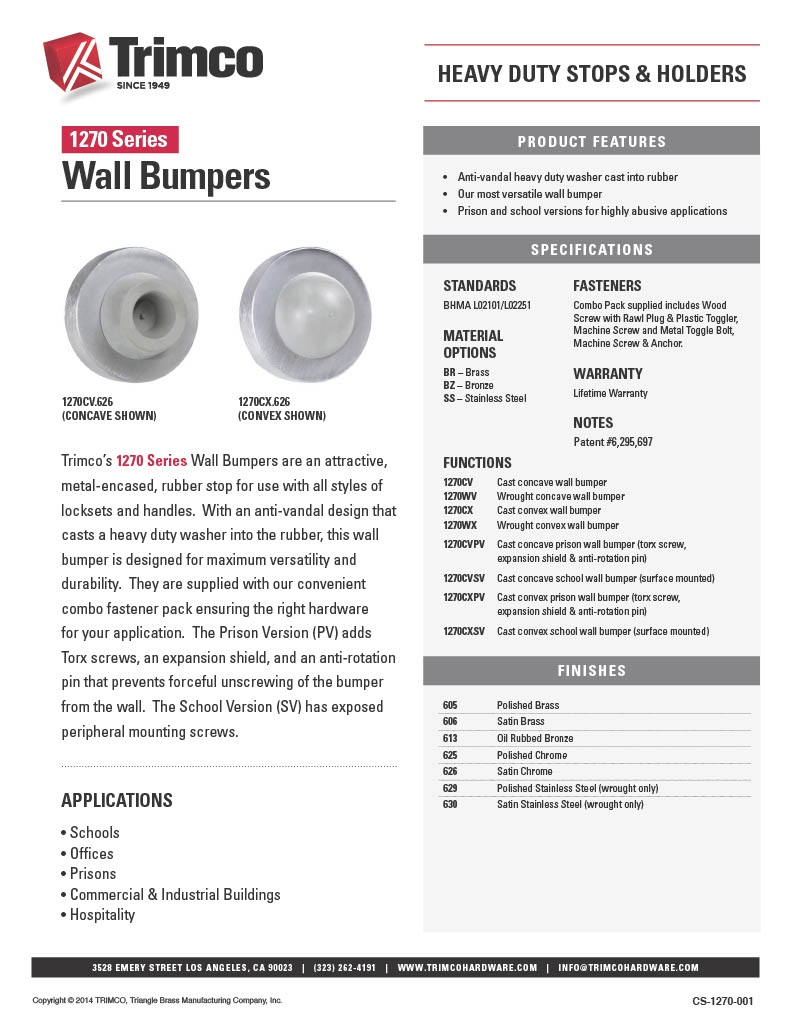

Trimco 1270CV Specifications

• SKU: 1270CV

• Series: Trimco 1270, Heavy Duty Wall Bumpers

• Type: Wall bumper, non-hold-open

• Construction: Cast metal housing

• Bumper Profile: Concave (cupped inward face)

• Projection: 1 inch from wall surface

• Inner Diameter: 1-3/8 inch

• Outer Diameter: 2-3/16 inch

• Rubber: Anti-vandal industrial rubber with heavy steel washer cast in

• Fasteners: Combination fastener pack included for multiple wall types

• BHMA Standard: BHMA L02251

• Certification: Meets Trimco heavy-duty commercial standards

• Application: All styles of locksets and handles. Commercial, institutional, school, and government use

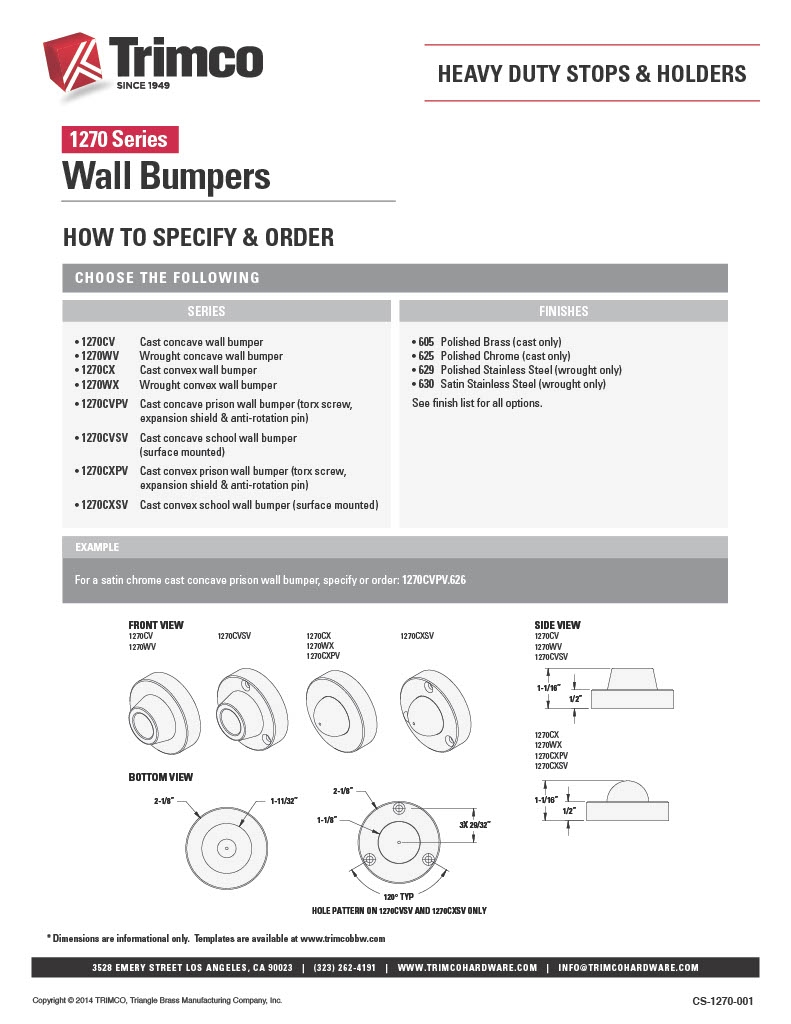

1270CV vs. 1270WV and 1270CX: Choosing the Right Model

The 1270 Series covers several configurations. The CV suffix means concave. The CX suffix means convex (domed outward face, which catches lever tips and round knobs differently from concave). The C prefix means cast. The W prefix means wrought. Cast is heavier and more rigid; wrought is slightly lighter with a more traditional brushed appearance that suits certain architectural finishes (629 Polished Stainless and 630 Satin Stainless are wrought-only finishes). Confirm the desired profile and construction before ordering.

Special versions also available in the 1270 Series: 1270CVPV (prison version, adds anti-rotation pin to prevent removal from wall even after fastener removal) and 1270CVSV (school surface-mount version).

Available Finishes for the Trimco 1270CV

605 Polished Brass (cast only), 606 Satin Brass, 613 Oil Rubbed Bronze, 622 Satin Black, 625 Polished Chrome (cast only), 626 Satin Chrome. Specify finish in order.
