Trimco 562-4 Drawer Pull 4" CTC

About this item

The Trimco 562-4 is a 4-inch center-to-center wire drawer pull from Trimco's 562 Series economical cabinet pulls, manufactured in solid brass with a full range of architectural finishes. A clean, straight wire profile designed for drawer fronts, cabinet doors, closet doors, and utility storage applications in commercial, institutional, and multi-family residential properties. American Locksets is an authorized Trimco dealer stocking the 562-4 across multiple finishes with same-day shipping and free shipping on orders over $300.

Also referenced as: 562/4 drawer pull, 562 4 drawer pull, Trimco 562-4 cabinet pull, 4" CTC wire pull.

What the 562-4 Is: A Commercial Wire Pull Built on Solid Brass

The 562 Series is Trimco's economical wire pull line, and the -4 suffix identifies the center-to-center hole spacing, which is 4 inches. Center-to-center is the dimension measured between the two screw hole centers on the pull. This is the critical specification when replacing or matching existing drawer hardware, because the bore holes in the cabinet or drawer front are fixed. Before ordering, confirm the CTC measurement on the existing hardware or on the door or drawer prep.

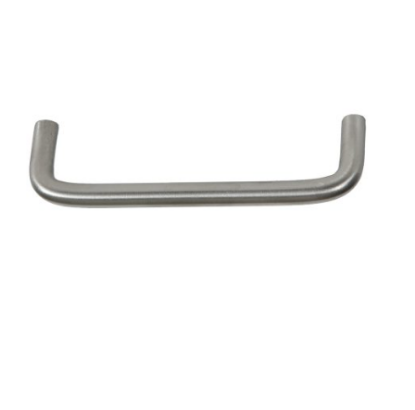

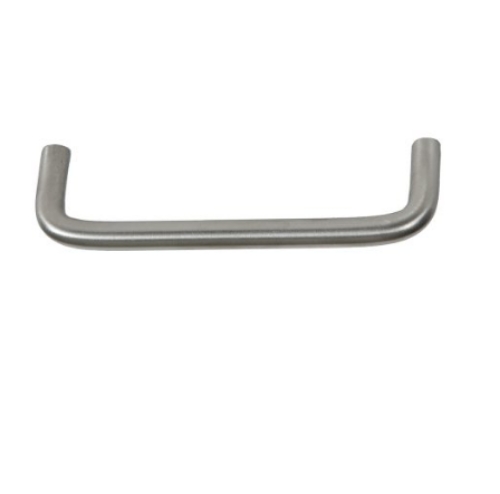

The 562-4 is a straight-bar wire pull made from solid brass rod stock, 5/16 inch in diameter, finished to the specified architectural finish. Solid brass construction provides corrosion resistance and compatibility with Trimco's full range of finish options. It is not a hollow stamped pull. The fit and finish on Trimco 562 Series hardware is specified for institutional and commercial environments where hardware must remain presentable through years of daily use.

Trimco 562-4 Specifications

• SKU: 562-4

• Series: Trimco 562 Series Wire Drawer Pulls

• Center-to-Center: 4 inches (CTC)

• Overall Length: 4-5/16 inch

• Diameter: 5/16 inch

• Clearance (inside, between bar and surface): 7/8 inch

• Material: Solid brass

• Fasteners: Machine screws for 3/4 inch drawer or cabinet fronts included standard

• Application: Drawer fronts, cabinet doors, closet doors, utility storage, institutional and commercial cabinet hardware

Trimco 562 Series CTC Options and Companion Parts

The 562 Series is available in three center-to-center spacings. The 562-3 is 3 inches CTC. The 562-4 is 4 inches CTC. The 562-96 is 96mm (approximately 3-3/4 inch) CTC, which is the metric European standard spacing common on commercial casework and some healthcare cabinetry.

The 562 pulls are sized to coordinate with Trimco's back plate accessories for applications where a back plate is desired for a finished appearance on the mounting surface. When specifying back plates alongside 562 pulls, confirm CTC compatibility between the pull and back plate at order.

Available Finishes for the Trimco 562-4

The 562-4 is available in multiple standard architectural finishes: 605 Polished Brass, 606 Satin Brass, 613 Oil Rubbed Bronze (US10B), 619 Satin Nickel, 622 Flat Black, 625 Polished Chrome, 626 Satin Chrome (US26D), 630 Satin Stainless Steel (US32D), and 710CU Silver Steralloy Antimicrobial Copper finish for healthcare and high-touch surface applications. Specify finish at order.

The 710CU Silver Steralloy finish is worth noting specifically for healthcare and senior living facility applications. It provides an antimicrobial surface on a high-touch cabinet pull without changing the pull's form, function, or installation. This finish option is increasingly specified on new construction and renovation projects with infection control requirements.
