Trine 004C 8-16AC/4-6DC Electric Strike - 6-1/4" x 1-3/8" Faceplate - Satin Chrome

Trine 004C 816AC46DC Electric Strike - 6-1/4" x 1-3/8" Faceplate*- Satin Chrome*

FEATURES:

For new or replacement installations in wood jambs. Use with, locksets with individual dead bolts. Dead bolts cannot be released electrically.

Use with locksets having up to 5/8" throw, based on 1/8" door gap.

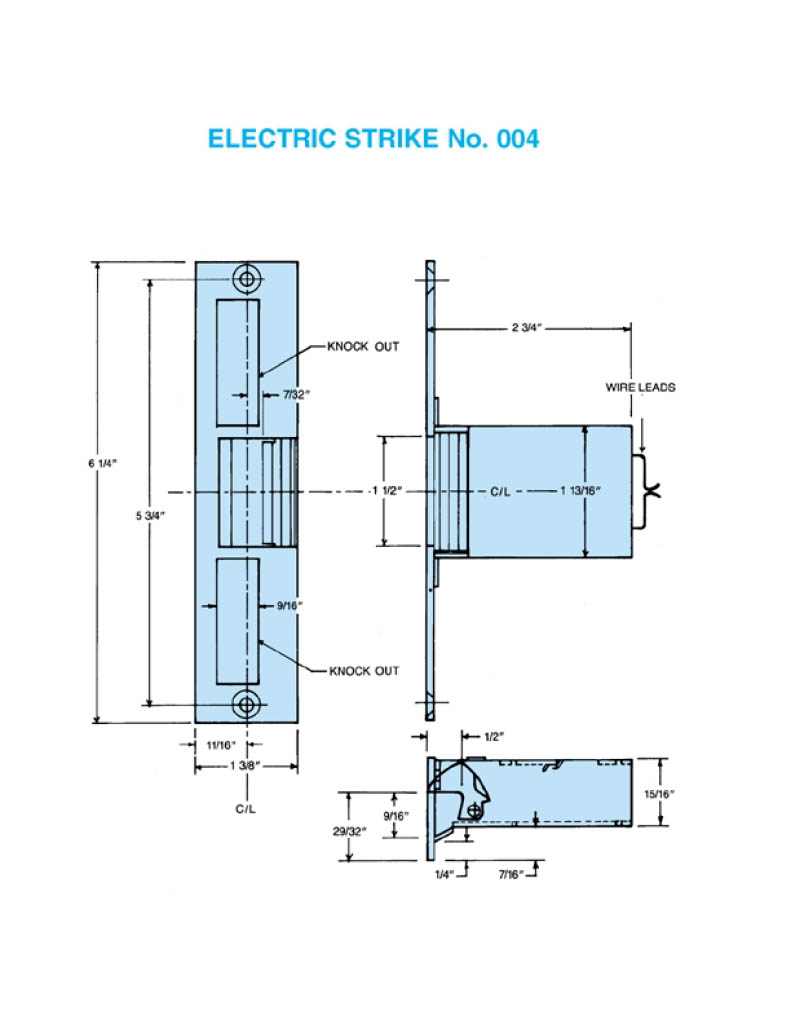

Face Plate 6-1/4" x 1-3/8"

Dead bolt Knockouts Top & Bottom 1-11/16" x 9/16"

Mortise Backset 2-3/4"

Cavity Depth 1/2"

Cavity Width 9/16"

Cavity Height 1-1/2"

Durability - 500,000 Life Cycles

Holding Force - 1000 lbs

Only 1 Moving Part in Locking Mechanism

Non-Handed Operation

Heavy Duty Latch Spring

Model:004C12DC,  004C24DC, 004C8-16AC/4-6DC
