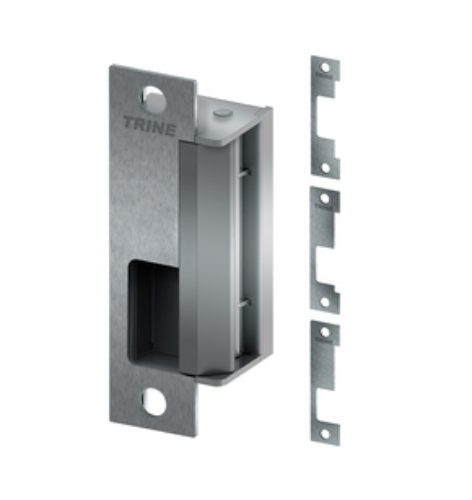

Trine 4100 Electric Strike For Cylindrical & Mortise Locksets

Trine 4100 Electric Strike For Cylindrical & Mortise Locksets

Electric Strike- 1 - 3/8" Shallow backset and Three Hour Fire Rated

Four popular faceplates included- including the 4 most used faceplates in the box makes specifying and installing easy Covers 90%+ of Cylindrical & Mortise Lock configurations (without deadbolt), plus faceplates can be kept & used to help accomodate for door sag.

Standarad 4100 is Fail Secure, For Fail-safe action (locks with power) Select “RS" to the item number.**

Works with the Schlage® L Series & Yale® 8700 Series without relocating mounting tabs.

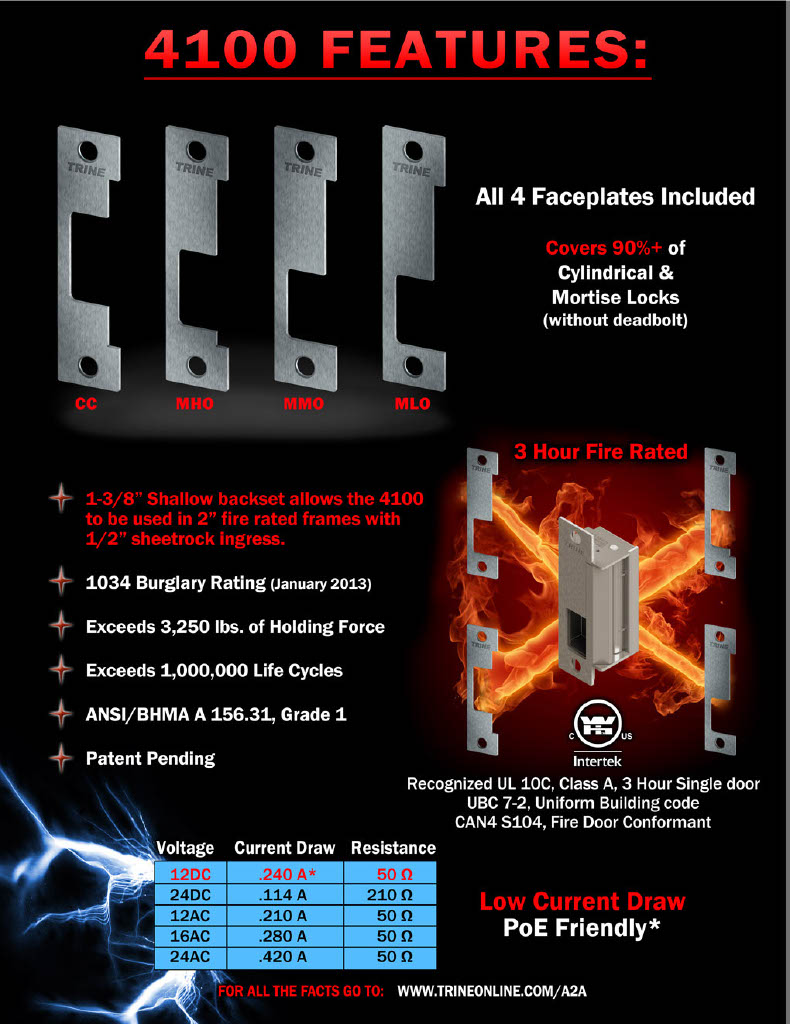

Features:

BHMA Grade 1 Electric Strike -- heavy duty construction, 1,000,000+ Life cycles -- 3,250+ lbs. Holding Force

1 - 3/8" Shallow backset -- the 4100 low profile electric strike can be used in 2" fire rated frames with 1/2" sheetrock ingress

Low Current Draw -- .240 Amp at 12DC makes it very PoE Friendly 12 & 24DC :: 12 through 24 AC. All the low voltage and amperage flexibility you need

The included CCTS covers the gap when retrofitting the HES® 1006, Folger Adams® 712/732, and Von Duprin® 6200 Series or even Trine EN Series strikes. No more ugly trim skirts. The CCTS always matches the faceplate finish.

Cutout Specification A115.1 (with Slight Jamb Modification)

Standards:

Class A, 3 Hour fire rated single door / frame configuration

WH recognized for UL10C, Fire Tests of Door Assemblies

UBC 7-2, Uniform building Code

CAN4 S104, Standard Method for Fire Tests of Door Assemblies

NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies

NOTE: WH fire listing is void when using fail safe action.

UL LISTED - 1034 Burglary Resistant

ANSI/BHMA A156.5 - 1992 - 4-7/8" x 1-1/4" Fits

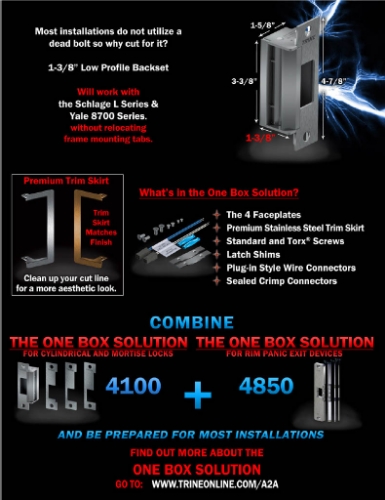

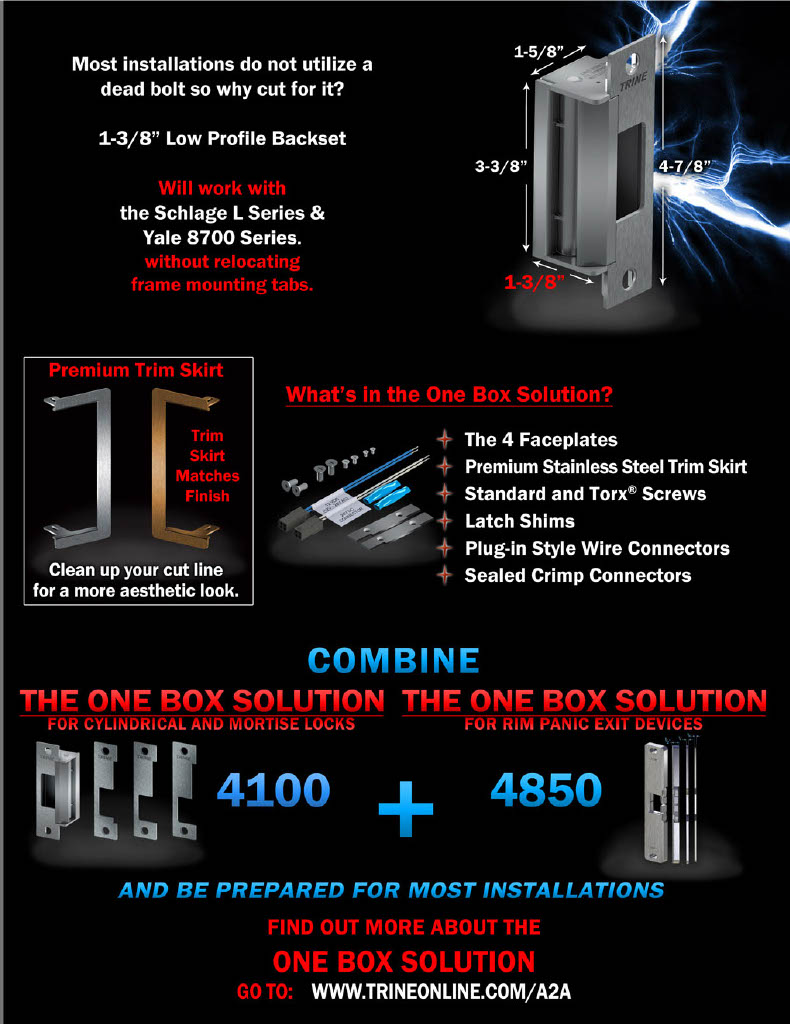

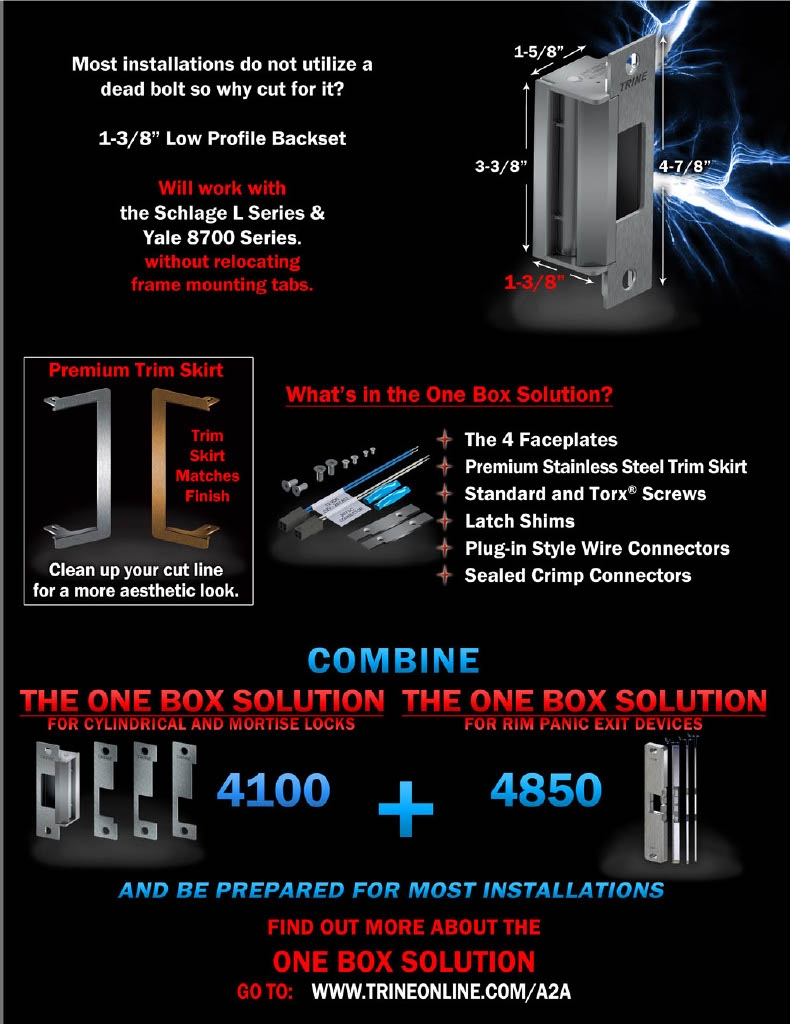

In The Box:

- The four faceplates

- 2 Premium stainless steel trim skirts

- Standard and Torx® screws

- Latch shims

- Plug-in style wire connectors

- Sealed crimp connectors

Model:4100US10, 4100US10B, 4100US3, 4100US32,4100-US32D,4100US4, 4100RSUS10, 4100RSUS10B, 4100RSUS3, 4100RSUS32,4100RSUS32D,4100RSUS4
