Trine 007C 12DC Electric Strike - 4-7/8" x 1-1/4" - Satin Chrome

Trine 007C 12DC Electric Strike - 4-7/8" x 1-1/4"*- Satin Chrome*

FEATURES:

For use in new or replacement installations in wood jambs.

Use with locksets having up to 3/4" throw, based on 1/8" door gap.

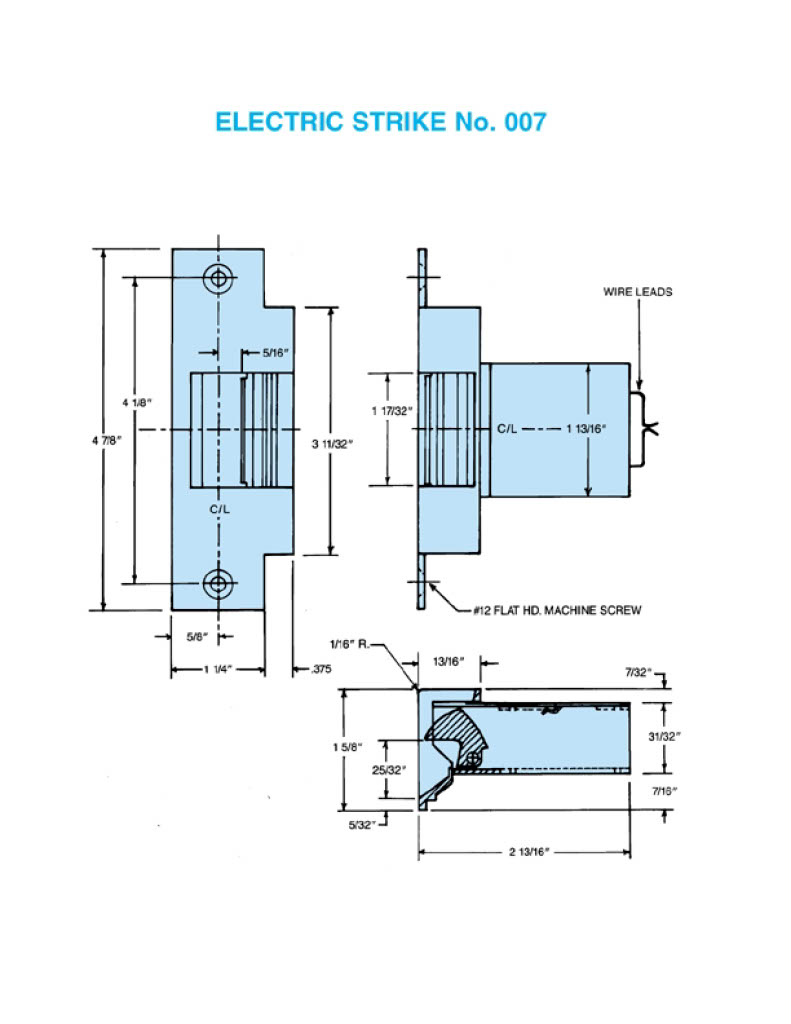

Face Plate 4-7/8" x 1-1/4"

Mortise Backset 2-7/8"

Cavity Depth 5/8"

Cavity Width 3/4"

Cavity Height 1-1/2

Durability - 500,000 Life Cycles

Holding Force - 1000 lbs

Only 1 Moving Part in Locking Mechanism

Non-Handed Operation

Heavy Duty Latch Spring

Model: 007C12DC, 007C8-16AC/4-6DC, 007C24DC, 00724AC
