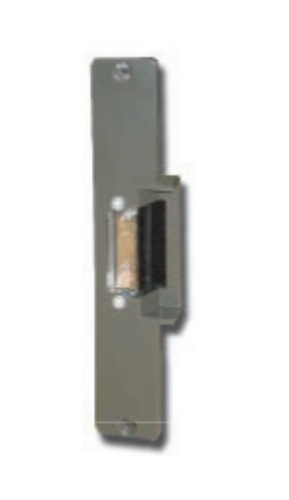

Trine 2002 Adjustable Face Plate - 7-15/16" x 1-7/16 - Aluminum Powder Coated

Trine 2002 Adjustable Face Plate - 7-15/16" x 1-7/16 - Aluminum Powder Coated

Features & Description:

For use in new or replacement, aluminum or hollow, metal jamb installations. Auxiliary lever ramps for use with locksets containing dead-locking levers. Use with latch bolts having up to 5/8" throw, based on 1/8" door gap.

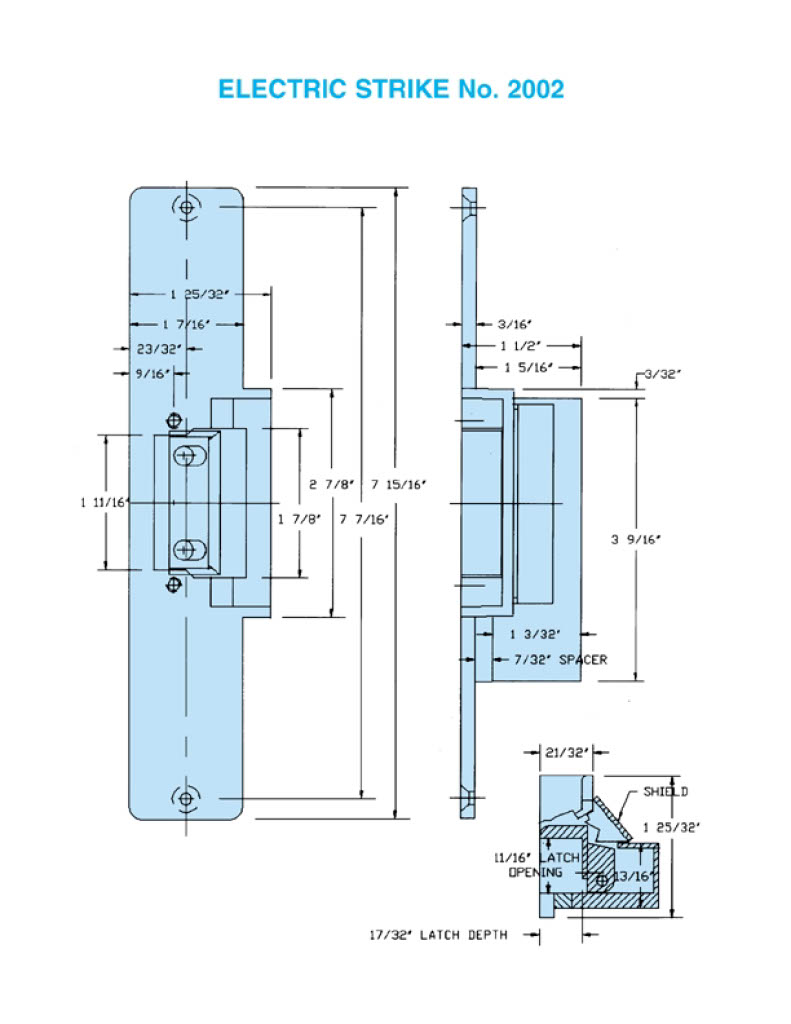

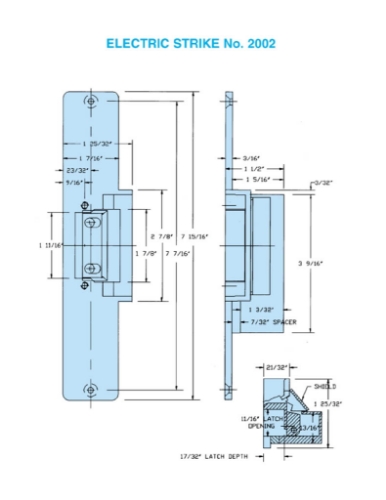

Face Plate 7-15/16" x 1-7/16

Auxiliary Ramp Height 2-7/8"

Mortise Backset 1-9/16"

Cavity Depth 9/16"

Cavity Width 5/8"

Cavity Height 1-11/16"

Allows adjustment for wider latch bolts & poorly aligned doors & locksets

1/8" Horizontal Latch Adjustment

Releases Under Slight Door Preload

Life Cycles - 500,000

Holding Force - 900 lbs

Solid Cast Latch - Chrome Plated

Non-Handed Operation

Model: 200224DC, 200216-24AC/DC, 20026-14AC/DC
