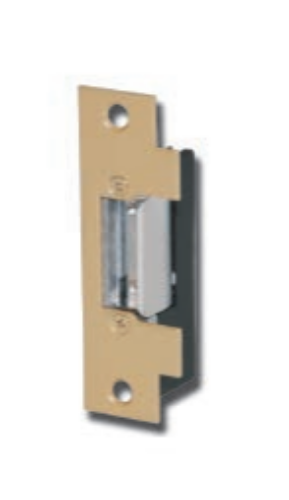

Trine 2007 Adjustable Face Plate - 4-7/8" x 1-1/4" - Brass Powder Coated

Trine 2007 Adjustable Face Plate - 4-7/8" x 1-1/4" - Brass Powder Coated

Features & Description:

For use in new or replacement installations in metal jambs.

Fits a standard 4-7/8" ANSI prep with little jamb modifi cation. Use with locksets having up to 5/8" throw, based on 1/8" door gap.

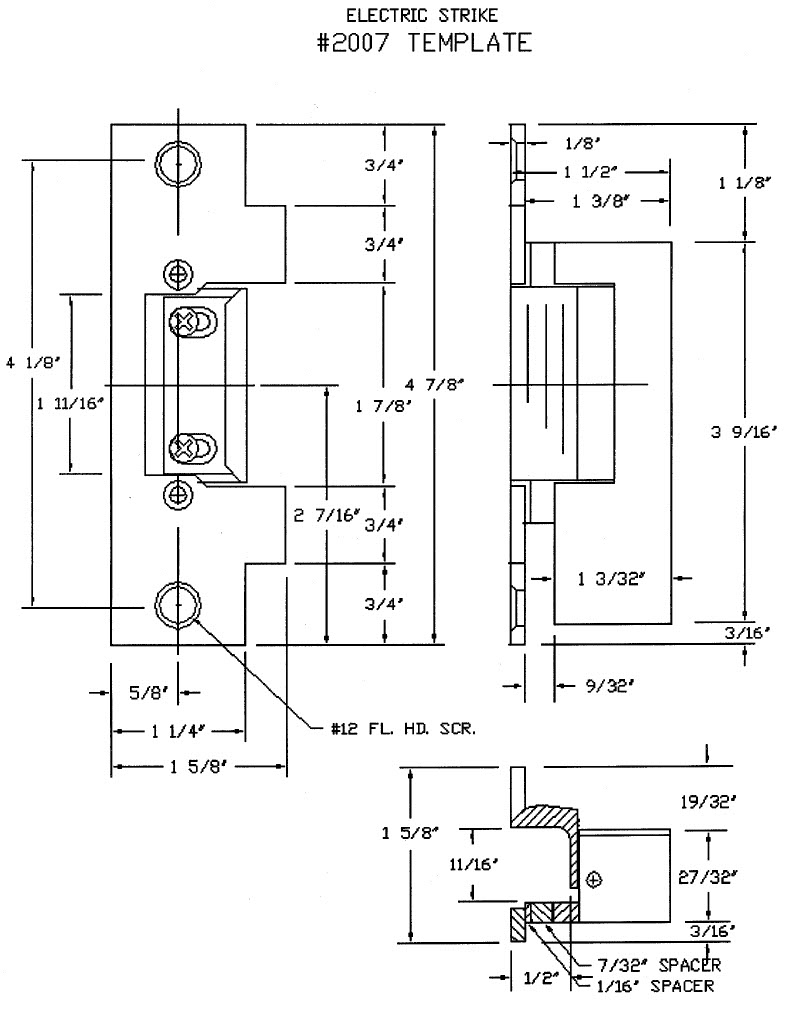

Steel Face Plate 4-7/8" x 1-1/4"

Narrow Style Face Plate

Mortise Backset 1-9/16"

Cavity Depth 9/16"

Cavity Width 5/8"

Cavity Height 1-11/16

Allows adjustment for wider latch bolts & poorly aligned doors & locksets

1/8" Horizontal Latch Adjustment

Releases Under Slight Door Preload

Life Cycles - 500,000

Holding Force - 900 lbs

Solid Cast Latch - Chrome Plated

Non-Handed Operation

Model: 200712DC, 200716-24AC/DC, 200724DC
