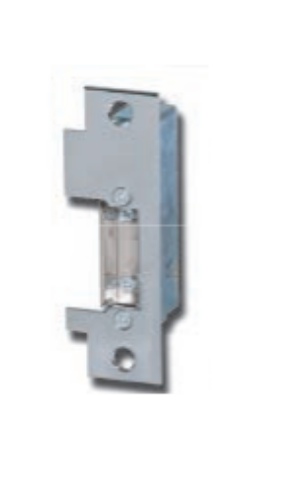

Trine 2009 Adjustable Face Plate - 4-7/8" x 1-1/4" - Brass Powder Coated

Trine 2009 Adjustable Face Plate - 4-7/8" x 1-1/4" - Brass Powder Coated

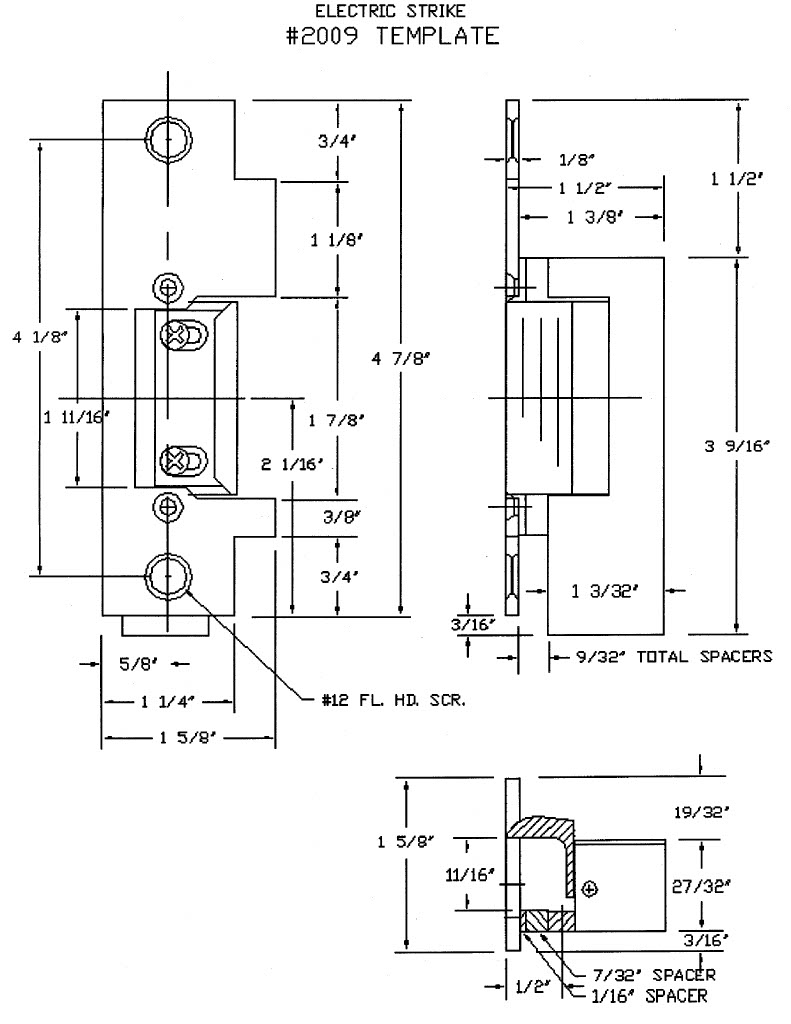

Centerline of the latch is 3/8" below ANSI centerline for offset applications.

Features & Description:

For use in new or replacement installations in metal jambs.

Fits a standard 4-7/8" ANSI prep with little jamb modification.

Use with locksets having up to 5/8" throw, based on 1/8" door gap.

Steel Face Plate 4-7/8" x 1-1/4"

Narrow Style Face Plate

Mortise Backset 1-9/16"

Cavity Depth 9/16"

Cavity Width 5/8"

Cavity Height 1-11/16"

Allows adjustment for wider latch bolts & poorly aligned doors & locksets

1/8" Horizontal Latch Adjustment

Releases Under Slight Door Preload

Life Cycles - 500,000

Holding Force - 900 lbs

Solid Cast Latch - Chrome Plated

Non-Handed Operation

Model: 200912DC, 200916-24AC/DC
